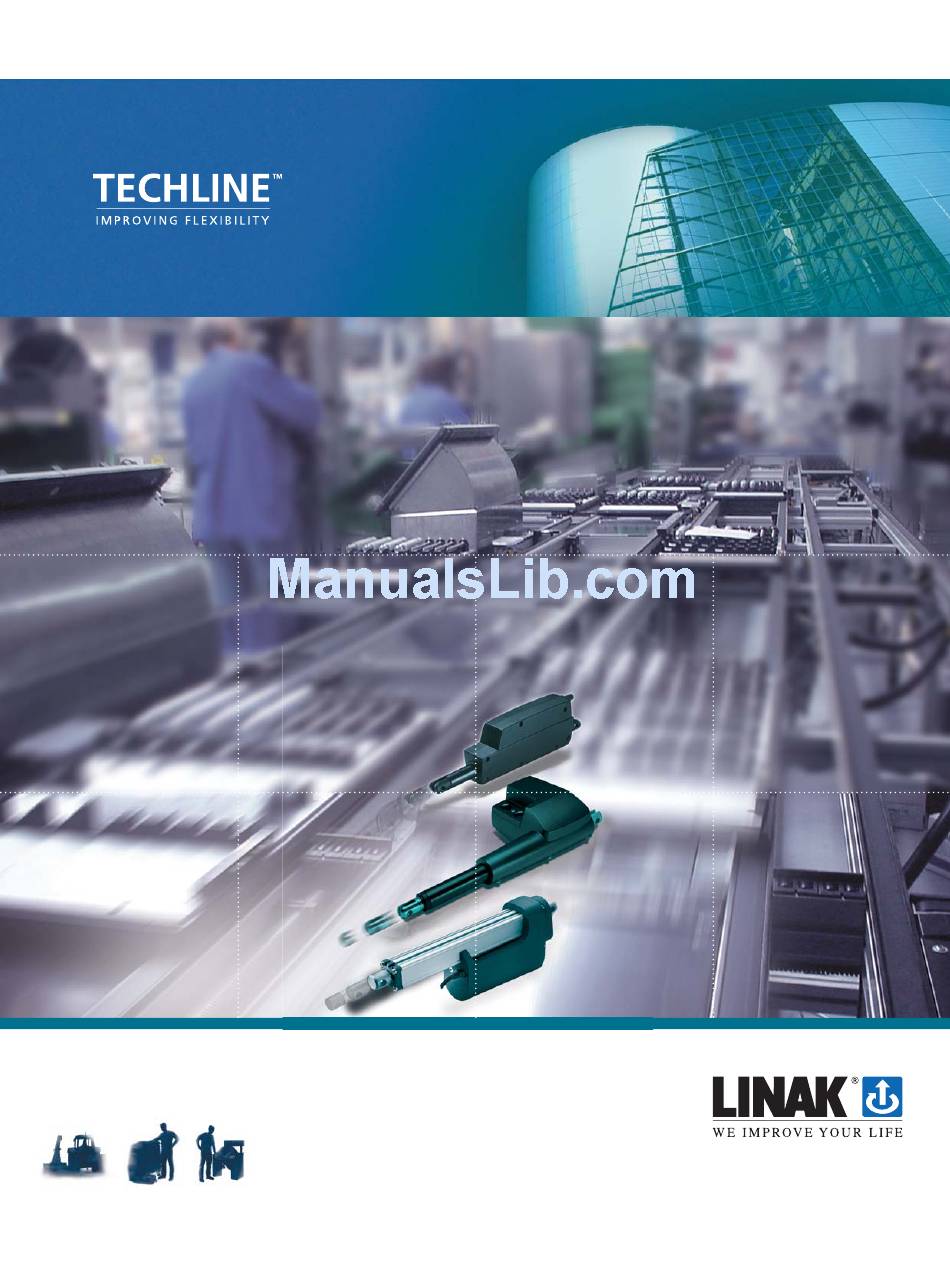

- Page 1 L I N E A R A C T U A T O R T E C H N O L O G Y T H E C O M P L E T E T E C H L I N E ®...
- Page 2 T H E C O M P L E T E T E C H L I N E ™ LINAK actuator systems ease the load and make work easier. The remarkably wide product range offers something for any imaginable type of movement.
- Page 3 MOBILE, MACHINERY & WORKSPACE, and BUILDING & CONSTRUCTION LINAK has a wide experience in integrating actuators into applications and developing solutions, which fit discretely into work processes - so do not hesitate to contact us.
- Page 4 A C T U A T O R S Thrust: Speed: Stroke length: Duty Cycle: Voltage: End-stop: Facts: • Compact and lightweight • Reinforced glass fibre Thrust: Max. 6,000 N Options: Speed: 10-52 mm/s • Powerful strong motor Stroke length: 50-500 mm •...
- Page 5 LA36 switches The LA36 actuator is the newest actuator from LINAK for harsh conditions and is the most robust actuator in our programme. The flexibility and integrated electronics makes it suitable for a vast number of different applications Scope of application: •...
- Page 6 A C T U A T O R S Thrust: Max. 400 N Options: Speed: 13-37 mm/s • IP 65 housing Stroke length: 50-200 mm • Different back fixtures Duty Cycle: • Various piston rod eyes Voltage: 12/24 V DC End-stop: LS/LSD or current cut-off...
- Page 7 L I N E A R A C T U A T O R T E C H N O L O G Y Thrust: Max. 6,000 N Options: Speed: 3-33 mm/s • Reed switch Stroke length: 50-500 mm • Hall effect sensor Duty Cycle: •...
- Page 8 L I F T I N G C O L U M N S Thrust: Max. 1500 N Options: Speed: 43 mm/s • Mounting bracket Stroke length: 500 mm Duty Cycle: • Hall sensors to ensure memory Voltage: 12/24 V DC •...
- Page 9 • Factory automation small installation dimensions. The • Ergonomic work spaces telescopic column is compatible • Workstations with LINAK’s control units and can operate individually or in parallel. The LP2 lifting column is the ideal choice for height adjustment of surface examination tables, work benches as well as for industrial applications.
- Page 10 C O N T R O L S The controls are the units used when you want the LINAK system to perform a movement. They determine whether the control box makes the actuator move in or out. There are more variants of LINAK handsets, Foot Switches, Desk Panels, and Attendant Control Panels.
-
Page 11: C O N T R O L B O X E S
The control box is the heart of the system linking the various external parts (actuators, controls, and ACP), which can be connected. In recent years LINAK has intro- duced several different control boxes, from small control boxes suitable for powering one or two actuators to sophisticated control boxes with microprocessors suitable for powering up to six actuators. - Page 12 ) “The specifi ed product is a third party product that is produced by third party and distributed by LINAK as a supplement to LINAK´s existing product range. It is the responsibility of the product user to determine the suitability of the product for a specifi...
- Page 13 L I N E A R A C T U A T O R T E C H N O L O G Y R O B U S T When LINAK develops and produces products quality is the keyword for our employees. LINAK constantly strives to improve the quality and to reduce the risk of faults, which contributes to the fact that our customers experience LINAK as a supplier of high-quality products.
- Page 14 ® Linear actuators from LINAK make it possible to easily and economi- cally adjust various functions in a wide number of applications. LINAK TECHLINE™ solutions can improve several facets of your company’s working environment including ergonomic lifting, cost-effective auto- mation, and ventilation.
- Page 15 Linear actuators from LINAK can be used for thousands of different applications. Especially in mobile equipment it has big advantages compared to other linear movements. Please contact the LINAK sales force who has a wide experience in integrating our products into different...
- Page 16 • USA tus of said information on its products. LINAK U.S. Inc. While LINAK uses its best efforts to ful- North and South American Headquarters fil orders, LINAK cannot, for the same Phone: +1 502 253 5595 . Fax: +1 502 253 5596 reasons as mentioned above, guarantee E-mail: info@linak-us.com .
