Actuator with endstop signals and relative positioning - Single hall
I/O specifications:
Input/Output
Description
Brown
Blue
Red
Black
Green
Yellow
Violet
White
Specification
The actuator can be equipped with Single
Hall that gives a relative positioning feed-
back signal when the actuator moves.
See connection diagram,
fig. 6, page 26
12 or 24VDC (+/-)
12V ± 20%
24V ± 10%
Under normal conditions:
12V, max. 26A depending on load
24V, max. 13A depending on load
Signal power supply (+)
12-24VDC
Signal power supply GND (-)
Endstop signal out
Endstop signal in
Single Hall output (PNP)
Movement per Single Hall pulse:
LA371C: Actuator = 0.1372 mm per count
Frequency:
Frequency is 14-26 Hz on Single Hall
output depending on load.
Overvoltage on the motor can result in
shorter pulses.

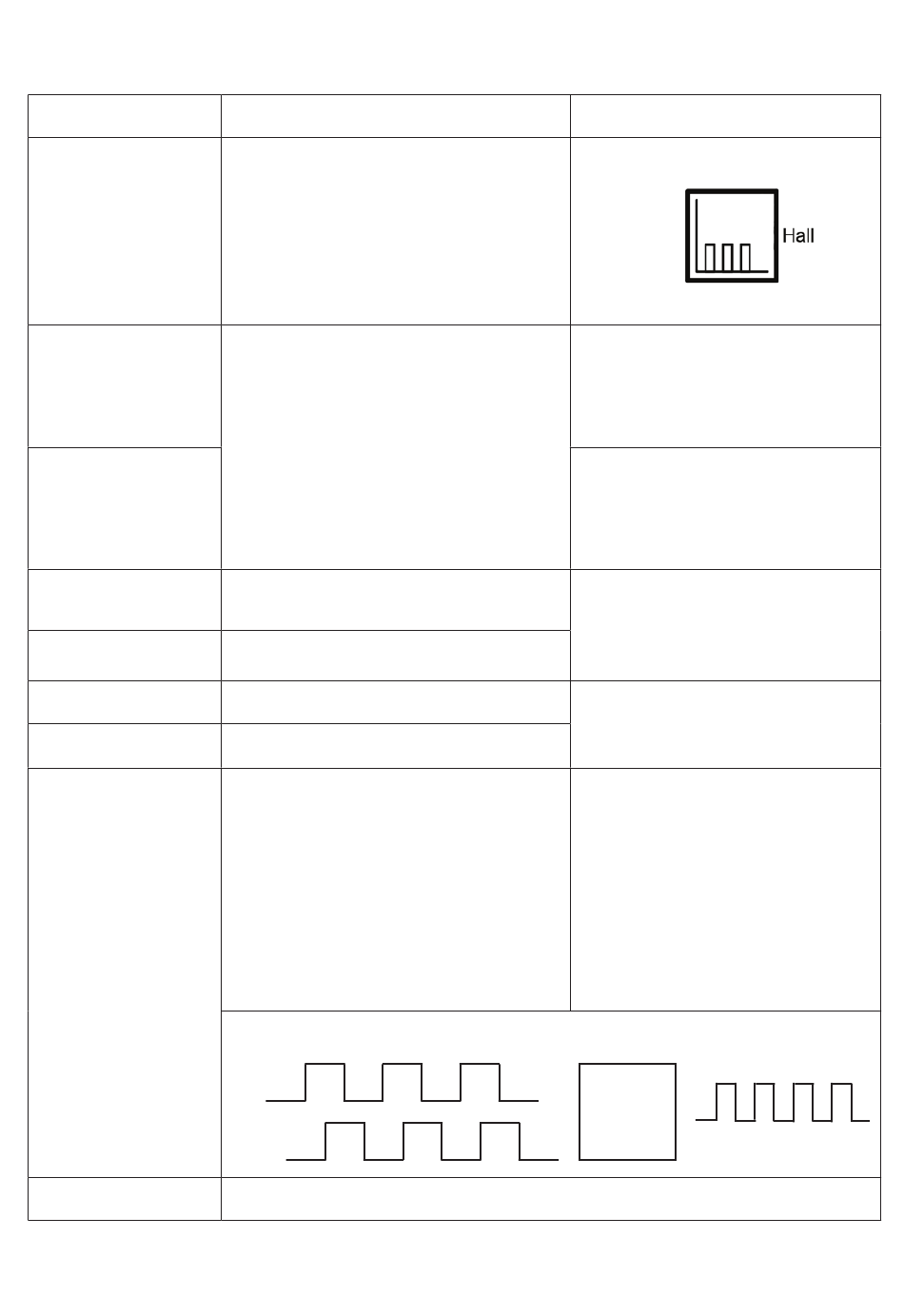

Diagram of Single Hall:
Hall A
Hall B
Not to be connected
Comments
To extend actuator:
Connect Brown to positive
To retract actuator:
Connect Brown to negative
To extend actuator:
Connect Blue to negative
To retract actuator:
Connect Blue to positive
Current consumption:
Max. 40mA, also when the actuator
is not running
Output voltage min. V
Source current max. 100mA
NOT potential free
Output voltage min. V
Max. current output: 12mA
Max. 680nF
N.B. For more precise measurements,
please contact
LINAK A/S.
Low frequency with a high load.
Higher frequency with no load.
Input
Page 26 of 80
IN
IN
Single Hall output
Micro -
Processor
- 2V
- 2V
Fig. 6.1
