Actuator with endstop signals and relative positioning - Dual hall

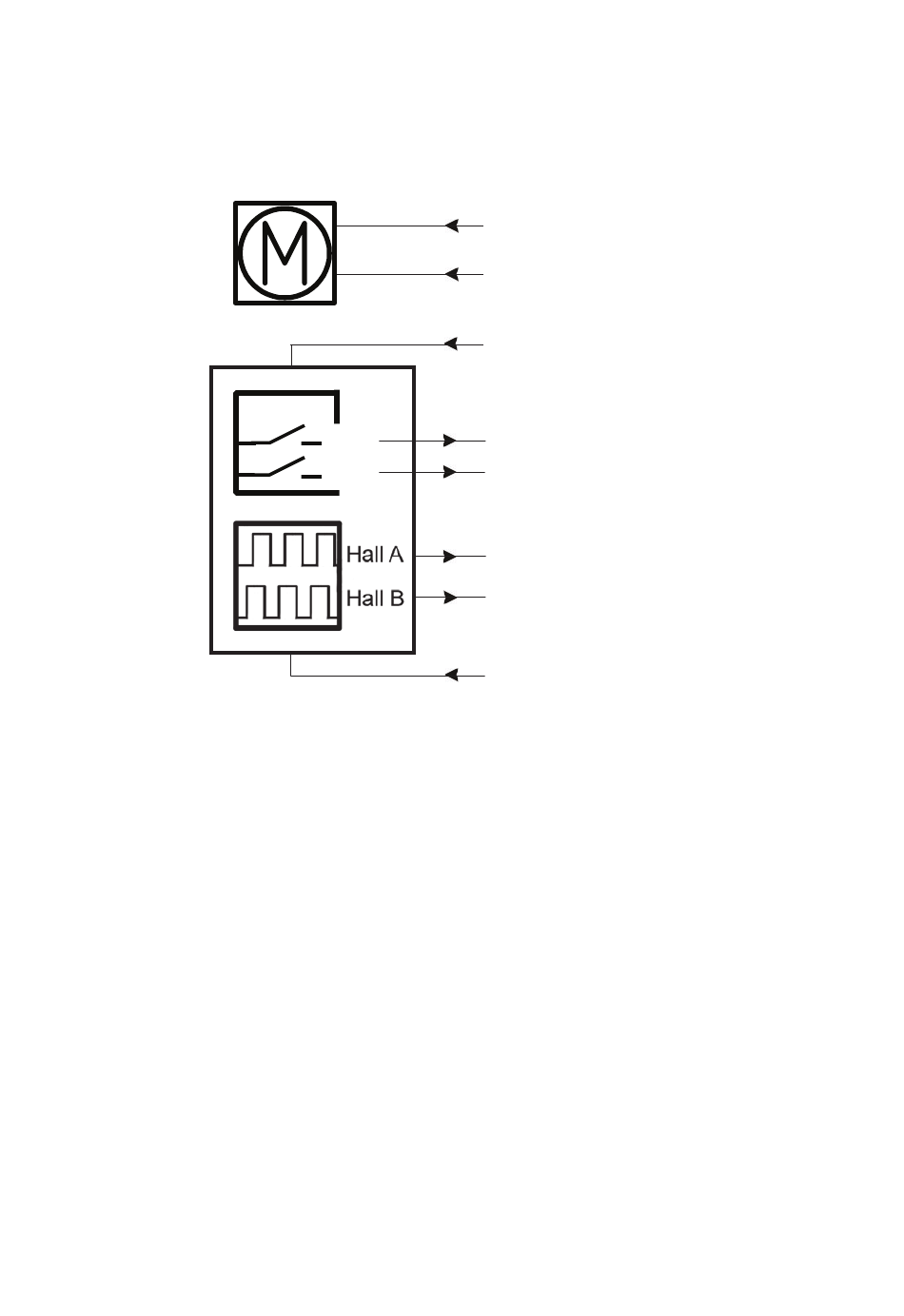

Connection diagram:
Fig. 4: 37xxxx+2Hxxxxxx
*YELLOW/GREEN: Endstop signals out are NOT potential free! (See I/O Specifications, page 17)
If you wish to use the endstop signals, you will have to keep power on the brown, blue, red and black wires,
otherwise the signal will be lost.
BROWN
BLUE
+
RED
IN VIOLET*
OUT WHITE*
YELLOW
GREEN
BLACK
-
