System Monitoring for Parallel

If one of the actuators have one of the following error conditions, the actuator will immediately STOP:

• H-Bridge fault

• Out of the temperature range (High duty cycle protection)

• Overcurrent (Current cut-off if one or all actuators go in mechanical block)

• SMPS fault

• EOS fault switch

• Hall sensor failure

• Position lost

• Overvoltage (43V DC)

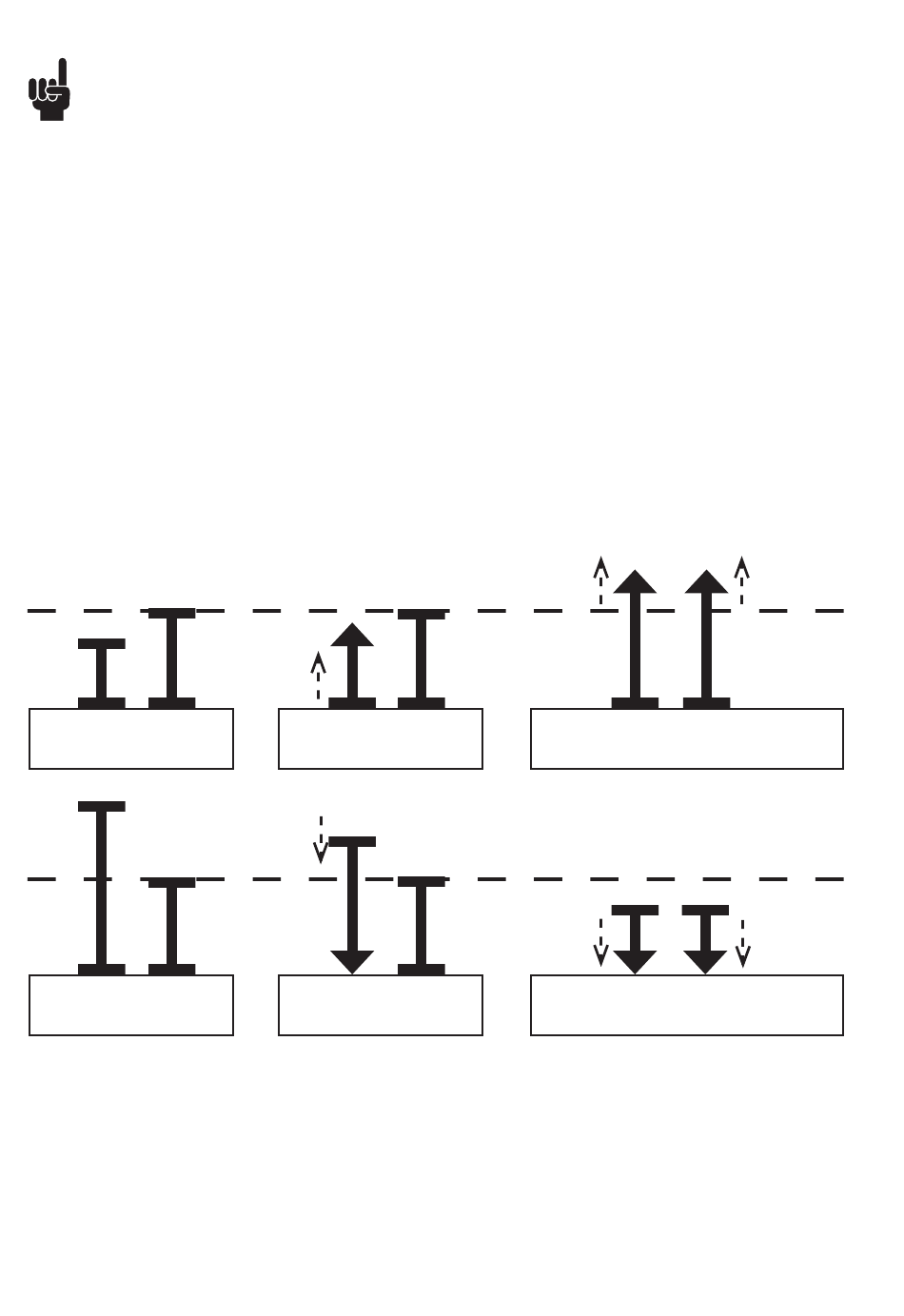

If the actuators are not in parallel when starting up, the next movement will run in the following manner:

Start position

Running outwards

Running inwards

Page 52 of 80

When completely aligned, the

parallel run continues outwards

When completely aligned, the

parallel run continues inwards
