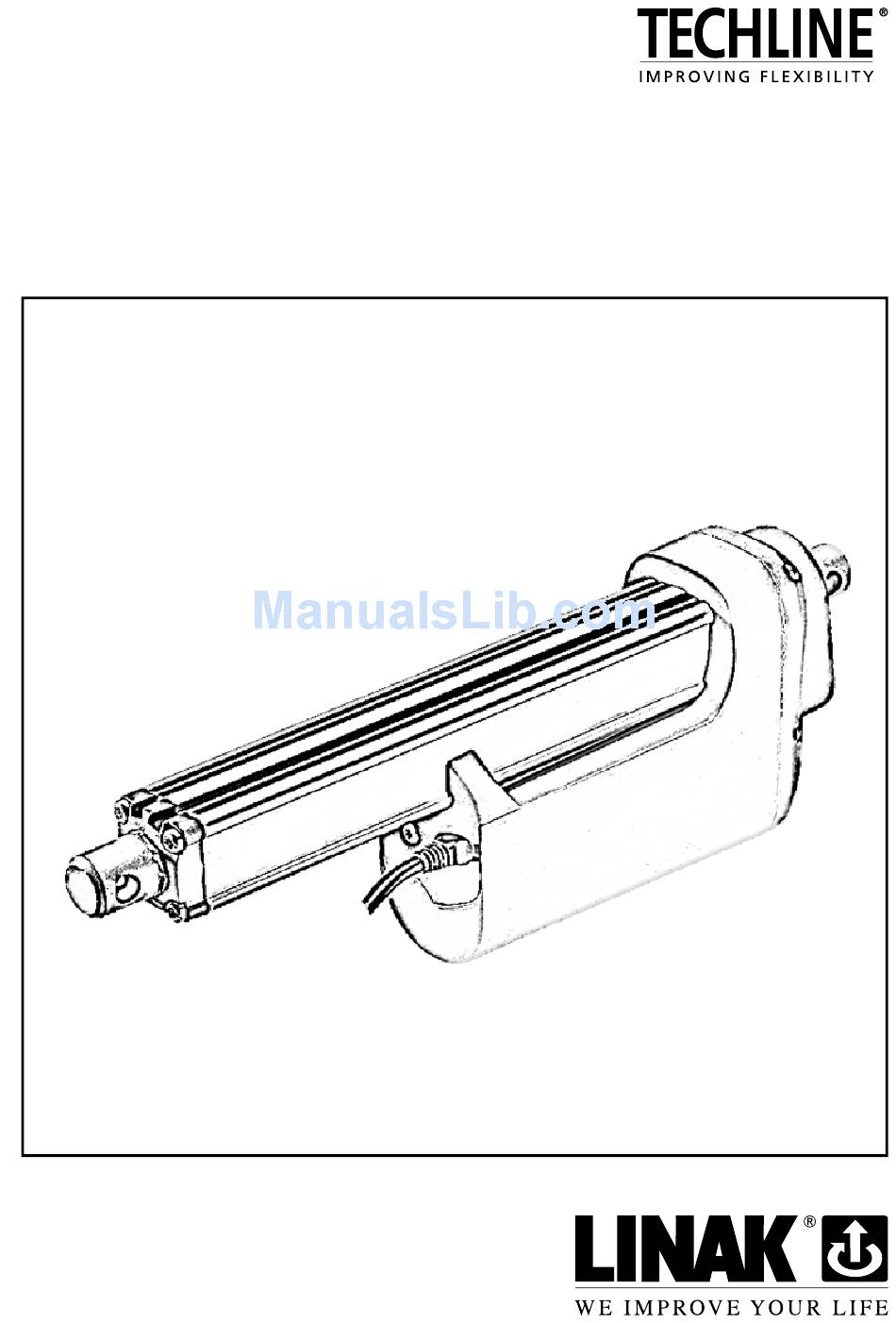

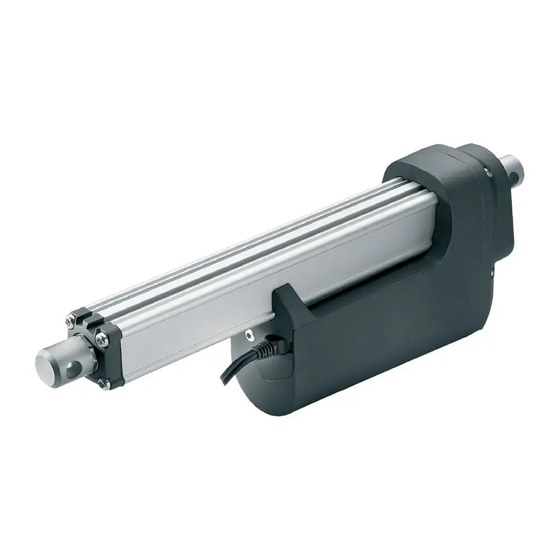

U S E R M A N U A L
LA36 ACTUATOR
To learn more about LINAK, please visit:
W W W . L I N A K . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTUATOR LA36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Linak ACTUATOR LA36

  • Page 1 U S E R M A N U A L LA36 ACTUATOR To learn more about LINAK, please visit: W W W . L I N A K . C O M...
  • Page 3: Table Of Contents

    Contents Preface ... 4 Safety instructions ... 5 Declarations of conformity ... 6 Misc. on the TECHLINE ® actuator system Warranty ... 8 Maintenance ... 8 Maintenance of spherical eyes ... 8 Specifi cations ... 9 Mounting guidelines ...10 Applications hints ...11 Manual hand crank ...11 Electrical installation Motor connection ...12...
  • Page 4: Preface

    We are also constantly improving our products to meet customer requirements. This user manual will tell you how to install, use, and maintain your LINAK LA36 actuator. We are sure that the LA36 actuator will give you a problem-free operation. Before our products leave the factory they undergo full function and quality testing.
  • Page 5: Safety Instructions

    Safety instructions...
  • Page 6: Important Information

    Important information Information about the actuators is described under the following two headings: Warning! Failing to follow these instructions can cause accidents resulting in serious personal injury. Failing to follow these instructions can result in the actuator suffering damage or being ruined.
  • Page 8: Misc. On The Techline Actuator System Warranty

    (see label). LINAK’s warranty is only valid in so far as the equipment has been used and main- tained correctly and has not been tampered with. Furthermore, the actuator must not be exposed to violent treatment.
  • Page 9: Specifi Cations

    Specifications Motor: Motor protection: Cable: Gear ratio: Slip clutch: Brake: Hand crank: Housing: Spindle part: Temperature range: End play: Weather protection: BUS actuators only 24V - please see the installation guide. ** Special control cabels for BUS actuator - please see the installation guide. Permanent magnet motor 12, 24, or 36V * Automatic protection resets thermal overload (Option) Motor: 2 x 14 AWG PVC cable...
  • Page 10: Mounting Guidelines

    It is the application manufacturer’s responsibility to incorporate a suitable safety arrangement, which will prevent personal injury from occurring, if the actuator should fail. Warning! LINAK’s actuators are not constructed for use within the following fields: • Offshore installations • Aeroplanes and other aircraft •...
  • Page 11: Applications Hints

    Application hints The actuator is weatherproof for use in outdoor applications. The actuator can be washed down with a high-pressure washer, but it should not be used under water. Optionally the actuator is overload protected with a slip clutch. The clutch will slip when the load exceeds approx.
  • Page 12: Electrical Installation

    Electrical installation Be aware of BUS actuator - please see the separate installation guide. Motor connection Wiring: The actuator direction (forward, reverse) is controlled with a doublethrow switch with the centre postion “off”. Actuation To extend the actuator, connect brown to positive and blue to negative. To retract the actuator, connect blue to positive and brown to negative.
  • Page 13 Connections diagram: For 36xxxxx2Pxxxxxx and 36xxxxx20xxxxxx: Connections diagram: For 36xxxxx2Hxxxxxx Power cable Note: If you wish to use Signal cable the end-stop signals, you will have to keep power on the brown and blue wires, otherwise the signal will be lost. Power cable Signal cable...
  • Page 14 Connections diagram: For 36xxxxx3xxxxBxx + 36xxxxx40xxxBxx: Power cable Signal cable Connections diagram: For 36xxxxx1/2Bxxxx Power cable Signal cable...
  • Page 15: Connection Of La36 With Cs16

    Connection of the LA36 with the CS16 CS16-4-24 9 10 11 12 R GR O R = RED . O = ORANGE . GR = GREEN Troubleshooting Symptom No motor sound or movement of piston rod Excessive electricity consumption Motor runs but spindle does not move Actuator cannot lift full load No signal from potentiometer...
  • Page 16: Mounting Of Cables

    • Slide the cover onto the actuator The torque of the cover screw is +/- 0.3 Nm Note: When changing the cables on a LINAK actuator, it is important that this is done carefully, in order to protect the plugs and pins. Please be sure that the plug is in the right location and fully pressed in before the cable lid is mounted.
  • Page 17: Drawing

    DRAWING APPENDIX ® TECHLINE LA36: LA36 02= Turned 90˚ 01= Standard S T R O K E <= 3 0 0 = 2 00 + S TR O K E S T R O K E => 3 0 0 = 2 5 0 + S T R O K E...
  • Page 18: Built-In Dimensions

    “A” and “B” / to the centre of the hole “C” and “D” / to the centre of the hole Back fi xture option “6” LINAK P/N: 0361247 “1” / to the centre of the hole Stroke > 300 Stroke <= 300 Stroke >...
  • Page 19: Main Groups Of Disposal

    Product Metal scrap LA36 LINAK’s products may be disposed of, possibly by dividing them into different waste groups for recycling or combustion. We recommend that our product is disassembled as much as possible at the disposal and that you try to recycle it. As examples of main groups within sorting...
  • Page 20: Linak Application Policy

    LINAK shall be responsible solely that the LINAK products comply with the specifi cations set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specifi c LINAK product can be used for the application...
  • Page 24: Addresses

    LINAK cannot guarantee the correct and actual status of said information on its products. While LINAK uses its best efforts to fulfi l orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK...
