Parallel manual service mode

With the parallel manual service mode it is possible to drive one or more parallel actuators separately, using the
red and black wire from each actuator.
Please follow this procedure to manually extend/retract the parallel actuator(s):

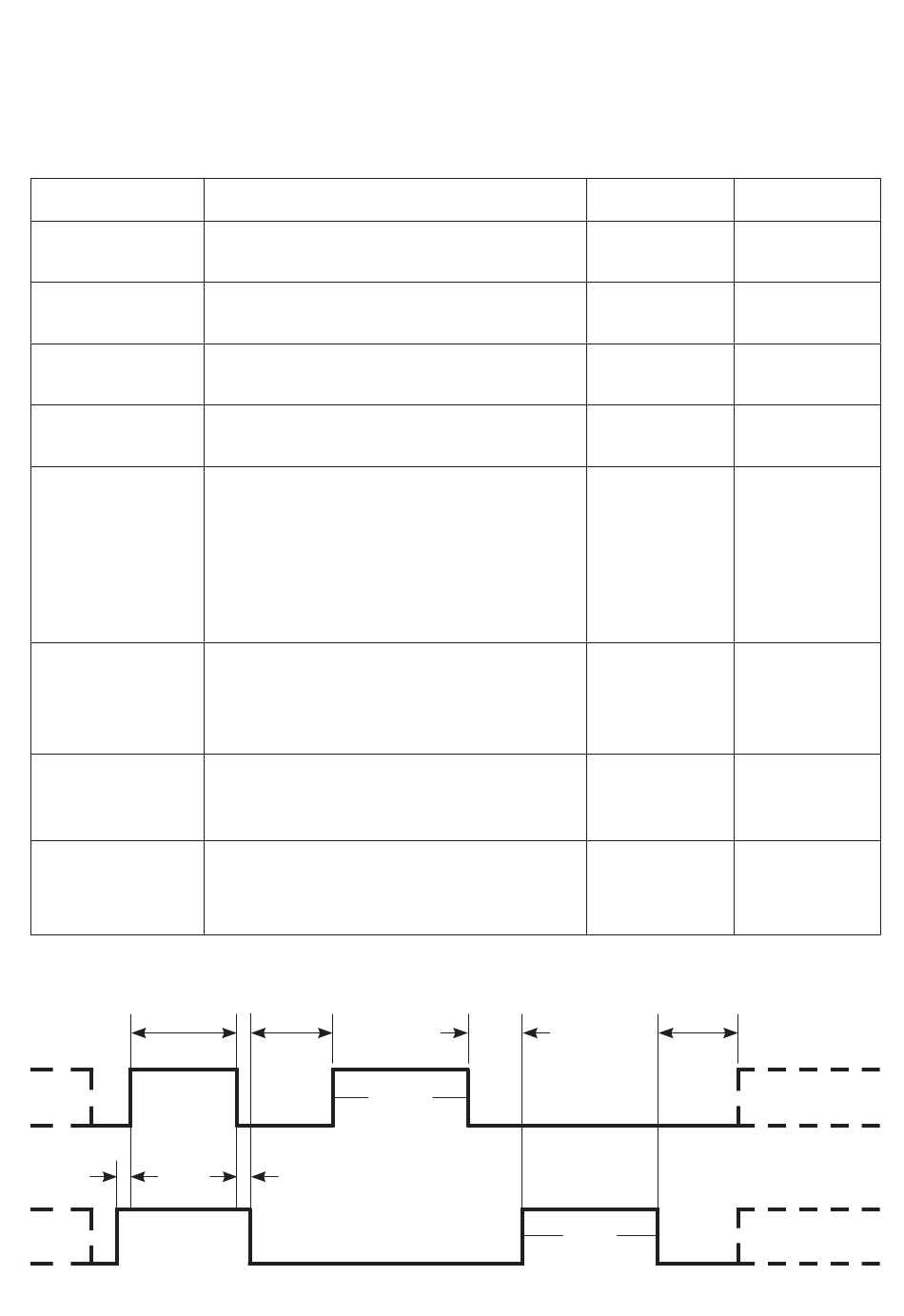

First step
Hold
Difference
Release
Extend/Retract
Interval
End
Back to parallel
mode
Hold
Difference
Procedure
Disconnect the Purple and White wires
between all actuators
Put power on the Red and Black wires for
10-30 seconds
The Red and Black wires must all be connected
to the power supply within 0.5 seconds
Disconnect all wires and wait 0.5-2 seconds
before the next step
Now choose either to extend or retract the
actuator:
To extend the actuator: Connect only the Red
wire(s) to the power supply
To retract the actuator: Connect only the Black
wire(s) to the power supply
Switch between running in/out as much as
needed, without exceeding the 2.0 seconds
interval between disconnecting/connecting the
Red and Black wires
To exit the parallel manual mode, diconnect
the Red and Black wires for more than 2.0
seconds
Before running in standard parallel mode,
reconnect all Purple and White wires
Release
Run out
Difference
Interval
Run in
Page 53 of 80
Min. Max.
- -
10 sec. 30 sec.
0 sec. 0.5 sec.
0.5 sec. 2 sec.
- -
- 2 sec.
2 sec. -
- -
End
