Actuator with endstop signal output

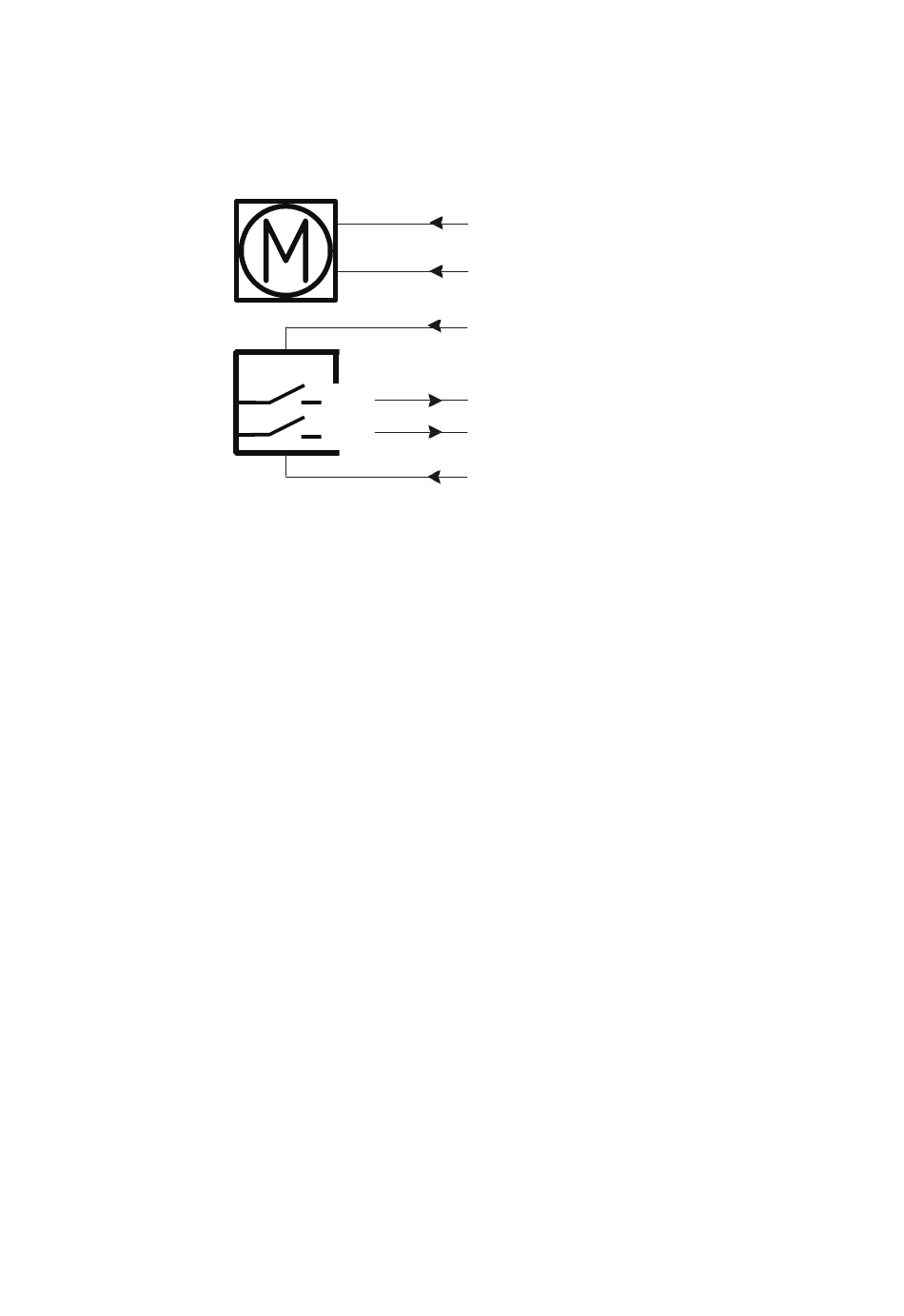

Connection diagram:
Fig. 2 : 37xxxx+20xxxxxx
*YELLOW/GREEN: Endstop signals out are NOT potential free!
If you wish to use the endstop signals, you will have to keep power on the brown, blue, red and black wires,
otherwise the signal will be lost.
BROWN
BLUE
+
RED
YELLOW*
IN
OUT
GREEN*
BLACK
-
