Dok. art Combination Code
Titel:

LA37 ordering example

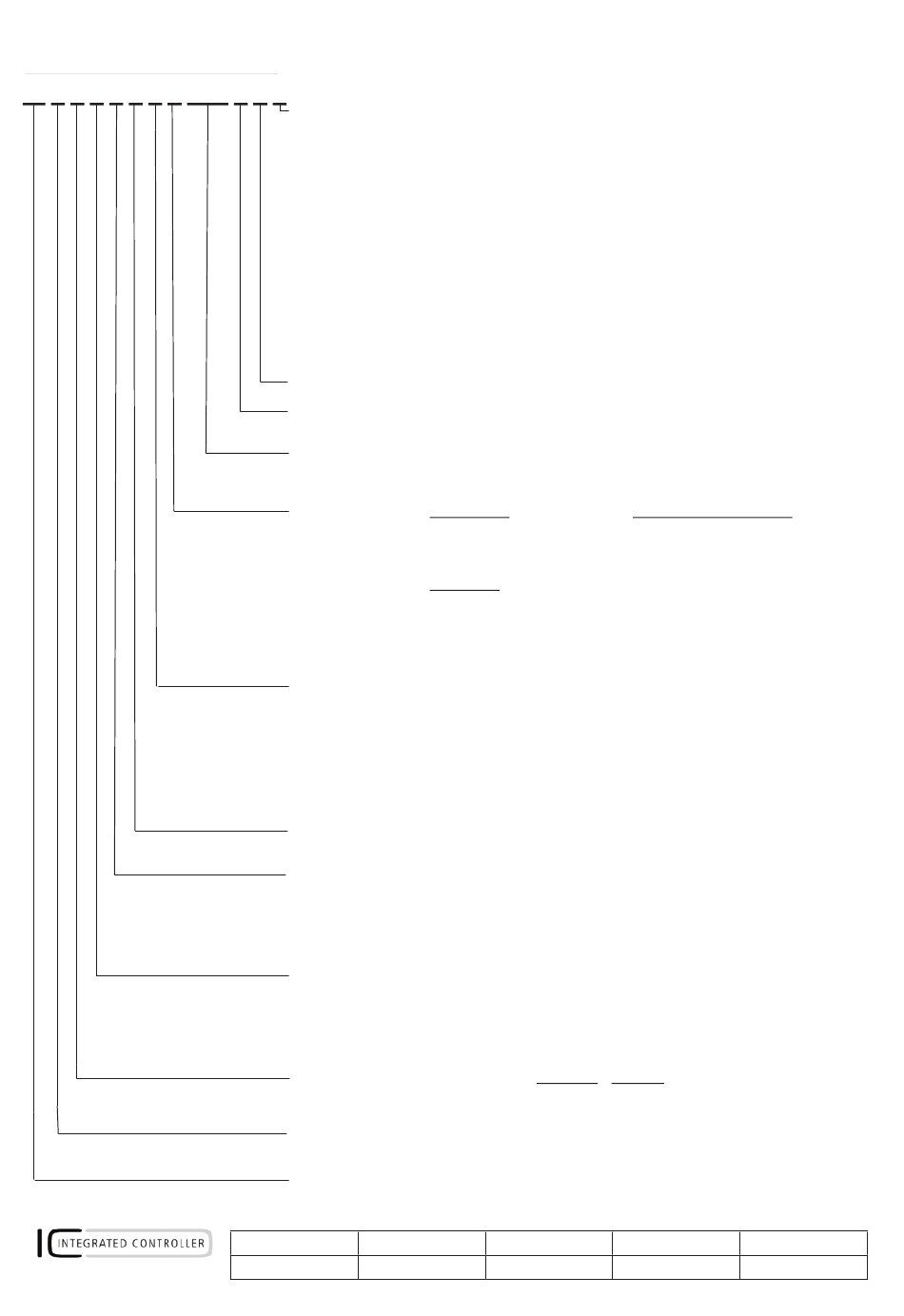

COMBINATION CODE NOS. LA37
37 0 0 0 0 + 0 0 0 0 0
*
LA37
0 0 0
CABLE:
IP-DEGREE:
MOTOR TYPE:
STROKE LENGTH:
FEEDBACK:
END STOP:
SAFETY NUT
PISTON ROD EYE:
BACK FIXTURE:
GEARBOX:
SPINDLE TYPE:
ACTUATOR TYPE:
IC options:
LA37 actuator:
Nr.:
Dato:
Sign.:
Rev.:
Side.:
0 = No cable
1 = 1,5 m power cable
2 = 5 m power cable
3 = 0,2 m power cable with AMP connector
4 = 1,5 m power and 1,5 signal
5 = 5 m power and 5 m signal
6 = 1,5 m Y-cable, power and signal in one
7 = 5 m power Cable + Data cable M12x1 (Only for Modbus)
8 = 5 m power and 5 m signal-UV resistant
9 = 5 m power Cable-UV resistant
A=1,5m, angled connector
B= 1,5m power + signal, angled connector
C= 5m power, angled connector
D = 5m power + signal, angled connector
2 = Standard (IP66)
1 = 12 V DC without clutch
2 = 24 V DC without clutch
XXX = mm 100mm - 600mm
500mm ; 750mm ; 999mm
Standard and IC:
0 = Standard (No feedback)
5 = PWM 10-90% (With Magnet)
6 = PWM 20-80% (With Magnet)
Only standard:
B = Analogue feedback 0 - 10V (With Magnet)
C = Analogue feedback 0.5 - 4.5V (With Magnet)
H = Dual Hall (With Magnet)
P = Potentiometer
K = Single hall (With Magnet)
1 = With limt switches
2 = With limt switches and end-stop signals
6 = Not used
7 = IC Basic
8 = IC Advanced
9 = Parallel
A = Modbus : See Chapter 5.12.2
B = LINBUS
C = CANBUS
+ = No Safety Nut
0 = Ball eye Ø 20H7
1 = Ball eye Ø 19,2 (3/4")
2 = Ø 16,2mm hole, for 16mm pin
3 = Ø 19,2mm hole, for 3/4" pin
4 = M16 X 1,5 male adapter
5 = M20 X 1,5 male adapter
0 = Ø30 mm (Trunnion mounting on outer tube)
1 = Ø 16,2 mm hole, for 16mm pin
2 = Ø 16,2 mm hole turned 90°, for 16mm pin
3 = Ø 19,2 mm hole, for 3/4" pin
4 = Ø 19,2 mm hole turned 90°, for 3/4" pin
5 = SPEC BACK FIXTURE Deger M20
2,5 mm pitch
C = Gear ratio 1 : 46 15.000 N
1 = 1-threaded acme spindle (2.5 mm pitch)
2 = 1-threaded acme spindle (8 mm pitch)
37 = LA37
IC LINbus
UM-41-03-068.xls
Page 73 of 80
UM-41-03-068
13-06-2013
B
(0367046-1500)
(0367046-5000)
(0367006)
(0367046-1500+0367049-1500)
(0367046-5000+0367049-5000)
(0367020)
(0367072 + 0367071-A)
(0367072)
- Standard back fixture mounting
- Trunnion mounting on outer tube
Only IC: With Magnet
D = Bus
1 = Single Hall
2 = Analogue feedback 0-10V
3 = Analogue feedback 0,5-4,5V
4 = Analogue feedback 4-20 mA
(Feedback Only 0,1,2)
0361568
0361571
0361387-A
0361393-A
(0361135-A LA36 ØJE)
0371044
0361559
0371019-A
0371019-A
0371040-A
0371040-A
0371247-A
8 mm pitch
10.000N
Modbus
Tra
13-06-2016
1/1
Parallel
