Actuator without feedback

Without feedback

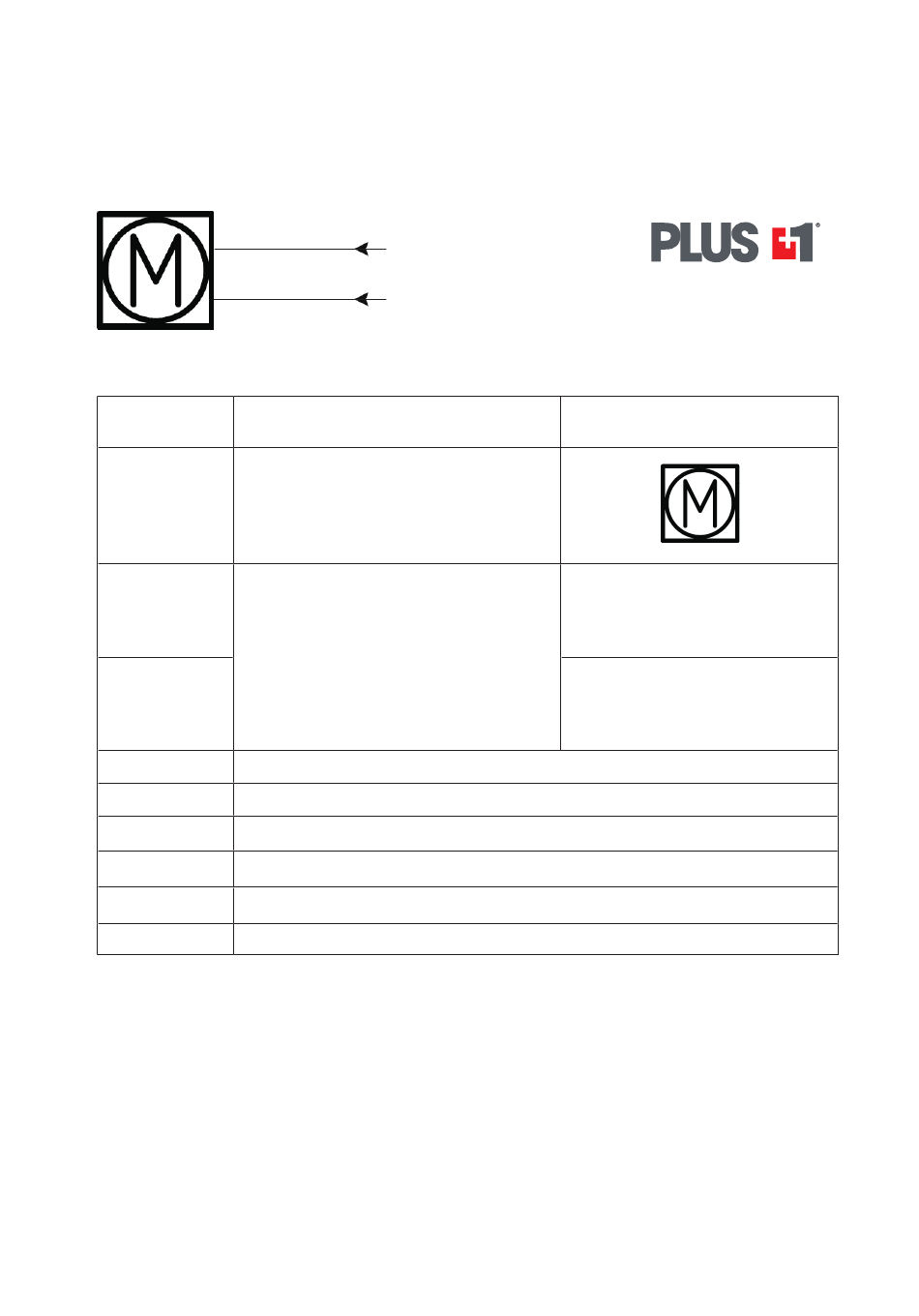

Connection diagram:
Fig. 1 : 33xxxxxx0000xxxx=xxxxxxxxxxxxx
33XXXXXX0000XXXX=XXXXXXXXXXXXX
Without feedback
I/O specifications:
Input/Output
Description Permanent magnetic DC motor.
Brown 12 or 24 VDC (+/-)
12 V ± 20 %
24V ± 10 %
Under normal conditions:
12 V, max.
Blue
24 V, max. 9 A depending
Red Not to be connected
Black Not to be connected
Green Not to be connected
Yellow Not to be connected
Violet Not to be connected
White Not to be connected
BROWN
BLUE
Specification
13 A depending on load
on load
Page 12 of 80
2019 © LINAK A/S
2
Powered by Danfoss
1
To extend actuator:
Connect Brown to positive
To retract actuator:
Connect Brown to negative
To extend actuator:
Connect Blue to negative
To retract actuator:
Connect Blue to positive
