Actuator with CAN bus:

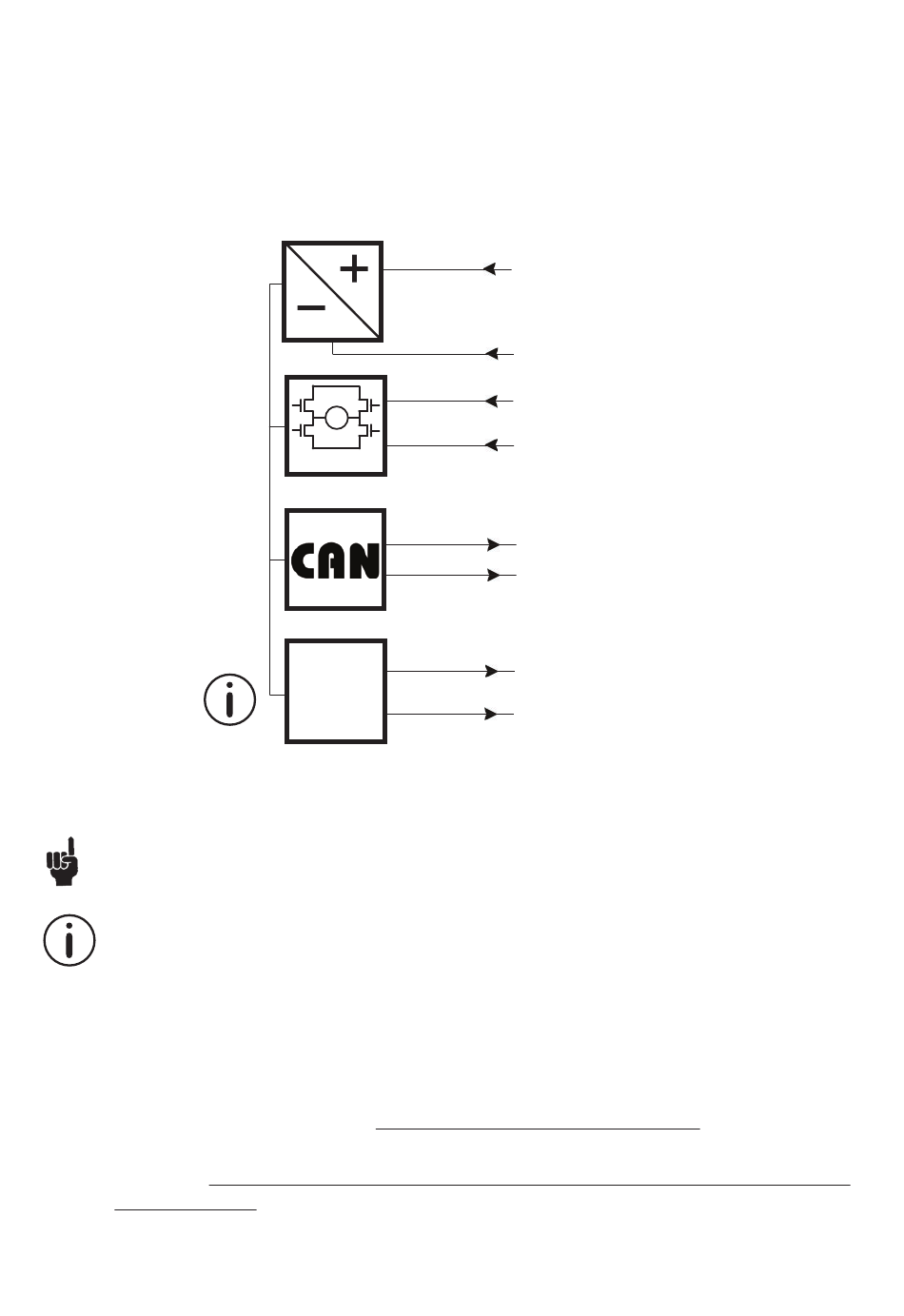

Connection diagram:
Fig. 14 : 36xxxxxCDxxxxxx
Please be aware that if the power supply is not properly connected, you might damage the actuator!
CAN bus actuators are produced and delivered in the inner endstop position.
In case the customer needs the CAN bus actuators to be delivered in another endstop position, this
will be possible by generating a special item number.
The BusLink software tool (v2.0 or later versions) is available for CAN bus and can be used for:
Diagnostics, manual run and configuration.
BusLink LIN is only intended for BusLink service interface.
Download BusLink software here: http://www.linak.com/techline/?id3=2363
For more information and easy set-up of BusLink, please follow this link to view the Quick Guide
for BusLink: https://cdn.linak.com/-/media/files/brochure-source/en/techline-buslink-quick-guide-
brochure-eng.ashx
INWARDS
M
OUTWARDS
H-Bridge
CAN_H
CAN_L
DATA
Service
interface
DATA GND
Page 54 of 80
BROWN
12/24V DC
BLUE
BLACK
RED
YELLOW
GREEN
VIOLET
WHITE
