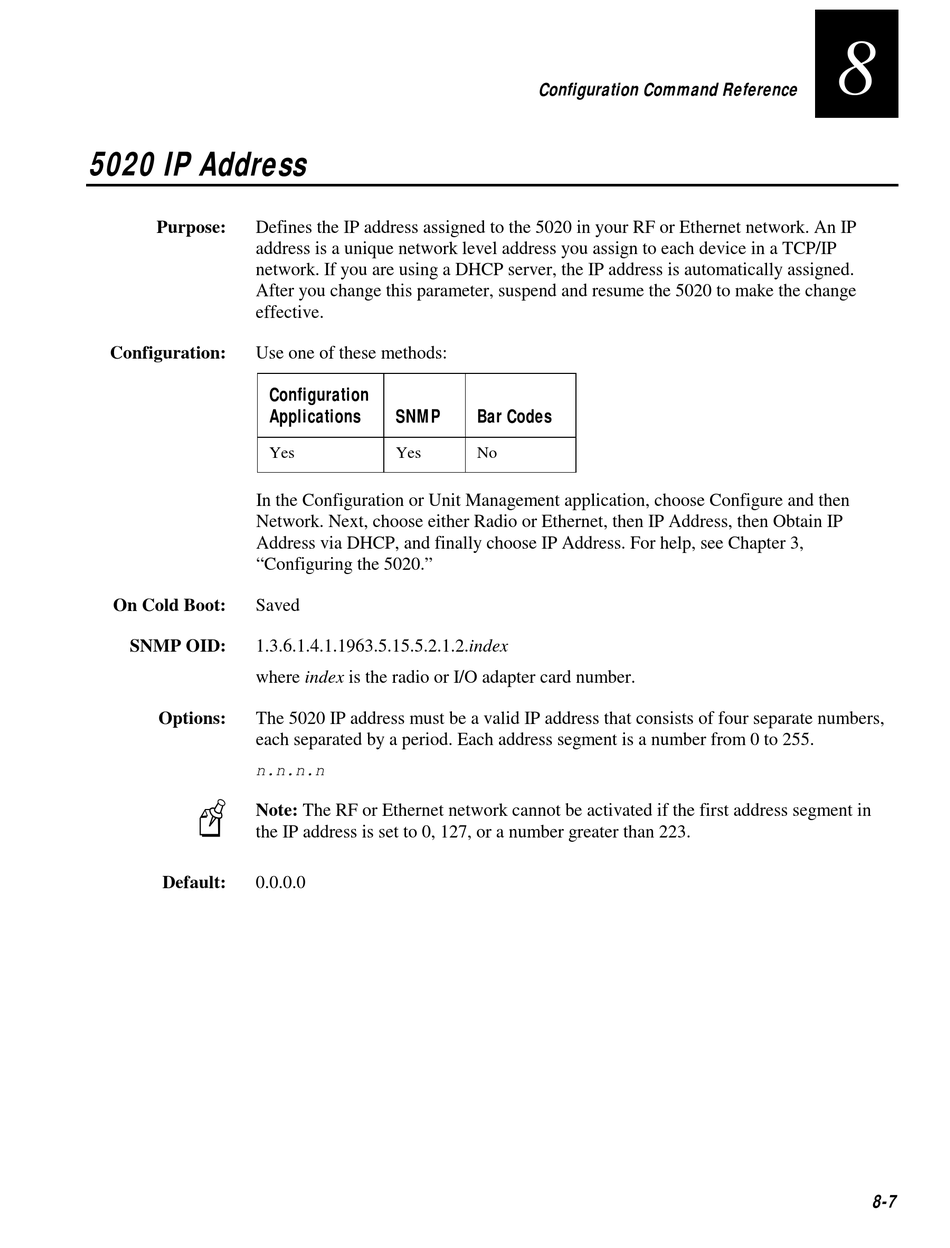

5020 IP Address

Purpose: Defines the IP address assigned to the 5020 in your RF or Ethernet network. An IP
address is a unique network level address you assign to each device in a TCP/IP
network. If you are using a DHCP server, the IP address is automatically assigned.
After you change this parameter, suspend and resume the 5020 to make the change
effective.
Configuration: Use one of these methods:
In the Configuration or Unit Management application, choose Configure and then
Network. Next, choose either Radio or Ethernet, then IP Address, then Obtain IP
Address via DHCP, and finally choose IP Address. For help, see Chapter 3,
"Configuring the 5020."
On Cold Boot: Saved
SNMP OID: 1.3.6.1.4.1.1963.5.15.5.2.1.2.index
where index is the radio or I/O adapter card number.
Options: The 5020 IP address must be a valid IP address that consists of four separate numbers,
each separated by a period. Each address segment is a number from 0 to 255.
n.n.n.n
Note: The RF or Ethernet network cannot be activated if the first address segment in
the IP address is set to 0, 127, or a number greater than 223.
Default: 0.0.0.0
Co d e 39
Nugg
Configuration
Applications SNMP
Yes Yes
Configuration Command Reference
Bar Codes
No
8
8-7
