REVEX
1PH from 30A to 40A

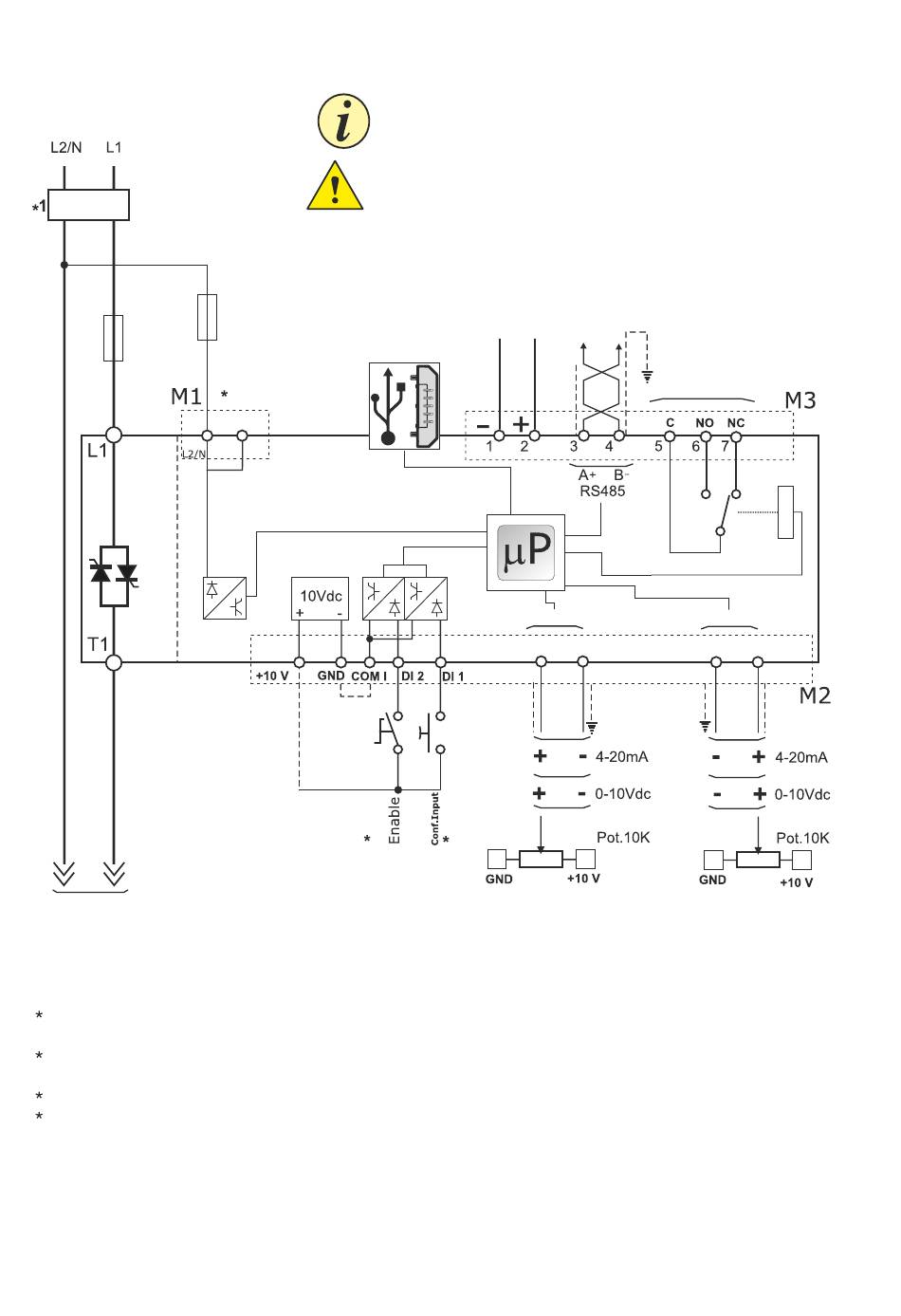

8.2 Schematic

BRANCH CIRCUIT
PROTECTION
SYNC.
Extra
Rapid
Fuse
SYNC.
TO LOAD
NOTE:
1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
The Fuse must be branch circuit protection.
2 Connect on the phase not controlled by the thyristor, L2/N on Schematic above.
Both terminals are connected internally and may be possible to use any one of them.
3 For SSR input connection follow next page schematic.
4 IMPORTANT! Starting Strategy (Enable):
1: Feed the unit with L1-L2/N power voltage supply
2: Feed the auxiliary supply
3: Close the Enable contact to start with the regulation
Indicative connection diagrams. Refer to local
regulations for proper system protection.
Warning: It is not possible to remove the M3 connector when
the unit is powered. Remove the AUX 24Vdc power supply
before extracting the M3 connector.
Extracting the M3 connector with the AUX 24Vdc power supply
connected to the M3 terminal could damage the unit
1A Fuse
MICRO USB 2.0
2
14 8 9 10
4
Auxiliary
Voltage 24Vdc
Analog Input 1
12 13
11
3
8 14
Analog Inp.1
Analog SetPoint
22
User's manual
Function:
Thermal
SC/HB/CL
Analog Input 2
13 15
8 14
Analog Inp.2
Reference
Ext.FeedBack
Ext.Current Limit
