6.21.1

RS-232 interface

The RS-232 transceiver MB1262/U12 supply is 3V3. The RS-232 interface is connected to the
STM32MP157xAA3 UART4 that is shared exclusively with the USB micro-B/ST-LINK v2-1 VCP as described in
Table
32.
Jumpers
MB1263/JP4
MB1263/JP5
1. Default configuration in bold
Table 33
RS-232 connector pinout MB1262/CN12
NC
RXD
TXD
UM2535 - Rev 1
Table 32.
HW configuration for the RS-232 interface
IO
JP4[1-2]
UART4_TX
JP4[2-3]
JP5[1-2]
UART4_RX
JP5[2-3]

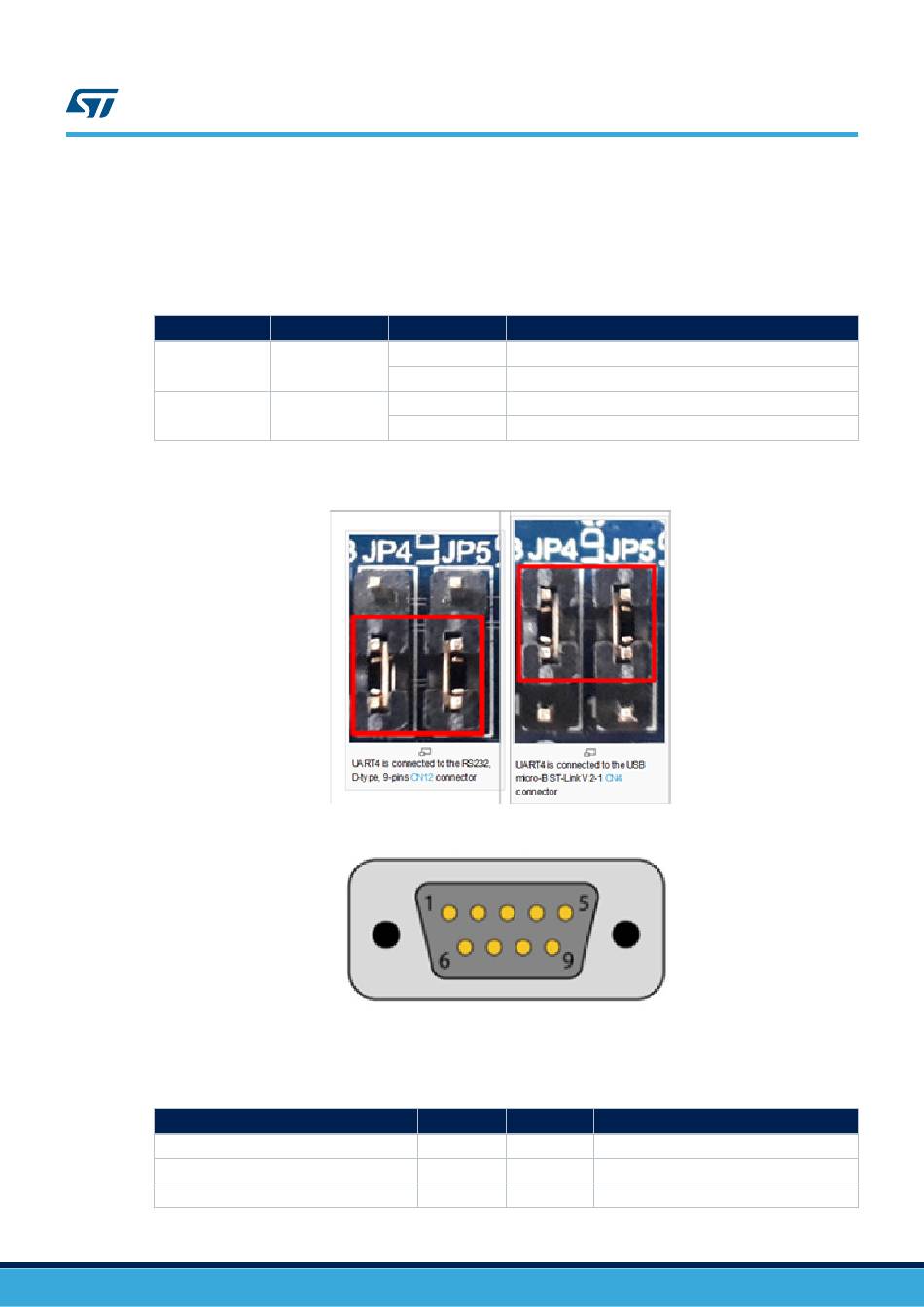

Figure 18.
HW configuration for the RS-232 interface
Figure 19.
RS-232 connector pinout MB1262/CN12
Table 33.
RS-232 connector pinout MB1262/CN12
Board function
Setting
connected to RS232 CN12
Connected to ST-Link V2-1 VCP RX
connected to RS232 CN12
Connected to ST-Link V2-1 VCP TX
Pin
Pin
1
6
2
7
3
8
(1)
Configuration
Board function
DSR
NC
CTS
UM2535
RS-232 port
page 32/55
