SmartRunner Matcher*
Vision Configurator Software
Designation
Load image file...
Open image folder
Copy image to clipboard Copies image to the clipboard
Save image

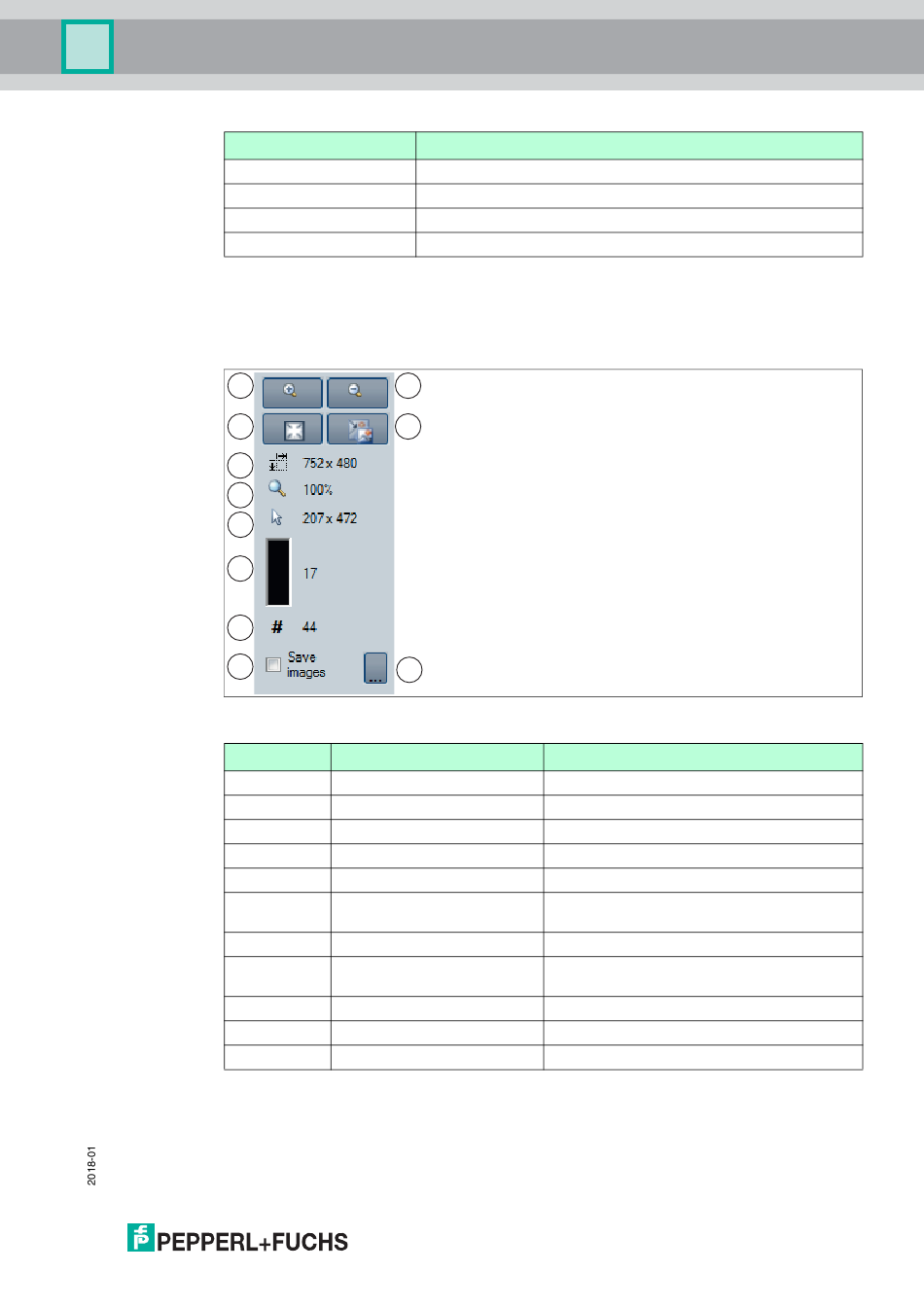

Image View - Toolbar
The toolbar is located on the left side under the Image View tab. There are some useful
functions in the toolbar which are used to further process recorded images. The following
functions are available to you.
1
3
5
6
7
8
9
10
Figure 5.12
Position
1
2
3
4
5
6
7
8
9
10
11
Function
Loads a sensor image. You can select the sensor image.
Opens the storage location
Saves the displayed sensor image
2
4
11
Toolbar
Designation
Magnifier +
Magnifier -
Fit to window
Original size
Size details
Zoom factor
Position details
Gray scale value details
Image counter
Save image
Select path
Function
Maximize image
Minimize image
Fit image size to the window
Set size of original image
Image size information field
Zoom factor information field. Zoom factor of
100 % is the original image size
Shows the position of the mouse cursor
Gray scale value details for the pixel indicated
by the mouse cursor
Displays the current image number
Saves image following transfer
Select path on the storage medium
29
