SmartRunner Matcher*
Vision Configurator Software
10
11
5.3

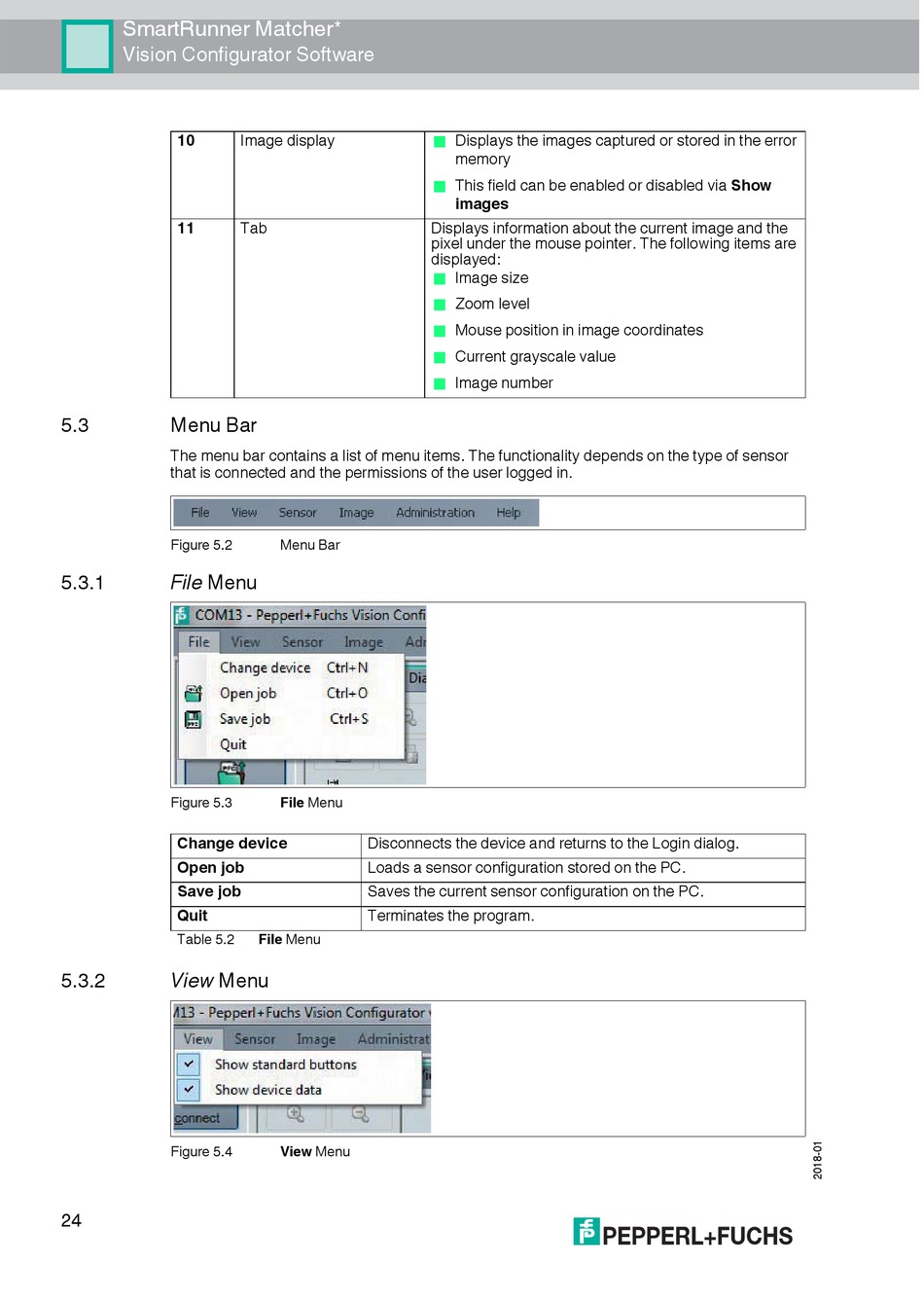

Menu Bar

The menu bar contains a list of menu items. The functionality depends on the type of sensor
that is connected and the permissions of the user logged in.
Figure 5.2
5.3.1

File Menu

Figure 5.3
Change device
Open job
Save job
Quit
Table 5.2
5.3.2

View Menu

Figure 5.4
24
Image display
Tab
Menu Bar
File Menu
Disconnects the device and returns to the Login dialog.
Loads a sensor configuration stored on the PC.
Saves the current sensor configuration on the PC.
Terminates the program.
File Menu
View Menu
Displays the images captured or stored in the error

memory
This field can be enabled or disabled via Show

images
Displays information about the current image and the
pixel under the mouse pointer. The following items are
displayed:
Image size

Zoom level

Mouse position in image coordinates

Current grayscale value

Image number

