SmartRunner Matcher*
Vision Configurator Software

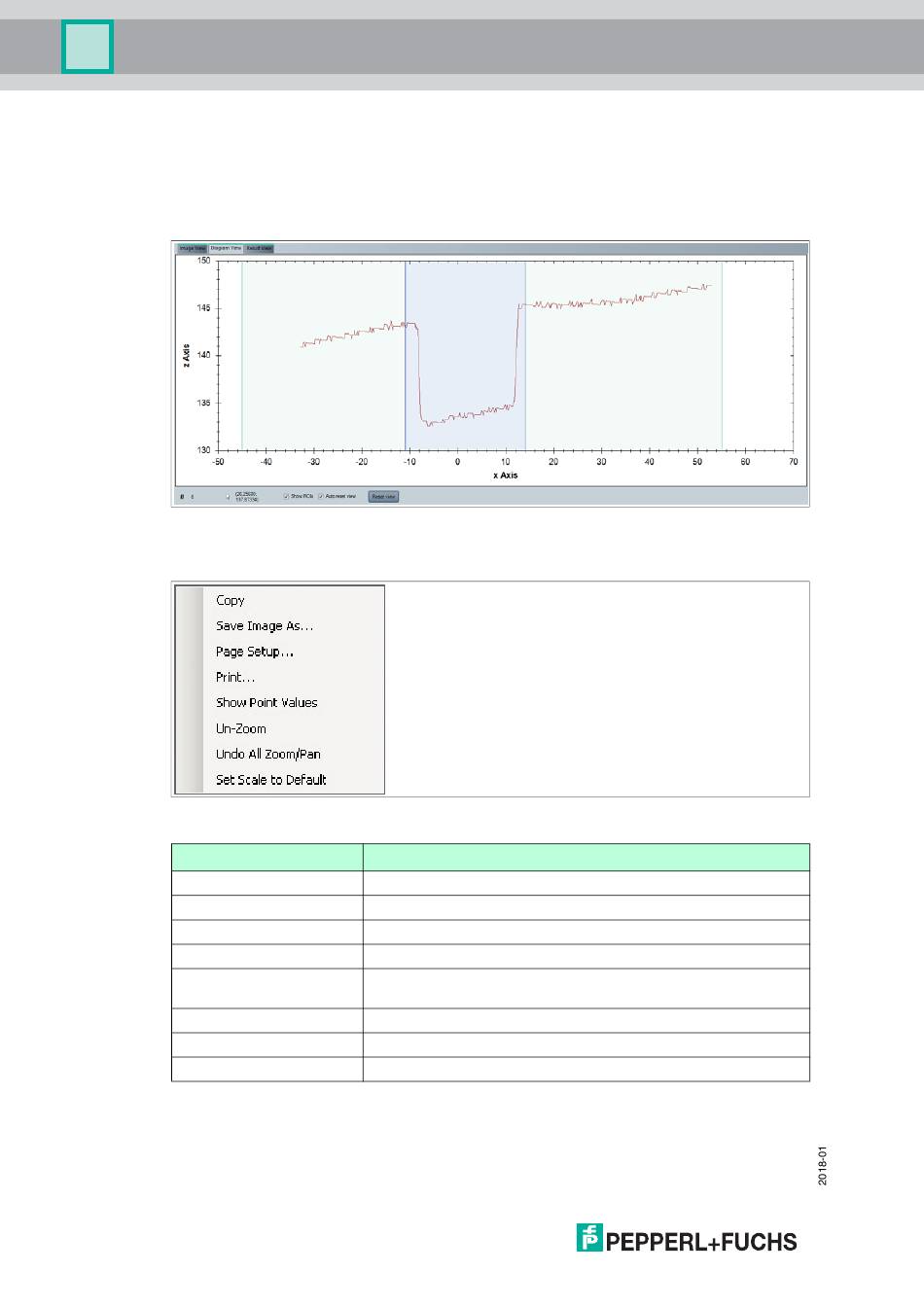

Diagram View
You can open the result data graphic under the Diagram View tab. To do this, you must click
on the Teach > Trigger laser > Get lines buttons in the toolbar. The graphic can be retrieved
using the Get lines button. In doing so, the Get lines button does not trigger new image
captures or evaluation. To do so, Trigger laser must be clicked beforehand.
Figure 5.13
The following context menu appears when you click the right mouse button over the graphic:
Figure 5.14
Designation
Copy
Save Image As...
Page Setup...
Print...
Show Point Values
Un-zoom
Undo All Zoom/Pan
Set Scale to Default
30
Diagram View
Diagram View image display context menu
Function
Copies diagram into working memory
Saves diagram to hard disk
Page setup for print function
Print diagram
Shows the values of the discrete line points in world coordinates
[mm] as tooltip.
Undo the last zoom action
Undo all the zoom and pan actions
Scales the measure using the line data
