SmartRunner Matcher*
Vision Configurator Software
5.5

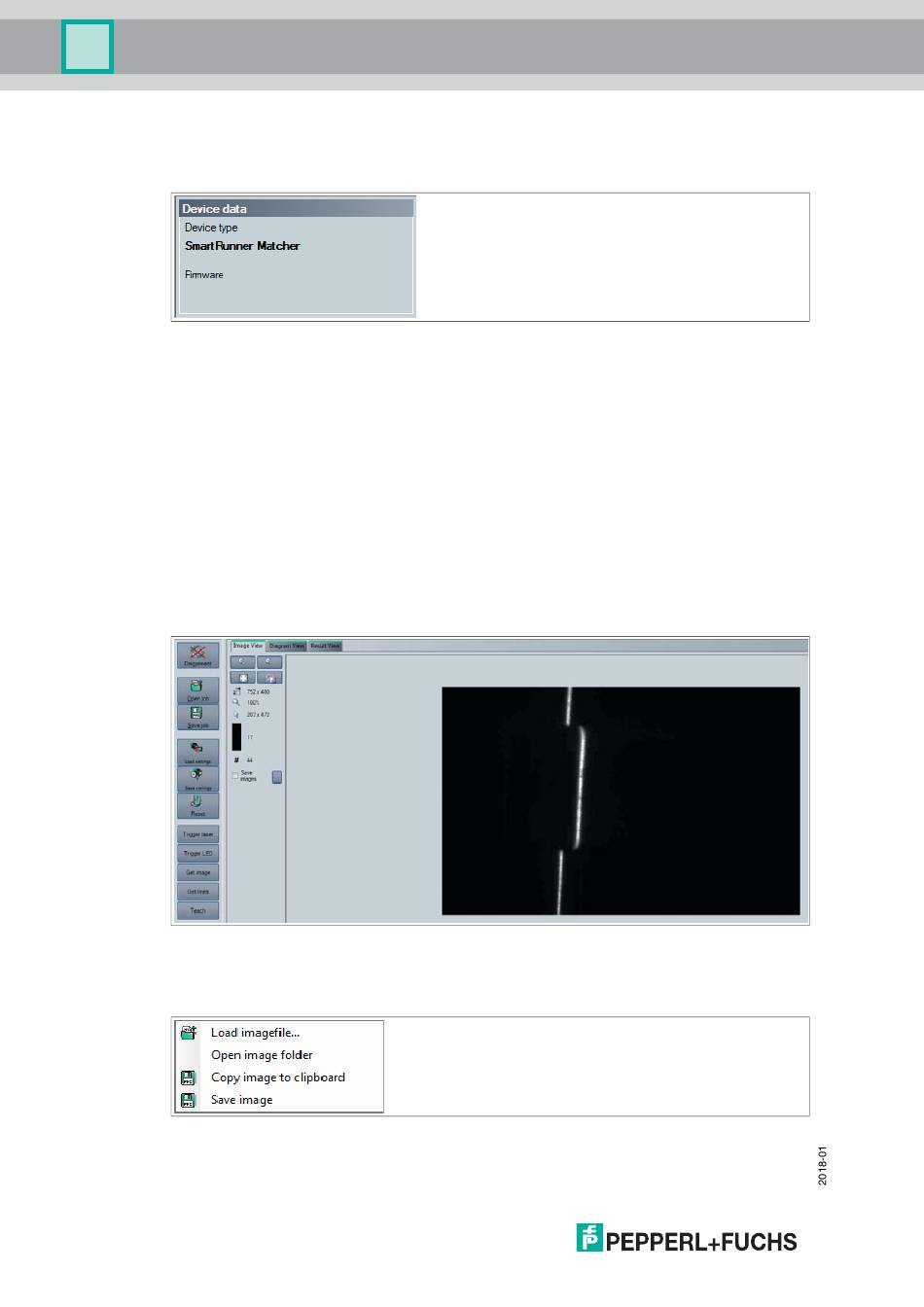

Sensor Data

This section shows the connected device type and firmware version.
x.x.x.xxxxx
Figure 5.9
5.6

Image Display

You can evaluate the data recorded in the image display. By analyzing the recorded profile
form, it is possible to use the measurement result to make a qualitative assessment. This
enables intrusive reflections to be identified and eliminated. There is a relationship between
the exposure time and image blur. A correct exposure is dependent on the brightness of the
profile and the incident amount of light. An exposure time that is too short leads to
underexposed (too dark) images, an exposure time that is too long to overexposed images.
There are various options available to you to display and correct recorded data to avoid errors
during recording.
Image View
You can open the currently recorded image under the Image View tab. To do this, you must
click on the Teach > Trigger laser > Get image buttons in the toolbar.
Figure 5.10
The following context menu appears when you click the right mouse button over the recorded
image:
Figure 5.11
28
Device data
Image View
Image View context menu screen
