FACTORY AUTOMATION
MANUAL

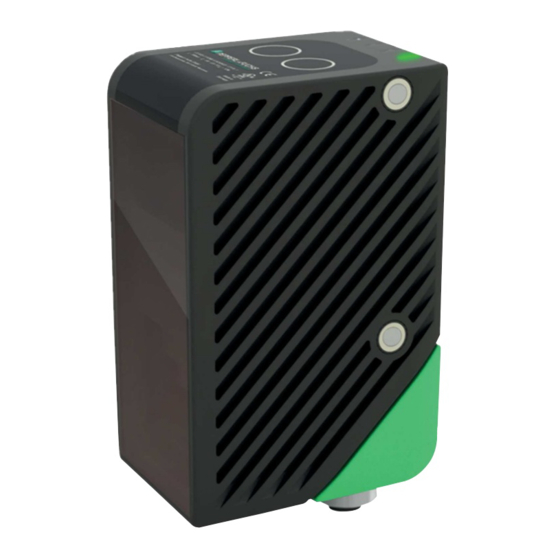

SmartRunner Detector
Laser-line triangulation sensor
for high-precision
field monitoring

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartRunner Detector and is the answer not in the manual?

Questions and answers

Related Manuals for Pepperl+Fuchs SmartRunner Detector

Summary of Contents for Pepperl+Fuchs SmartRunner Detector

  • Page 1 FACTORY AUTOMATION MANUAL SmartRunner Detector Laser-line triangulation sensor for high-precision field monitoring...
  • Page 2 SmartRunner Detector With regard to the supply of products, the current issue of the following document is ap- plicable: The General Terms of Delivery for Products and Services of the Electrical Indus- try, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the...

  • Page 3: Table Of Contents

    SmartRunner Detector Introduction................. 5 Content of this Document ..............5 Target Group, Personnel..............5 Symbols Used ..................5 Product Specifications............... 7 Use and Application................7 Dimensions..................10 Laser Class 1 ..................11 Indicators and Operating Elements ..........12 Interfaces .................... 13 Accessories ..................
  • Page 4 SmartRunner Detector Vision Configurator Software ..........27 Menu Bar .....................27 6.1.1 File Menu ..................27 6.1.2 View Menu ..................28 6.1.3 Sensor Menu..................28 6.1.4 Image Menu ..................29 6.1.5 Administration Menu ................ 29 6.1.6 Help Menu..................30 Connecting to Vision Configurator ...........30 Toolbar....................31...

  • Page 5: Introduction

    SmartRunner Detector Introduction Introduction Content of this Document This document contains information required to use the product in the relevant phases of the product life cycle. This may include the following: Product identification Delivery, transport, and storage Assembly and installation...

  • Page 6: Symbols Used

    SmartRunner Detector Introduction Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid property damage.

  • Page 7: Product Specifications

    SmartRunner Detector Product Specifications Product Specifications Use and Application The SmartRunner laser-line triangulation sensor creates a high-precision 2-D height profile of an object at near range. For this purpose, a laser line is projected onto an object and is detected by a camera at a specific angle. Height and width information are determined using the triangulation principle.
  • Page 8 SmartRunner Detector Product Specifications Flat Profile Figure 2.3 Measurement Result Figure 2.4 The SmartRunner has an optimized hardware and software platform. It is available in different versions for specific applications. The device is certified according to laser protection class 1.
  • Page 9 SmartRunner Detector Product Specifications SmartRunner Detector The detector monitors a defined area. To do so, the laser projects a high-precision light grid onto the previously configured area. Objects < 1 mm can be detected by the high resolution. Even small projections can be detected precisely.

  • Page 10: Dimensions

    SmartRunner Detector Product Specifications Parameterization and Operating Modes The laser-line triangulation sensor can be configured or parameterized via 3 different methods. Reading in code cards via the sensor camera Processing configuration telegrams via the bus interface Using the Vision Configurator software The sensor has different operating modes, which can be activated for configuration, presentation, or normal operation.

  • Page 11: Laser Class 1

    SmartRunner Detector Product Specifications Laser Class 1 This sensor is certified according to laser protection class 1. Warning! Class 1 laser light The laser light can be an irritant, especially in a dark environment. Do not point lasers at people! Maintenance and repairs must be carried out by authorized service personnel only! Install the device so that the warning is clearly visible and readable.
  • Page 12 SmartRunner Detector Product Specifications Note! The function buttons are only activated during a parameterizable time span after the sensor is switched on, following which they are locked. The default value for this time span is 5 minutes. The function buttons have different functions depending on the selected operating state.

  • Page 13: Interfaces

    SmartRunner Detector Product Specifications POWER: (green) Lights up green as soon as voltage is present Background: (green) Lights up green if output 1 is set. Object: (yellow) Lights up yellow if output 2 is set. During the boot process, all of the LEDs light up until the normal operating state has been reached.

  • Page 14: Installation

    SmartRunner Detector Installation Installation Mounting Figure 3.1 Caution! Damage to Equipment The threads in the bores at the side and on the underside of the housing are not thru-holes. Observe the maximum permissible screw-in depth to avoid damaging the device or mounting incorrectly.
  • Page 15 SmartRunner Detector Installation Positioning When positioning the SmartRunner, ensure that the camera's field of vision is not covered by the objects being scanned. Figure 3.2 If the monitored area is underneath the sensor, the camera must be aligned to the area from above.
  • Page 16 SmartRunner Detector Installation The corner of the housing where the 8-pin M12 connector plug MAIN is located can be rotated. Depending on the mounting position, you can rotate the connector plug in a different direction to ensure simple cabling. Figure 3.4...

  • Page 17: Detection Range

    Installation Detection Range Field of view Detection range Note the detection range of the SmartRunner detector when planning your plant. The following table contains information on the detection range and the resolution. Detection range X Distance Y to the sensor...

  • Page 18: Electrical Connection

    SmartRunner Detector Installation Electrical Connection The device is connected electrically via an 8-pin M12 connector plug MAIN on the side of the housing. The power supply and data transfer take place via this connection. Signal IN Trigger Data+ RS-485 Data- RS-485...
  • Page 19 SmartRunner Detector Installation Shielding Cables The shielding of connection lines is required to suppress electromagnetic interference. Establishing a low resistance or low impedance connection with the conductor or equipotential bonding circuit is a particularly important factor in ensuring that these interference currents do not become a source of interference themselves.

  • Page 20: Commissioning

    SmartRunner Detector Commissioning Commissioning Configuration Mode To adjust the sensor, it must be in configuration mode. The command to put the sensor in this mode is 0xA8 0x57. After successfully changing mode, the sensor responds with an Acknowledge (0x81 0xAC 0x00 0x2D). After an error when converting the configuration, the sensor responds with a No Acknowledge (0x81 0x53 0xXX 0xYY, where XX = error code and YY = checksum).
  • Page 21 SmartRunner Detector Commissioning Data Index Parameter name Length/bytes Read/write Description 0xFE InParamMode Queries whether the sensor is in parameterization mode 0xF3 Save settings Saves the current settings in the flash memory 0xFF LeaveParamMode Request to exit parameterization mode 0x20 Interface_Address...
  • Page 22 SmartRunner Detector Commissioning Note! All values are transferred in little-endian format. This saves the least significant byte at the lowest address, i.e. the least significant component is specified first. Example ROI for evaluation: Sets the ROI to ±50 mm in the X direction and to between +100 mm and...

  • Page 23: Operation

    SmartRunner Detector Operation Operation Communication via the RS-485 Interface The controller and reader communicate via the RS-485 interface during operation. Make sure that the basic communication settings have been made on the reader, such as setting the reader address and baud rate.

  • Page 24: Response Telegram

    SmartRunner Detector Operation 5.1.2 Response Telegram The response telegram may contain 6 to 9 bytes, depending on the content. The first byte contains the address of the responding reader and status information. The X position of the reader is transmitted in bytes 2 to 5, starting with the MSB. Depending on the controller request, information such as speed and the Y position is transmitted in the subsequent bytes.

  • Page 25: Vision Configurator Software

    SmartRunner Detector Vision Configurator Software Vision Configurator Software The sensor is commissioned and operated using the Vision Configurator software. The Vision Configurator software makes it easy to operate the sensor with its user-friendly interface. Standard functions include making connections to the sensor, specifying the operating parameters, saving data sets, and displaying data and error diagnostics.

  • Page 26: File Menu

    SmartRunner Detector Vision Configurator Software 6.1.1 File Menu Figure 6.2 File Menu Change device Disconnects the device and returns to the Login dialog. Open job Loads a sensor configuration stored on the PC. Save job Saves the current sensor configuration on the PC.

  • Page 27: Image Menu

    SmartRunner Detector Vision Configurator Software Change network If the sensor is connected to the PC via Ethernet, this command settings... enables you to change some of the connection settings on the sensor. Once you have changed the settings, the connection between Vision Configurator and the sensor is automatically disconnected.

  • Page 28: Help Menu

    SmartRunner Detector Vision Configurator Software User administration Opens a window which displays all of the currently created users at the same authorization level or lower. New users with the same authorization level or lower can also be created and deleted here.

  • Page 29: Connecting To Vision Configurator

    SmartRunner Detector Vision Configurator Software Connecting to Vision Configurator Connect the SmartRunner to a PC. Use a suitable RS-485/USB connecting cable and an adapter cable to do this: Function Order designation USB to RS-485 interface converter including cable unit with...

  • Page 30: Toolbar

    SmartRunner Detector Vision Configurator Software Toolbar Using the toolbar, various functions can be called up directly. The connection between the PC and the sensor is disconnected. Opens a saved setting. Saves the settings made. Settings are read out from the sensor.
  • Page 31 SmartRunner Detector Vision Configurator Software Diagram View Displays the results data in graphical form. The results data is retrieved by clicking "Get lines". The most recent results are then retrieved and displayed graphically. The "Get lines" function does not trigger a new image capture and evaluation process. "Trigger" must have been clicked in order to do this.

  • Page 32: Sensor Information

    SmartRunner Detector Vision Configurator Software Figure 6.11 Result View Sensor Information Sensor Information Tab Name: "Pepperl+Fuchs GmbH" Homepage: "http://www.pepperl-fuchs.com/" Product name: "Smartrunner" Firmware version: Current firmware version of the main processor. The version designation as a whole is made up as follows: Major Version.Minor Version.

  • Page 33: Common

    SmartRunner Detector Vision Configurator Software Common Common Tab The general tab for setting the sensor configuration. "Communication" Tab Figure 6.13 Common tab: Communication RS485 head address: Address in the RS485 bus. The address is sent with every RS- 485 command (see chapter on RS-485 communication) and is used for identification purposes if multiple sensors are installed in the bus.
  • Page 34 SmartRunner Detector Vision Configurator Software "Lighting" Tab Figure 6.15 Common tab: Lighting Exposure time: Setting for the manual exposure time. If the "Use manual exposure time" checkbox is deactivated, this value has no significance. "Use manual exposure time" checkbox: The manually set exposure time is used when this checkbox is activated.

  • Page 35: Detection

    SmartRunner Detector Vision Configurator Software Detection Detection Tab General tab for configuring the camera "Detection" Tab Figure 6.17 Detection tab—Detection Minimum object size: camera setting, adjust the resolution to the object size. "ROI" Tab Figure 6.18 Detection tab—region of interest...

  • Page 36: Setting Device Parameters Via Control Code

    SmartRunner Detector Vision Configurator Software Figure 6.19 Generating a control code: Exposure time of 1000 µs Setting Device Parameters via Control Code Use Vision Configurator to generate control codes. See chapter 6.8 Note! Parameterization mode can be activated only within 10 minutes of the sensor being switched Activating Parameterization Mode Hold down the 2 button on the back of the sensor for more than 2 seconds.

  • Page 37: Maintenance

    SmartRunner Detector Maintenance Maintenance To get the best possible performance out of your device, keep the optical unit on the device clean and clean it when necessary. Observe the following instructions when cleaning: Do not touch the optical unit with your fingers.
