Summary of Contents for Pepperl+Fuchs SJ2-SN

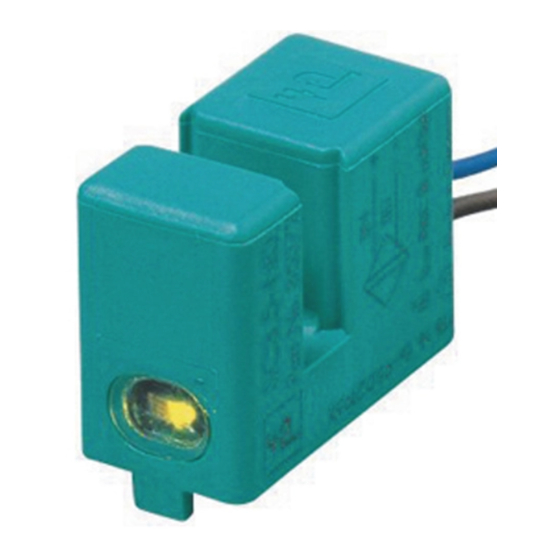

- Page 1 Functional Safety Inductive Slot Sensor SJ2-SN, SJ3,5-S(1)N Manual ISO9001...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
Functional Safety SJ2-SN, SJ3,5-S(1)N Contents Introduction ............5 Content of this Document . - Page 4 Functional Safety SJ2-SN, SJ3,5-S(1)N Contents...
-
Page 5: Introduction
Additionally, the following parts may belong to the documentation, if applicable: • EU-type examination certificate • EU declaration of conformity • Attestation of conformity • Certificates • Control drawings • FMEDA report • Assessment report • Additional documents For more information about Pepperl+Fuchs products with functional safety, see www.pepperl-fuchs.com/sil. -
Page 6: Safety Information
Functional Safety SJ2-SN, SJ3,5-S(1)N Introduction Safety Information Target Group, Personnel Responsibility for planning, assembly, commissioning, operation, maintenance, and dismounting lies with the plant operator. Only appropriately trained and qualified personnel may carry out mounting, installation, commissioning, operation, maintenance, and dismounting of the product. The personnel must have read and understood the instruction manual and the further documentation. -
Page 7: Symbols Used
Functional Safety SJ2-SN, SJ3,5-S(1)N Introduction Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid property damage. -
Page 8: Product Description
In safety applications up to SIL 3, the device must be operated on a control unit for SIL 3 safety applications. Pepperl+Fuchs offers control units for SIL 3 safety applications, i. e. switch amplifier KFD2-SH-Ex1. Observe the limitations, see chapter 3.2. -
Page 9: Interfaces
Functional Safety SJ2-SN, SJ3,5-S(1)N Product Description Interfaces The device has the following interfaces. • Safety relevant interface: device output • Non-safety relevant interface: none Note For corresponding connections see datasheet. Marking Pepperl+Fuchs Group Lilienthalstraße 200, 68307 Mannheim, Germany Internet: www.pepperl-fuchs.com... -
Page 10: Planning
Functional Safety SJ2-SN, SJ3,5-S(1)N Planning Planning System Structure 3.1.1 Low Demand Mode of Operation If there are two control loops, one for the standard operation and another one for the functional safety, then usually the demand rate for the safety loop is assumed to be less than once per year. -
Page 11: Assumptions
SIL 3 Application Only use the device in SIL 3 applications in combination with a control unit for SIL 3 safety applications from Pepperl+Fuchs, i. e. switch amplifier KFD2-SH-Ex1. • The device claims less than 25 % of the total failure rate for a SIL 3 safety loop. -
Page 12: Safety Function And Safe State
Functional Safety SJ2-SN, SJ3,5-S(1)N Planning Safety Function and Safe State Safe State The safe state of the device is the high impedance state (low current). Applications with control units or safety functions where the safe state is the low impedance state (high current) were not evaluated. -
Page 13: Characteristic Safety Values
Planning To ensure the safety of the safety loop according to SIL 3, only use control units for SIL 3 safety applications from Pepperl+Fuchs, i. e. switch amplifier KFD2- SH-Ex1. Reaction Time The reaction time for all safety functions is < 1 ms. -
Page 14: Useful Lifetime
Functional Safety SJ2-SN, SJ3,5-S(1)N Planning Useful Lifetime Although a constant failure rate is assumed by the probabilistic estimation this only applies provided that the useful lifetime of components is not exceeded. Beyond this useful lifetime, the result of the probabilistic estimation is meaningless as the probability of failure significantly increases with time. -
Page 15: Mounting And Installation
Connect the device in safety applications up to SIL 3 to a control unit for SIL 3 safety applications. Pepperl+Fuchs offers control units for SIL 3 safety applications, i. e. switch amplifier KFD2-SH-Ex1. Observe the limitations, see chapter 3.2. Configuration... -
Page 16: Operation
Functional Safety SJ2-SN, SJ3,5-S(1)N Operation Operation Danger! Danger to life from missing safety function If the safety loop is put out of service, the safety function is no longer guaranteed. • Do not deactivate the device. • Do not bypass the safety function. -
Page 17: Maintenance And Repair
Functional Safety SJ2-SN, SJ3,5-S(1)N Maintenance and Repair Maintenance and Repair Danger! Danger to life from missing safety function Changes to the device or a defect of the device can lead to device malfunction. The function of the device and the safety function is no longer guaranteed. -
Page 18: List Of Abbreviations
Functional Safety SJ2-SN, SJ3,5-S(1)N List of Abbreviations List of Abbreviations Distance to the slot base Diagnostic Coverage of dangerous faults Failure In Time in 10 Failure Mode, Effects, and Diagnostics Analysis FMEDA Probability of safe failure Probability of dangerous detected failure ... - Page 19 Functional Safety SJ2-SN, SJ3,5-S(1)N Notes...
- Page 20 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications Printed in Germany / DOCT-5975B...
