Toolbar

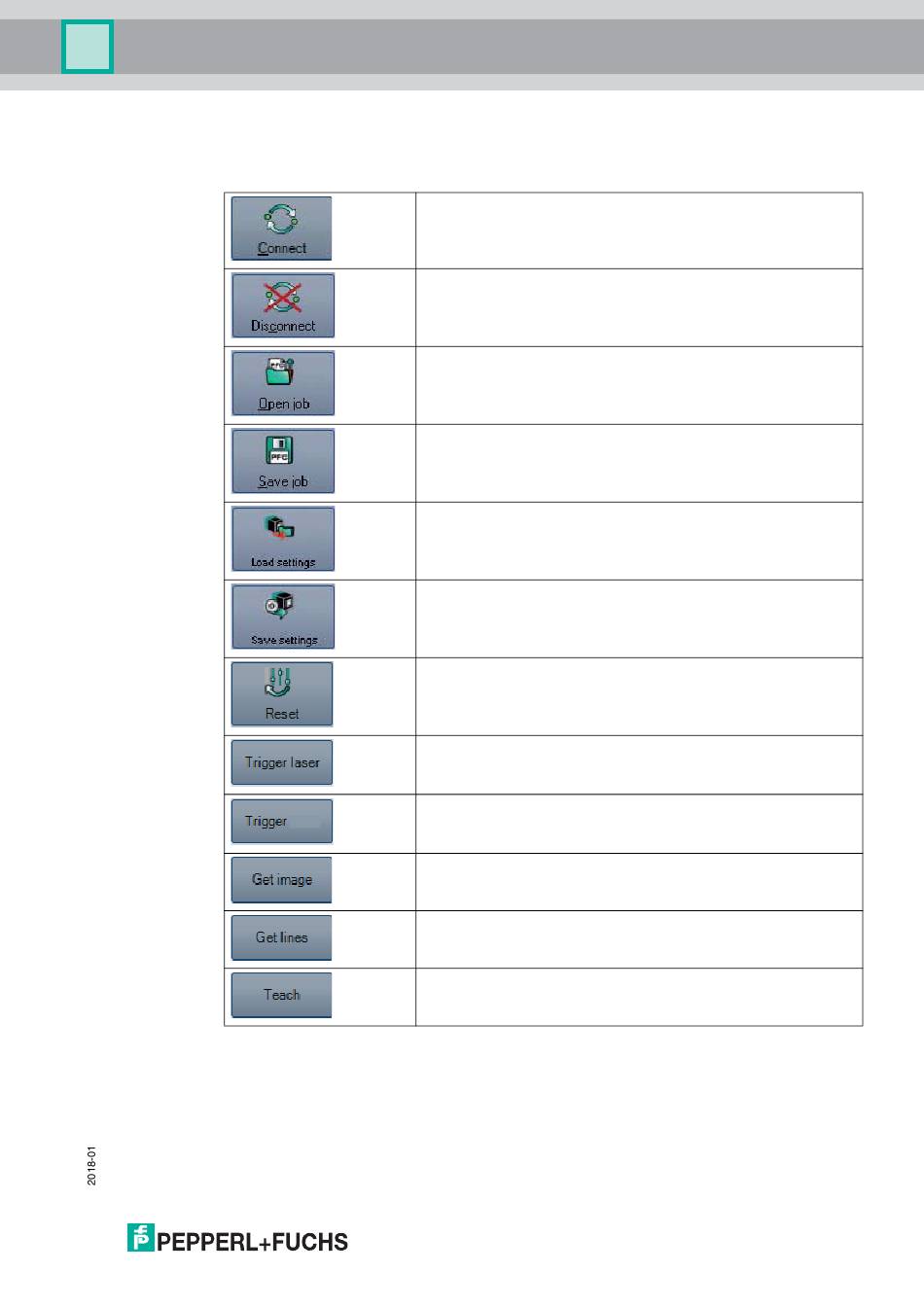

The toolbar can be used to select various functions.
Selecting the Connect button establishes a connection between
the PC and the sensor.
The connection between the PC and the sensor is disconnected.
Opens a saved setting.
Saves the settings made.
Settings are read out from the sensor.
All settings made are saved on the sensor.
Reset to default settings.
Perform manual trigger.
Perform LEDs trigger
Caution: If autotrigger is activated, a line image will be issued
LED
using the "Trigger LED."
Current sensor image is loaded.
The line image is loaded.
Profile is taught in using the next trigger.
