SmartRunner Matcher*
Product Specifications
The integrated control interface of the sensor has been optimized by the factory to report
deviations from a previously programed contour. Via the profile comparison, the sensor
detects the recorded contour of an object, its correct location, and spacing. In case of a fault,
collisions and damage are safely eliminated and lengthy machine downtimes are therefore
avoided.
For this, the sensor is taught in to a specific height profile and a trigger executes a
reconciliation between the currently-recorded contour and the reference contour. A "good"
signal is produced if these are identical. If the two profiles differ, a "Bad" signal is produced.
1
3

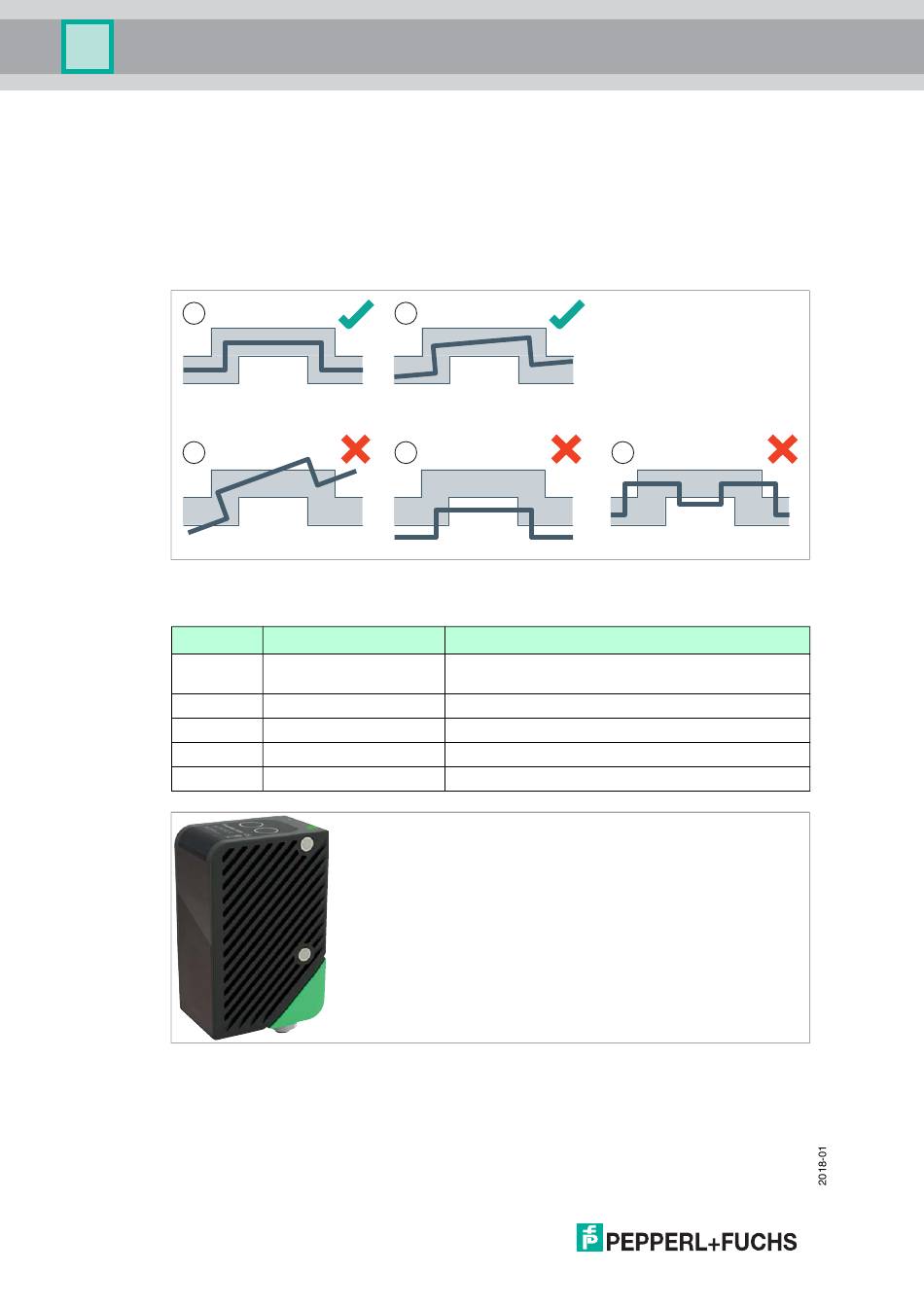

Figure 2.2
Position
1
2
3
4
5
Figure 2.3
8
2
4
Capturing object contour, position, and distance
Designation
Good-signal-scenario 1
Good-signal-scenario 2
Bad-signal-scenario 3
Bad-signal-scenario 4
Bad-signal-scenario 5
Sensor
5
Function
Taught-in reference contour with adjustable
tolerance range
Slight torsion within the tolerance range
Excessive torsion outside the tolerance range
Too great a distance between sensor and object
Incorrect or faulty object detected
