SmartRunner Matcher*
Product Specifications
Position
3
4
5
6
7
8
2.5

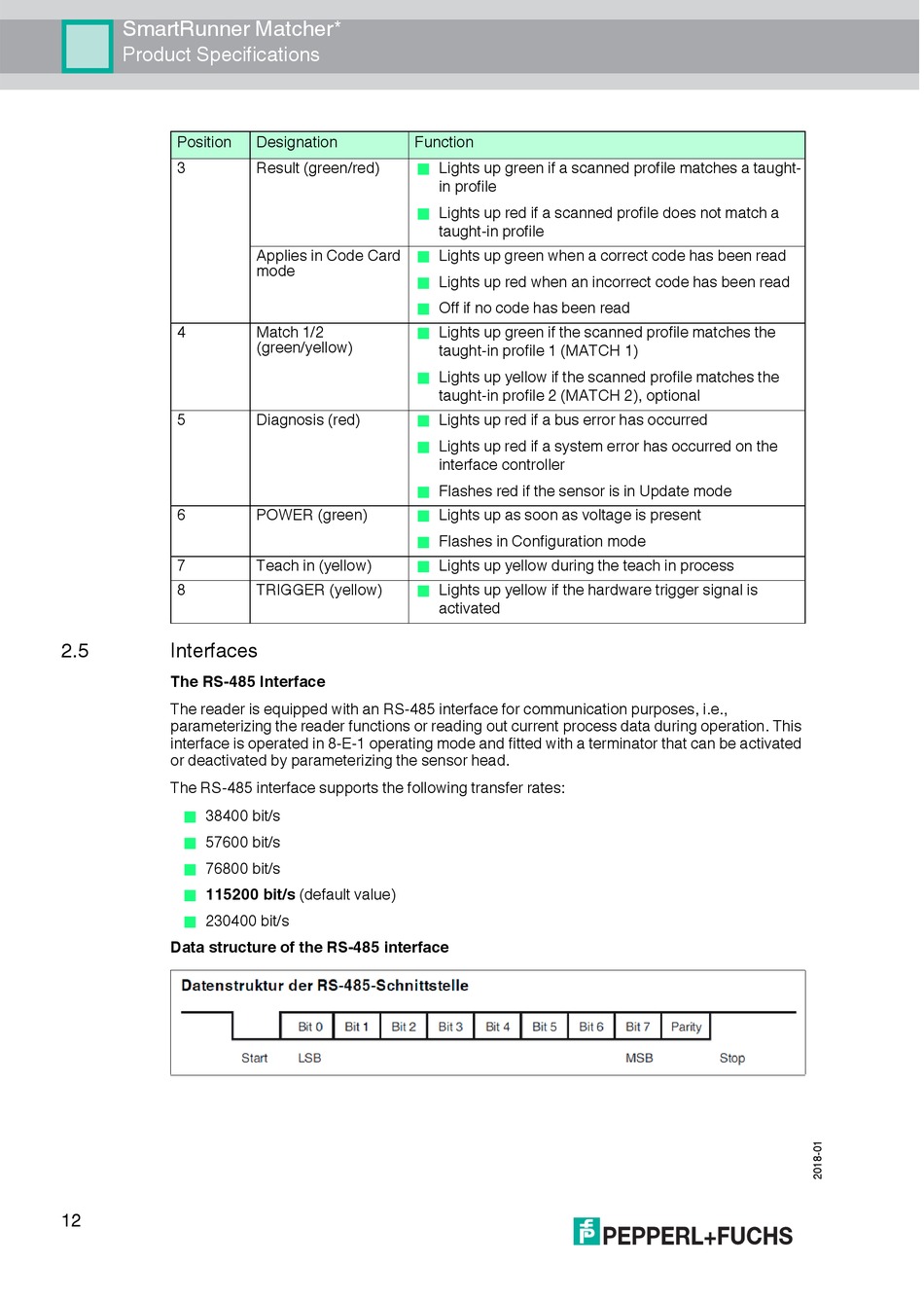

Interfaces

The RS-485 Interface
The reader is equipped with an RS-485 interface for communication purposes, i.e.,
parameterizing the reader functions or reading out current process data during operation. This
interface is operated in 8-E-1 operating mode and fitted with a terminator that can be activated
or deactivated by parameterizing the sensor head.
The RS-485 interface supports the following transfer rates:
38400 bit/s

57600 bit/s

76800 bit/s

115200 bit/s (default value)

230400 bit/s

Data structure of the RS-485 interface
12
Designation Function
Result (green/red)


Applies in Code Card

mode


Match 1/2

(green/yellow)

Diagnosis (red)



POWER (green)


Teach in (yellow)

TRIGGER (yellow)

Lights up green if a scanned profile matches a taught-
in profile
Lights up red if a scanned profile does not match a
taught-in profile
Lights up green when a correct code has been read
Lights up red when an incorrect code has been read
Off if no code has been read
Lights up green if the scanned profile matches the
taught-in profile 1 (MATCH 1)
Lights up yellow if the scanned profile matches the
taught-in profile 2 (MATCH 2), optional
Lights up red if a bus error has occurred
Lights up red if a system error has occurred on the
interface controller
Flashes red if the sensor is in Update mode
Lights up as soon as voltage is present
Flashes in Configuration mode
Lights up yellow during the teach in process
Lights up yellow if the hardware trigger signal is
activated
