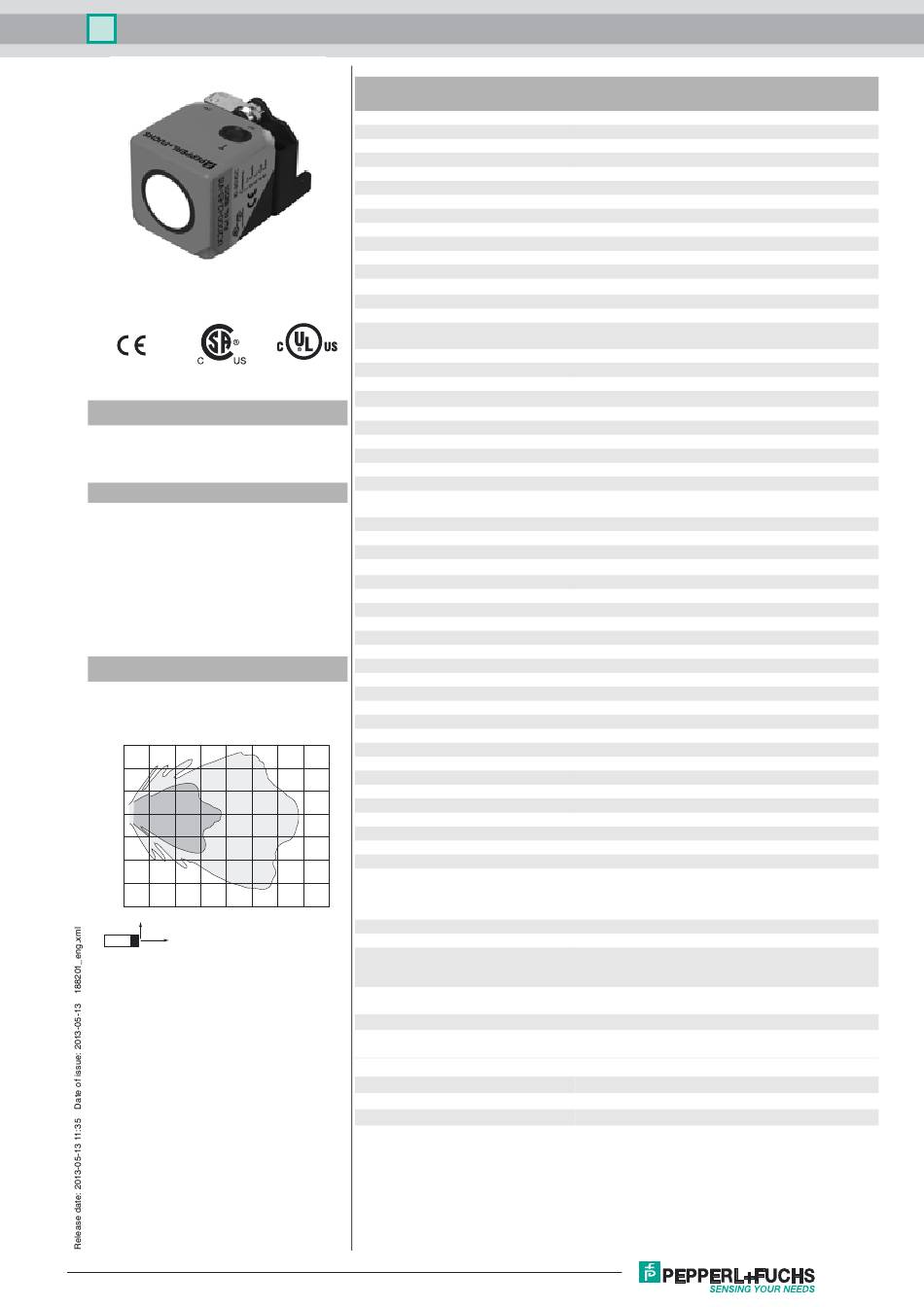

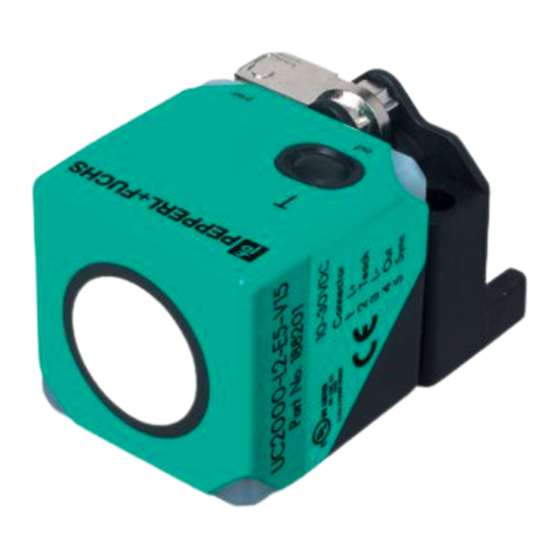

Ultrasonic sensor
Model Number
UC2000-L2-E5-V15
Single head system
Features
• Sensor head bidirectional and ro-
tatable
• Function indicators visible from all
directions
• Quick mounting bracket
• Selectable sound lobe width
• Programmable
Diagrams
Characteristic response curve
Distance Y [m]
0.6
0.4
0.2
0.0
2
-0.2
-0.4
-0.6
-0.8
0.0
0.5
1.0
1.5
2.0
Y
X
Curve 1: flat surface 100 mm x 100 mm
Curve 2: round bar, Ø 25 mm
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group
USA: +1 330 486 0001
www.pepperl-fuchs.com
fa-info@us.pepperl-fuchs.com
Technical data
General specifications
Sensing range
Adjustment range
Unusable area
Standard target plate
Transducer frequency
Response delay
Indicators/operating means
LED green
LED yellow
LED red
Electrical specifications
Operating voltage U
No-load supply current I
Interface
Interface type
Input/Output
Input/output type
0 Level
1 Level
Input impedance
Output rated operating current
Pulse length
Pulse interval
Synchronization frequency
Common mode operation
Multiplex operation
Input
Input type
Level (switch point 1)
Level (switch point 2)
Input impedance
Pulse length
Output
Output type
Rated operating current I
Voltage drop U
Repeat accuracy
Switching frequency f
Range hysteresis H
Temperature influence
Ambient conditions
Ambient temperature
Storage temperature
Mechanical specifications
Connection type
Protection degree
Material
Housing
1
Transducer
Mass
Factory settings
Output
2.5
3.0
3.5
4.0
Distance X [m]
Beam width
General information
Supplementary information
Compliance with standards and
directives
Standard conformity
Standards
Approvals and certificates
UL approval
CSA approval
Germany: +49 621 776 4411
fa-info@de.pepperl-fuchs.com
60 ... 2000 mm
80 ... 2000 mm
0 ... 60 mm
100 mm x 100 mm
approx. 175 kHz
≤ 100 ms
Operating display
switching state
error
10 ... 30 V DC , ripple 10 %
B
≤ 50 mA
0
Serial interface (programming adapter required)
9600 BPS, no parity, 8 data bits, 1 stop bit
1 synchronization connection, bidirectional
0 ... 1 V
4 V ... U
> 12 kΩ
< 12 mA
0.5 ... 300 ms (level 1)
≥ 33 ms (level 0)
≤ 30 Hz
≤ 33 Hz / n , n = number of sensors , n ≤ 10
(factory setting: n = 5 )
1 program input
0 ... 1 V
4 V ... U
> 10 kΩ
2 ... 10 s
1 switch output E5, PNP NO/NC, programmable
200 mA , short-circuit/overload protected
e
≤ 2 V
d
≤ 0.1 % of full-scale value
≤ 5 Hz
programmable , preset to 1 mm
< 1.5 % of full-scale value
-25 ... 70 °C (-13 ... 158 °F)
-40 ... 85 °C (-40 ... 185 °F)
Connector M12 x 1 , 5-pin
IP67
PA-GF35
epoxy resin/hollow glass sphere mixture; polyurethane foam
115 g
near switch point: 80 mm
far switch point: 2000 mm
output function: Window operation mode
output behavior: NO contact
wide
Switch settings of the external programming adapter:
"output load": pull-down
"output logic": inv
EN 60947-5-2:2007
IEC 60947-5-2:2007
cULus Listed, General Purpose
cCSAus Listed, General Purpose
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
UC2000-L2-E5-V15
SS
B
B
1
