SmartRunner Matcher*
Vision Configurator Software
Mode menu item
You can enable or disable "Presentation mode" and "function keys 1 and 2" under the Mode
menu item. "Presentation mode" and "function keys 1 and 2" are activated if checked and
deactivated if unchecked.

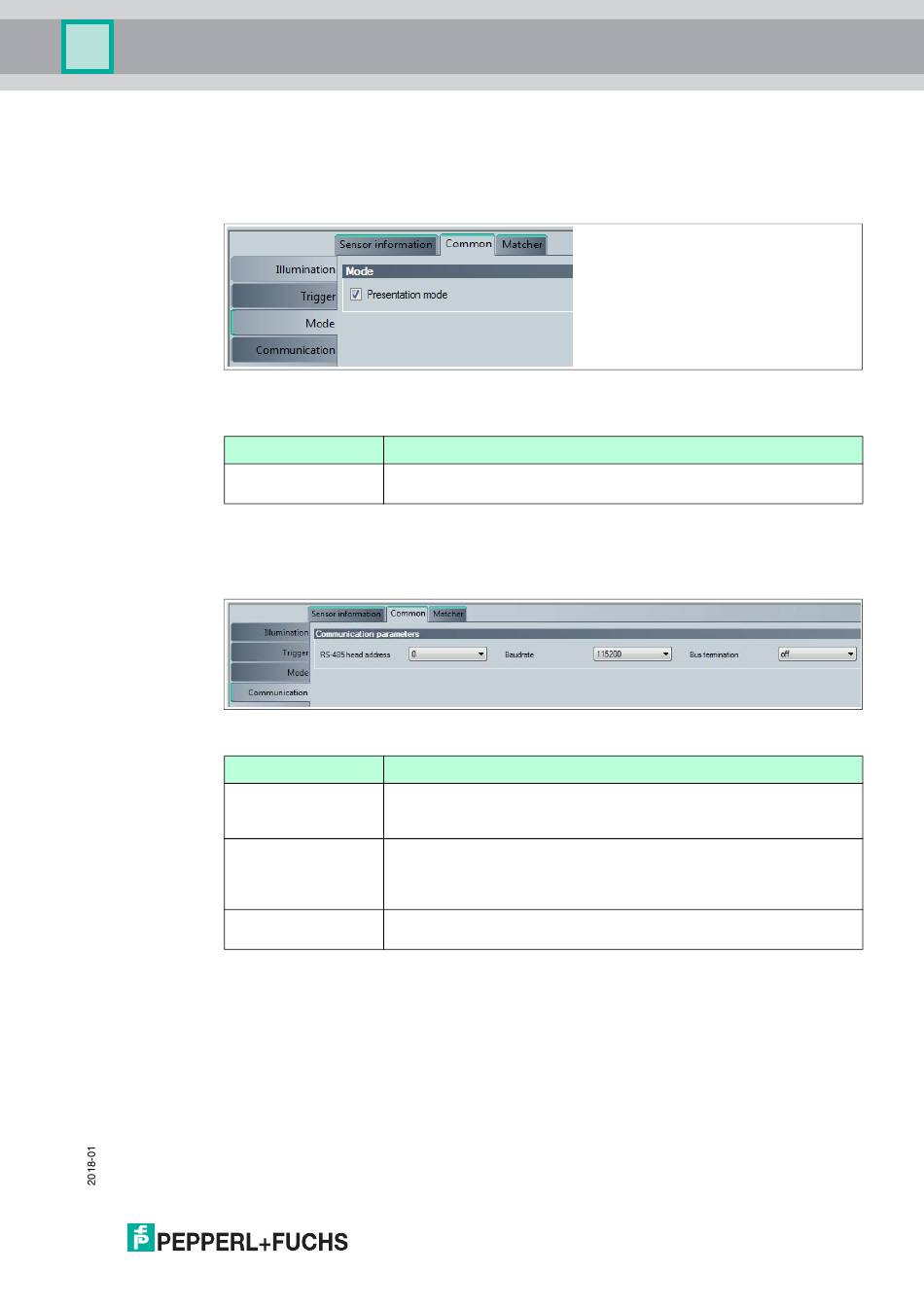

Figure 5.19
Designation
Presentation mode
Communication menu item
You can adjust the connection parameters between the sensor and computer under the
Communication menu item.
Figure 5.20
Designation
RS-485 head address Address in the RS-485 bus. The address is sent with every RS485
Baud rate
Bus termination
Mode menu item
Function
Mode of operation for presentation or testing without the assistance of
a PC
Communication menu item
Function
command (see chapter 2.5) and is used for identification purposes if
multiple sensors are installed in the bus.
Data transfer speed setting. The default value of the sensor is 115200
bps. When you change the baud rate, the baud rate of the Vision
Configurator is automatically changed so that communication remains
possible.
Activates the integrated terminating resistor to terminate the RS-485
bus on the sensor
35
