SmartRunner Matcher*
Vision Configurator Software

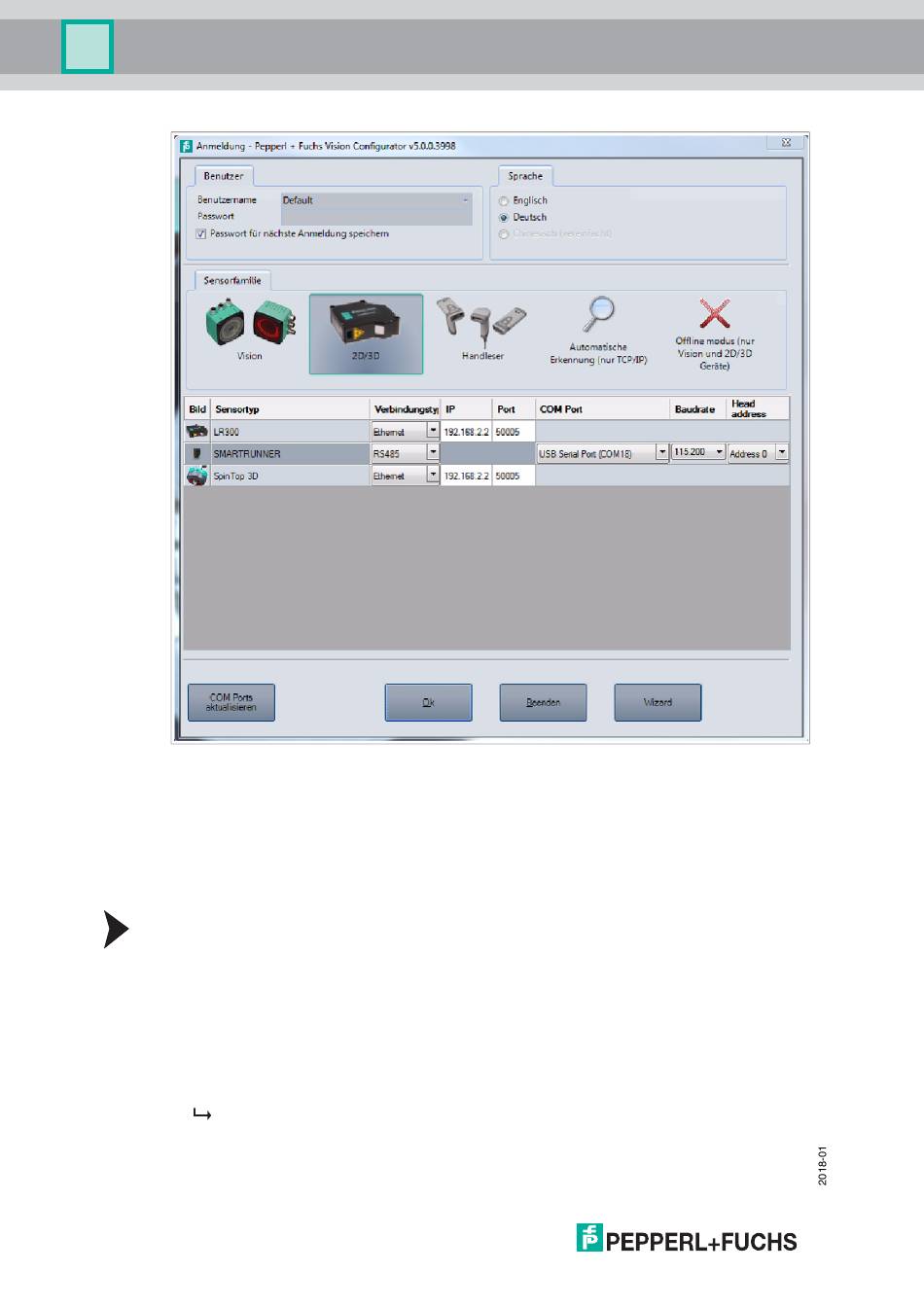

Figure 5.1
Wizard - Operation assistant for Vision Configurator
The Wizard complements the Vision Configurator configuration software. Double-click on the
Wizard button to launch the operation assistant. You will be guided step-by-step through the
individual settings.
Proceed as follows to launch the Vision Configurator.
Starting Vision Configurator
1. Select the 2-D/3-D button on the "Sensor Family" tab.
2. Select SMARTRUNNER in the "parameter range" with connection type RS485.
3. Select the required COM port.
4. In the Baud rate window ensure that the value 115,200 is set. Otherwise select the value.
5. In the Head address window, ensure that the address is set to Address 0. Otherwise
select the address.
6. Use the OK button to confirm your settings.
The application window will open.
22
Home screen
