SmartRunner Matcher*
Vision Configurator Software
5.7.3

Matcher Tab

4 menu items are available under the Matcher tab. The purpose of this section is to present
the menu items in detail.
Teach menu item
You can adjust the teach-in range of the sensor under the Teach menu item. The teach-in
range allows you to restrict the range of the reference height profile. The required "Teach ROI"
teach-in range is adjusted using the line profile under the "Diagram View" tab. The coordinates
of the x and z axis are shown in the display field below the graphic.

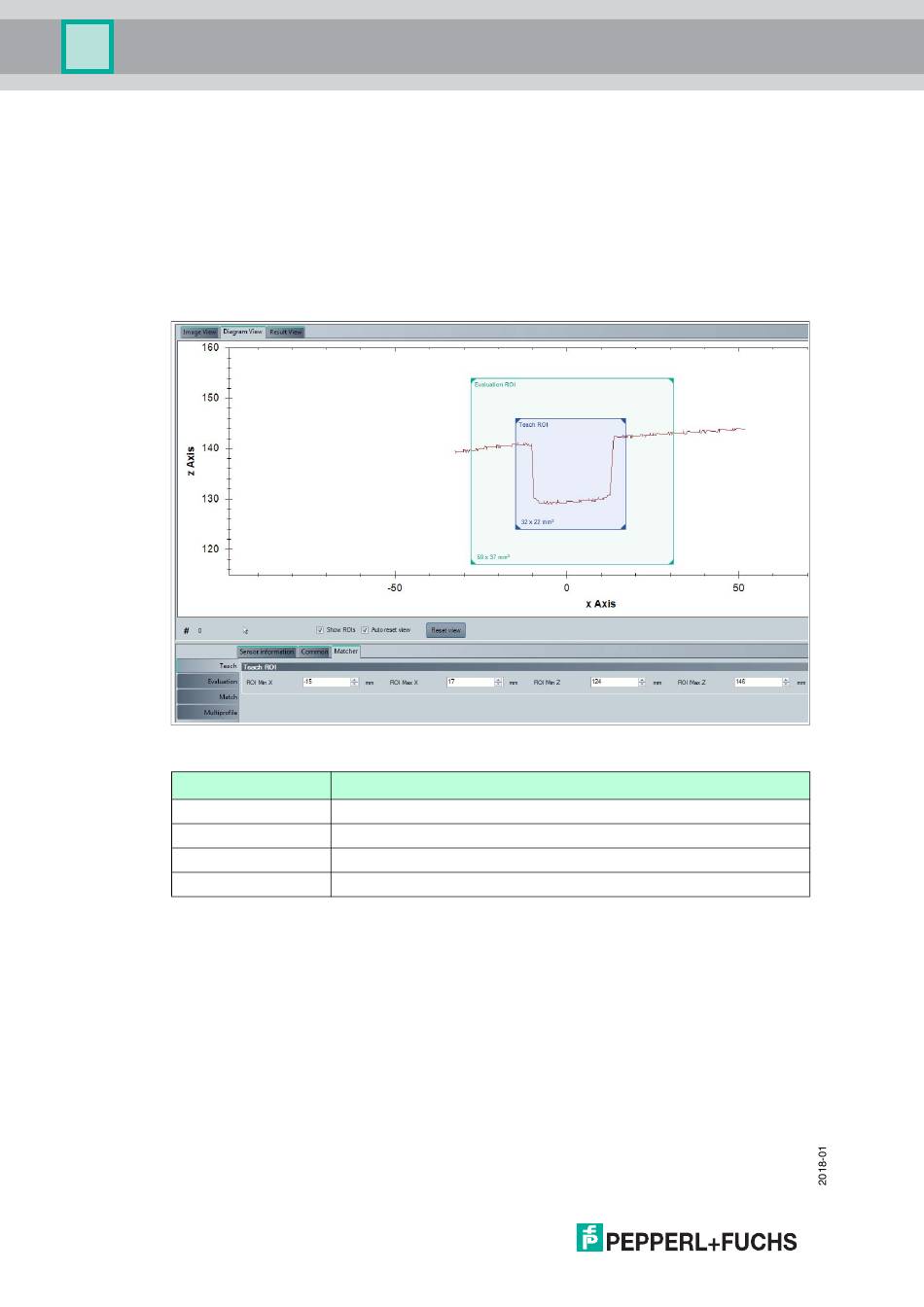

Figure 5.21
Designation
ROI Min X
ROI Max X
ROI Min Z
ROI Max Z
36
Teach menu item
Function
the smallest value on the x axis
the largest value on the x axis
the smallest value on the z axis
the largest value on the z axis
