SmartRunner Matcher*
Vision Configurator Software
5.7.2
Common Tab
There are 4 menu items available under the Common tab. The purpose of this section is to
present the menu items in detail.
Illumination menu item
You can adjust the sensor's exposure under the Illumination menu item.

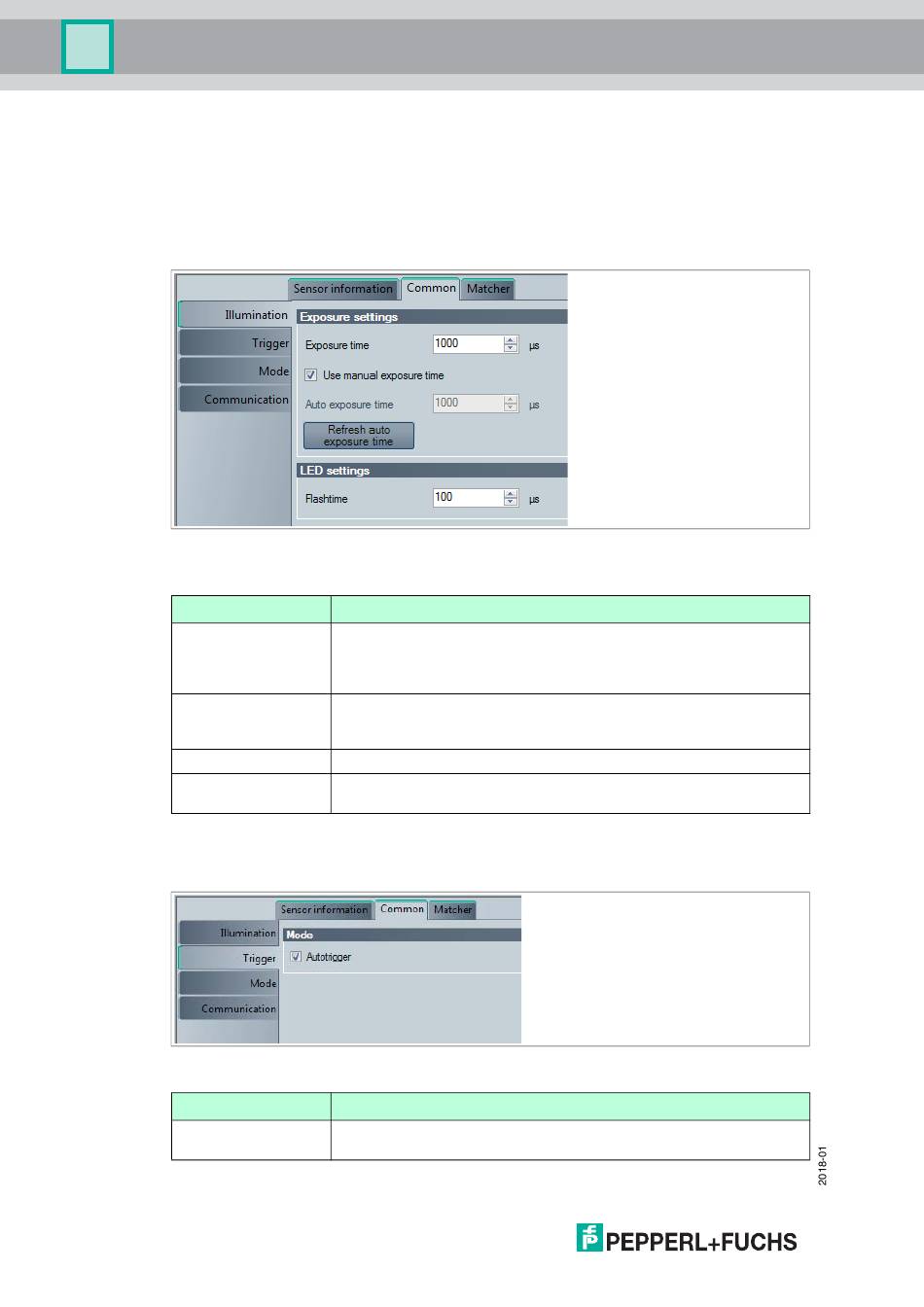

Figure 5.17
Designation
Exposure time
Use manual exposure
time
Auto exposure time
Refresh auto
exposure time
Trigger menu item
You can enable or disable the autotrigger under the Trigger menu item.
Figure 5.18
Designation
Autotrigger
34
Illumination menu item
Function
Setting the manual exposure time. The "Use manual exposure time"
function must be activated to manually adjust the exposure time. By
increasing the value, the exposure time and thus the image brightness
increase. Values below 1000 µs are suitable in most cases
When enabled, the manually set exposure time is used. If this box is
not checked, the exposure time during the teach-in process is
controlled automatically
The current exposure time is output in this field
The "Auto exposure time" field is updated by pressing the button
Trigger menu item
Function
The autotrigger must be activated in "Presentation mode."
The autotrigger must be activated to adjust the "quality threshold."
