SmartRunner Matcher*
Vision Configurator Software
Evaluation Menu Item
You can adjust the sensor's evaluation range under the Evaluation menu item. The evaluation
range is the range in which the sensor seeks out the taught-in height profile. The required
"Evaluation ROI" evaluation range is adjusted using the line profile under the "Diagram View"
tab. The coordinates of the x and z axis are shown in the display field below the graphic.

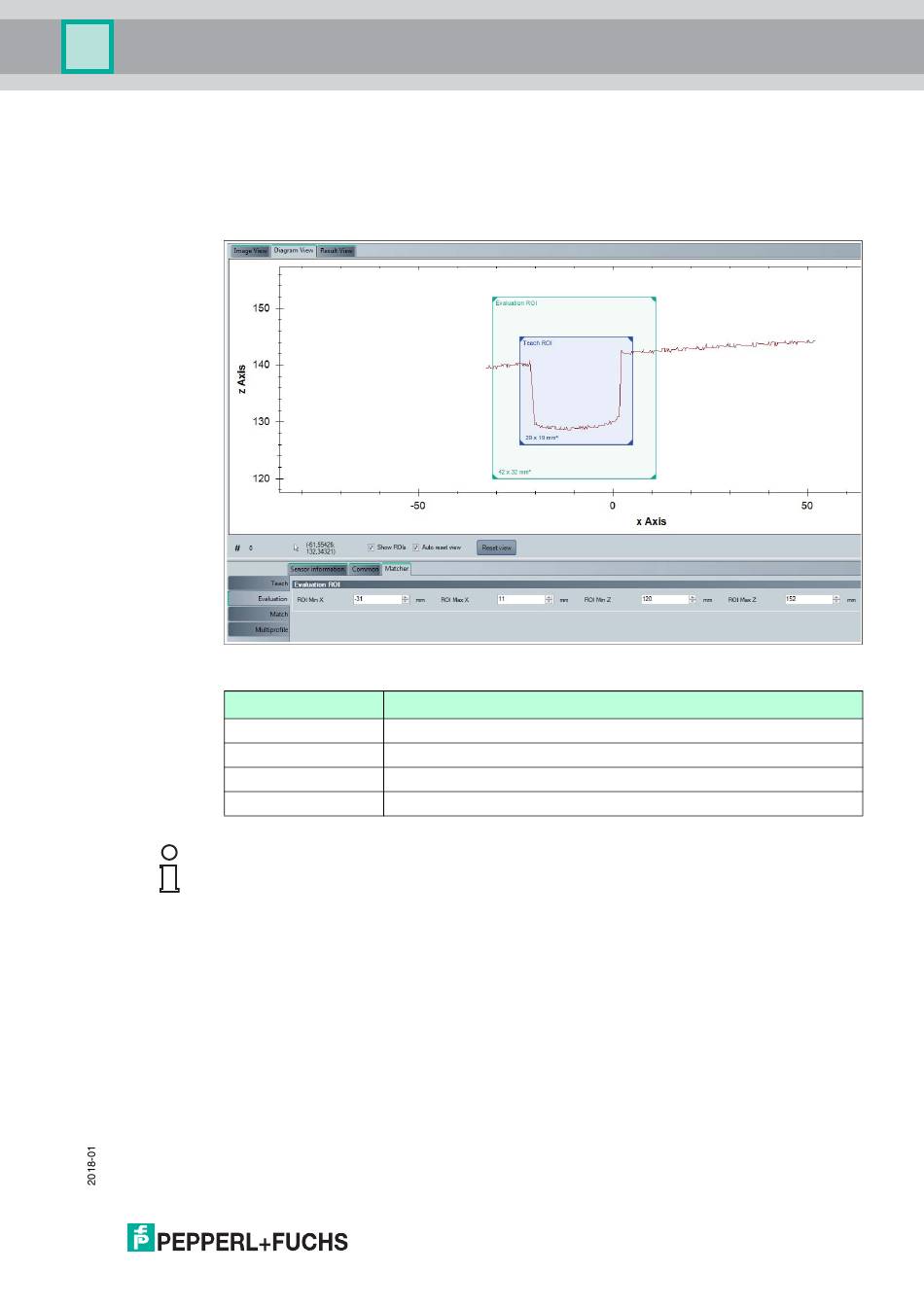

Figure 5.22
Designation
ROI Min X
ROI Max X
ROI Min Z
ROI Max Z
Note!
Setting the Frame Size
Moving the teach-in range and evaluation range
This gives you the option to move the teach-in range and evaluation range. To do this, click
with the left mouse button in the teach-in range or evaluation range. The frame of the selected
area is shown as a dashed line. Hold down the mouse button and the window moves as you
move the mouse. Release the mouse button at the position where you want to place the
window. The coordinates in the display field are updated automatically.
Minimizing/maximizing the teach-in range and evaluation range
This gives you the option to broaden or narrow the teach-in range and evaluation range or to
decrease or increase the height. Move the mouse to any edge of the frame until the mouse
cursor changes. This turns into an arrow with 2 ends. When the mouse cursor has changed,
click and hold with the left mouse button and move the mouse until the window is the desired
width and/or height. The size can be changed on all 4 edges, and at the corners, too. The
mouse cursor changes to a diagonal double arrow at the corners and changes the height and
width in the same ratio. The coordinates in the display field are updated automatically.
Evaluation Menu Item
Function
the smallest value on the x axis
the largest value on the x axis
the smallest value on the z axis
the largest value on the z axis
