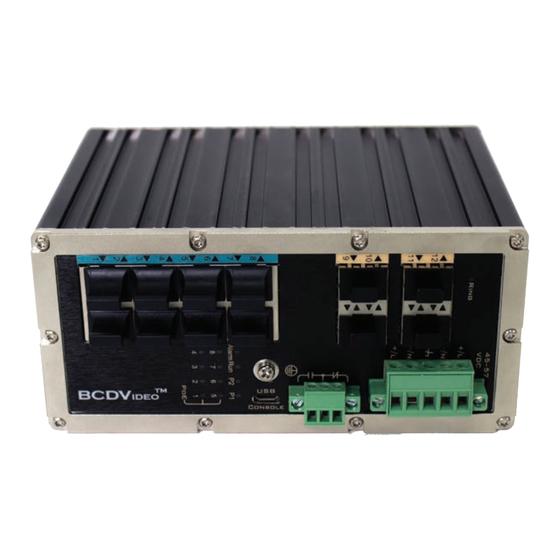

BCDVideo BCD-RGD-804P-MT User Manual

Industrial gigabit ethernet switch with poe+
Hide thumbs Also See for BCD-RGD-804P-MT:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
+1 847. 205.1922
info@bcdvideo.com
www.bcdvideo.com
BCD214-RGD-804P-MT
USER GUIDE
1

Advertisement

Table of Contents
loading

Related Manuals for BCDVideo BCD-RGD-804P-MT

Summary of Contents for BCDVideo BCD-RGD-804P-MT

  • Page 1 +1 847. 205.1922 info@bcdvideo.com www.bcdvideo.com BCD214-RGD-804P-MT USER GUIDE...

  • Page 2: Table Of Contents

    BCD-RGD-804P-MT table of contents WEB Configuration Preparing and Entry 1.1.1 Switch Default Configuration 1.1.2 Computer basic configuration requirement 1.1.3 Establish network connection 1.1.4 Check network weather connect between computer and switch 1.1.5 Login switch management interface Web management interface 1.2.1 Basic information 1.2.2...

  • Page 3: Web Configuration

    BCD-RGD-804P-MT 1 WEB configuration Preparing and Entry Configure the switch through Web pages, this chapter will take you through the equipment configuration process. After completing the hardware installation, you need to ensure that the computer networks parameters to meet certain conditions before accessing the Settings page.

  • Page 4: Check Network Weather Connect Between Computer And Switch

    BCD-RGD-804P-MT 1.1.4 Check network whether connect between computer and switch Use the ping command of Operating System, enter switch’s IP address, if reply normally, then network connectivity; otherwise, check the network connection. 1.1.5 Login switch management interface Running the browser, enter the switch default IP address (192.168.0.240) in address column, click Enter. Login dialog box, as shown below, enter your user name and password (the default user name: admin, password: admin), click the OK button or directly enter into the system configuration page.

  • Page 5: Web Management Interface

    BCD-RGD-804P-MT Web Management Interface 1.2.1 Basic information Switch Configuration page is divided into Configuration, Manager, Diagnostics, Maintenance of four parts. As below: Port State Overview. This area displays the current status of the device connection port. When the indicator is green...
  • Page 6 BCD-RGD-804P-MT Configuration: Click the navigation column Configuration option, the system will expand to show the relevant configuration interface, users can set the inter- face-related functions. Monitor: Click on the navigation column Monitor option, the system will expand to show the relevant status interface, user-related functions can be provided in the interface.

  • Page 7: Configuration

    BCD-RGD-804P-MT 1.2.2 Configuration 1.2.2.1 System A. System Information Enter [System]→[Information] navigation column, enter the system contact, system name, system location, time zone offset system after setting, click [Save] button to complete the basic configuration information. Click [Reset] button, return to the data before system [Save]...
  • Page 8 BCD-RGD-804P-MT B. IP Address Configuration Enter → [IP] navigation column, the page used to configure the address of the device management. The current status ad- dress of the device, a mask, router will be displayed in the form. After modifying the contents of the form, click [Save] button to complete the address modification or click [Reset], it will be restored to the original value form content unmodified.
  • Page 9 BCD-RGD-804P-MT Click “Add Interface” Add a new IP interface. IP router = Interface items introduction: Interface items Configuration Introduction Factory Setting Delete Select / not selected Select this option to delete an existing IP route. not selected Network IP address The destination IP network or host address of this route.
  • Page 10 BCD-RGD-804P-MT D. Log Server Configuration Enter [System] → [Log] navigation column, log configuration page, you can configure a remote logging server information, the device logs information [Save] to a remote server, providing backup viewing. Select the server mode, set the server address, select the log level, click [Save] button to complete the system logging configuration.
  • Page 11 BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting Port Physical port number Link Port status display, a red light indicates that the link is dis- connected status, green indicates normal connection link Speed Current Info/Warning/Error Display port status and mode...
  • Page 12 BCD-RGD-804P-MT 5.2.2.3 Security A. System password configuration Enter [Switch] → [User] navigation column, this page is used to add users, change user account password; important to remember the new password, the password is lost login prevent equipment failure. Interface items...
  • Page 13 BCD-RGD-804P-MT Modify the account password In the User Interface, click the account that you want to modify; Interface items introduction: Interface items Introduction Old Password Enter the password currently used, if the old password is entered incorrectly, the new password is not enabled New Password Enter the new password, the length of the bit characters <0-30>...
  • Page 14 BCD-RGD-804P-MT Interface items Configuration Introduction Factory setting Client Console/http As client user in console / web / telnet / ssh mode access system Methods none/local/radius After users access the system the authentication local modes: non-authentication / local authentica- tion / remote server authentication, you can...
  • Page 15 BCD-RGD-804P-MT D. Access management configuration Enter [Switch] →[Access Management] navigation column,Page is used to regulate the access management. Select Open access control management mode, click on the “Add New Entry” button, typing “Start IP Address (beginning IP address)”, “End IP Address (End IP address)”, select “HTTP / HTTPS”, “SNMP”, at least select a permissible service.
  • Page 16 BCD-RGD-804P-MT Interface items Configuration Introduction Factory setting Mode Disable/Enable Indicates the SNMP mode operation. Enable Version SNMP V1/ Indicates the SNMP supported version. SNMP V2C SNMP V2C/ SNMP V3 Read Community 0-255 string Indicates the community read access string to per- mit access to SNMP agent.
  • Page 17 BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting Mode Disable/Enable Indicates the trap mode operation. Possible modes are: Disable Enabled: Enable SNMP trap mode operation. Disabled: Disable SNMP trap mode operation. Add New Entry: add button, Click to expand Trap configuration view.
  • Page 18 BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting Trap Config name 0~255 Byte Indicates which trap Configuration's name for configuring. The allowed string length is 1 to 255, and the allowed content is ASCII characters from 33 to 126.
  • Page 19 BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting Community 0~255 byte Community (Authenticate string) Source IP IP address Community Source IP address 0.0.0.0 Source Mask Subnet Mask Community Source Mask 0.0.0.0 D. SNMP Users Configuration Enter [SNMP Configuration] → [Users] navigation column, Configure SNMPv3 user table on this page. Configure Authentication...
  • Page 20 BCD-RGD-804P-MT E. SNMP Group Configuration Enter [SNMP configuration] → [Groups] navigation column, configure SNMPv3 group table on this page, This function is used to set some of these groups and the security model, the authentication name. The Page Setup group, as can select use group in Snmp-Access (Snmp Access Settings) page, out in option “Group Name”...
  • Page 21 BCD-RGD-804P-MT Interface items Introduction: Interface items Configuration Introduction Factory setting View Name 0-255 byte View name default_view View Type Included/excluded View only included/exclude OID subtree node Included OID Subtree Use "," separated string of numbers OID Mark Default_rw_group G. SNMP Access Configuration Enter [SNMP configuration] →...
  • Page 22 BCD-RGD-804P-MT 5.2.2.5 Network A. NAS Configuration This page allows you to configure the IEEE 802.1X and MAC-based authentication system and port settings. The IEEE 802.1X standard defines a port-based access control procedure that prevents unauthorized access to a network by requiring users to first submit credentials for authentication. The IEEE802.1X standard defines port-based operation, but non-standard variants overcome security limitations as shall be explored below.MAC-based authentication allows for authen-...
  • Page 23 BCD-RGD-804P-MT Interface items Introduction: Interface items Configuration Introduction Factory setting Mode Disabled/Enabled Indicates if NAS is globally enabled or disabled on Disabled the switch stack. Reauthentication Enabled Check / uncheck Once selected, after the authentication is successful, Uncheck a set time after the Reauthentication Period, will be...
  • Page 24 BCD-RGD-804P-MT System configuration interface items introduction; Interface items Configuration Introduction Factory setting Mode Disabled/Enabled Indicates if NAS is globally enabled or disabled on the Disabled switch stack. Reauthentication Enabled Check / uncheck Once selected, after the authentication is successful, uncheck...
  • Page 25 BCD-RGD-804P-MT B. ACL (Access Control List) Configuration ACL Port Configuration Enter [ACL configuration] → [Ports] navigation column, Configure the ACL parameters (ACE) of each switch port. port only can receive the frames matching ACE parameter. Also define eight per port policy number, each policy is defined different content, you can configure the following parameters Series: Action , Permit / Deny to specify the type of data packet forwarding, Rate Limiter ID , Port Redirect , 16 bandwidth control policies for network security configuration page definitions;...
  • Page 26 BCD-RGD-804P-MT Interface items Introduction: Interface items Configuration Introduction Factory setting Port 1-n (Number of physical ports) Number for Switch To configure the port Policy ID 0-255 Select the policy to apply to this port Action Permit/Deny Select filter out traffic is forwarded or blocked...
  • Page 27 BCD-RGD-804P-MT Interface items Introduction: Interface items Configuration Introduction Factory setting Rate Limiter ID 1-16 ACL rate limiter ID in use 1-16 Rate 0-3276700/PPS Rate value configure 0,100,200,300…10000000kbps Unit pps/kbps Rate unit: pps: packets / sec Kbps: kilobytes / sec. Click [Save] button when the configuration is complete ; Click [Reset] to return to the default values.
  • Page 28 BCD-RGD-804P-MT Interface items Configuration Introduction Factory setting Ingress Port All/Port1-n(Number of physical ports) All: ACE matching all Ingress port Port1-n: ACE matching a Ingress port Policy / Bitmask Policy: 0-255 Designation ACE strategies code and bit Bitmask: 0x0-0xff mask Frame Type...
  • Page 29 BCD-RGD-804P-MT 5.2.2.6 AAA authentication authorization accounting configuration Enter [AAA configuration] navigation column. If you use a remote RADIUS authentication server, you can configure corresponding RADIUS server parameters via this page, also can configure multiple servers, parameters include common parameters for all servers and each server’s private parameters.
  • Page 30 BCD-RGD-804P-MT Privacy server configuration Interface items introduction: Interface items Configuration Introduction Factory setting Timeout 1-1000 second wait for the server response time before Retransmission request Retransmit 1-1000 The maximum number of retransmissions request Deadtime 0-1440 min intervals of a request after the request fails...
  • Page 31 BCD-RGD-804P-MT 5.2.2.7 Aggregation A. Static Aggregation Enter [Aggregation] → [Static] navigation column, The switch supports four kind Hash algorithm, four kinds of algorithms mode can check, combination computing. Support 5 groups aggregation, each supports up to 10 ports. as shown: 1-2 opening set of aggregation;...
  • Page 32 BCD-RGD-804P-MT Aggregation algorithm mode: Interface items introduction: Interface items Configuration Introduction Factory setting Source MAC Address Select/not select The Source MAC address can be used to calculate the not select destination port for the frame. Check to enable the use of the Source MAC address, or uncheck to disable.
  • Page 33 BCD-RGD-804P-MT B. LACP Enter [Aggregation] → [LACP] navigation column, The switch supports dynamic aggregation port, after port enable LACP, Aggregation of both devices via protocol interaction gathering information, according to the parameters and status, auto- matic matching link aggregation together send and receive data. After forming aggregation, switching equipment mainte- nance aggregation link state, when the two sides configuration changes, automatically adjust or dissolve aggregated links.
  • Page 34 BCD-RGD-804P-MT Interface items Configuration Introduction Factory setting Port 1-n (Number of physical The switch port number. ports) LACP Enabled Select/not select Controls whether LACP is enabled on this switch port. not select LACP will form an aggregation when 2 or more ports are connected to the same partner.
  • Page 35 BCD-RGD-804P-MT General Settings: Interface items introduction: Interface items Configuration Introduction Factory setting Enable Loop Disabled/Enabled Controls whether loop protection is enabled on this switch Disabled Protection port. Transmission 1-10 second The interval between each loop protection PDU sent on Time each port.
  • Page 36 BCD-RGD-804P-MT Basic configuration: Interface items introduction: Interface items Configuration Introduction Factory setting Protocol Version STP/RSTP Spanning tree protocol version RSTP Bridge Priority 0/4096/…../61440 Controls the bridge priority. Lower numeric values have 32768 better priority. The bridge priority plus the MSTI instance number, concatenated with the 6-byte MAC address of the switch forms a Bridge Identifier.
  • Page 37 BCD-RGD-804P-MT B. STP port configuration Enter [Spanning Tree configuration] → [CIST Ports] navigation column, All ports by default are run Spanning Tree Protocol to prevent loops. Port path cost default is Auto, users can manually specify, among 1-200000000, the smaller the value the more priority path.
  • Page 38 BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting Port 1- n Switch port number STP Enabled Select/not Select off/ on port STP Enabled Select Path Cost Auto/ Specific:1- Path cost, when selecting Auto the system will be based...
  • Page 39 BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting Snooping tick/not tick Enable the Global IGMP Snooping, disabled by default not tick Enabled Unregistered tick/not tick ON / OFF port flooding control, when IGMP Snooping is en- tick IPMCv4 Flooding...
  • Page 40 BCD-RGD-804P-MT B. IGMP Snooping VLAN Configuration Enter [IGMP Snooping Configuration] → [VLAN Configuration] navigation column, Click Add New IGMP VLAN button, enter VLAN ID 1-2, tick Snooping enable option, click [Save] button to complete the IGMP Snooping VLAN configuration. Click the Delete button before corresponding VLAN ID, click [Save] button to complete the IGMP Snooping vlan deleted.
  • Page 41 BCD-RGD-804P-MT 5.2.2.11 LLDP Configuration Enter [LLDP Configuration] → [LLDP] navigation column, The switch supports LLDP (Link Layer Discovery Protocol), can be major capacity of the terminal equipment, management addresses, device identification, interface identifications and other information organized into different TLV (Type / Length / Value: type / length / value) and Package (: link layer discovery pro-...
  • Page 42 BCD-RGD-804P-MT LLDP Parameter configuration: Interface items introduction: Interface items Configuration Introduction Factory setting Tx Interval 5-32768 second The time interval of switch to send LLDP frames to the neighbor Tx Hold 2-10 times Multiple frame interval for configuring LLDP frame effective...
  • Page 43 BCD-RGD-804P-MT 5.2.2.12 POE Enter [POE] navigation column, Set the value of the PoE.
  • Page 44 BCD-RGD-804P-MT Power Over Ethernet Configuration: Interface items introduction: Interface items Introduction Factory setting Reserved Power Class/Allocating /LLDP-MED Class determined by Power Management Actual Consumption/Reserved Power Reserved Power Mode Tx Delay After LLDP configuration change, time to re-transmission and the last time interval between frames LLDP, <= 1/4 Tx Interval...
  • Page 45 BCD-RGD-804P-MT Timeout configuration: Interface items introduction: Interface items Introduction Factory setting Disable automatic aging. Tick/not tick After tick the switch a certain time is not automatically not tick remove the MAC address not used in MAC address table Age time...
  • Page 46 BCD-RGD-804P-MT Static MAC address configuration: Interface items introduction: Interface items Introduction Factory setting Delete Click, delete the corresponding table VLAN ID 1-4095 Added MAC address belong to VLAN ID MAC Address MAC address MAC address add to MAC address table...
  • Page 47 BCD-RGD-804P-MT Interface items introduction: Interface items Introduction Factory setting Delete Click, delete the corresponding table VLAN ID 1-4095 Added MAC address belong to VLAN ID MAC Address MAC address MAC address add to MAC address table 00-00-00-00-00-00 Port Members Recheck 1-n...
  • Page 48 BCD-RGD-804P-MT B. VLAN Configuration Enter [Configuration] → [VLANs Configuration] navigation column, can create / modify VLAN, and added / edited the port to the appropriate VLAN. If just use common VLAN function, this page only need to configure the default VLAN number (Port VLAN) ,other functions without changes, except if you want to customize VLAN settings at Port VLAN , need to add a new VLAN number added to back inside of Allowed Access vlans ;...
  • Page 49 BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting Allowed Access vlans VLAN port Allowed access VLAN ID Ether type for Custom S-Ports definition mode Port when as service port the VLAN Ethernet type 88A8 S-ports Port Ethernet port ID...
  • Page 50 BCD-RGD-804P-MT 5.2.2.15 Private VLANs configuration A. Private VLAN membership configuration Enter [Private VLANs configuration] →[PVLAN Membership] navigation column, click [Add New Private VLAN] button, entry PVLAN ID to 2 and 3,select the port membership, click [Save]”button to compete the private VLAN membership configuration.
  • Page 51 BCD-RGD-804P-MT B. Private VLAN port isolation configuration Enter [Private VLANs configuration] → [Port Isolation] navigation column, To implement Layer 2 isolation between packets, and different ports can be configured to different VLAN, but do not waste the limited VLAN resources, using port isolation feature, achieving isolation between ports within the same VLAN, users only need to put the port to the isolation group, you can achieve isolation between Layer 2 data within the isolation group port.
  • Page 52 BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting Port 1- n configure the switch port number QoS class Qos class number, 0 is the lowest priority category DP level Frame discard class, 0: no dropped frames; 1: drop frames during congestion 802.1Q VLAN priority tag frames, if the port is VLAN aware...
  • Page 53 BCD-RGD-804P-MT B. Qos ingress port Policing Enter [Port Policing] navigation column, Configure the port rate of Qos policing,main configure items: Rate, Flow Control Interface items introduction: Interface items Configuration Introduction Factory setting Port 1- n Switch Port ID need to configure...
  • Page 54 BCD-RGD-804P-MT C. Qos egress port schedulers Enter [Port Scheduler] navigation column, show QoS port data flow egress schedulers. Interface items introduction: Interface items Configuration Introduction Factory setting Port 1- n Switch Port ID need to configure Mode Strict Priority /...
  • Page 55 BCD-RGD-804P-MT Scheduler Mode configure to Weighted, interface show as below:...
  • Page 56 BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting Scheduler Mode Strict Priority /Weighted Schedule mode optional Strict Priority Queue Shaper Enable Select/not select On / Off queue shaper enable not select Queue Shaper Rate 100-1000000/ 1-3300 Queue rate configure:...
  • Page 57 BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting Port Strict Priority /Weighted Schedule mode selected Strict Priority Shapers Qn shows each queue configuration Shapers Port shows each port configuration E. Qos control list Enter [QoS Control List] navigation column ,configure QoS control list. Click on the table rightmost button, the page will go...
  • Page 58 BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting QCE# QoS list item Index Port All/ port no Includ port Key Parameters Frame Any/Ethernet/LLC/SNAP/ Select the recognized frame type for the input data Type IPV4/IPV6 flow Key Parameters SMAC...
  • Page 59 BCD-RGD-804P-MT Interface items Configuration Introduction Factory setting Frame Type Data frame type, Unicast; Multicast: Broadcast Enable Select/not select On/off storm control Not select Rate 1-1024Kpps Select the data rate upper limit 1pps 5.2.2.17 Mirroring configuration Enter [Mirroring] configuration navigation column, Port mirror-...

  • Page 60: Monitor(Status Display)

    BCD-RGD-804P-MT Interface items introduction: Interface items Configuration Introduction Factory setting Port to mirror to Disabled/1- n Disabled Close mirroring function, 1-n select the Disabled destination port Port 1- n Switch physical port number Mode Disabled Close Port Mirroring Disabled Rx Only...
  • Page 61 BCD-RGD-804P-MT Interface items introduction: Interface items Introduction Contact System Configuration menu configure: maintenance personnel contact Name System Configuration menu configure: switch name Location System Configuration menu configure: switch location MAC Address Switch MAC address Chip ID Switch chip ID System Date...
  • Page 62 BCD-RGD-804P-MT Interface items introduction: Interface items Introduction Level Select log level:ALL;Info:;Warning;Error Clear Level Remove log level:ALL;Info;Warning;Error; Log index ID Level Log level Time Log Time date Message Log message Page operating button: Refresh Clear |<<: view the first log <<: view the Previous log >>: view the next log...
  • Page 63 BCD-RGD-804P-MT Interface items introduction: Interface items Introduction Select the log index to view Level Log level Time Log generate time Message Log message 5.2.3.2 Thermal Protection Enter [Thermal Protection],display the status information of device temperature on page. Interface items introduction:...
  • Page 64 BCD-RGD-804P-MT 5.2.3.3 Ports A. Port status Enter [Ports] → [State] navigation column, entry port state overview page, a graphical interface that shows the connection status of the switch ports: B. Port data traffic overview Enter [Ports] → [Traffic Overview] navigation column, In the Port Statistics page, you can see the number of packets trans- mitted and received for each port, the number of bytes transmitted and received error packets.
  • Page 65 BCD-RGD-804P-MT Interface items introduction: Interface items Introduction Port Switch physical port number Packets Received Packets Received Packets Transmitted Packets Transmitted Bytes Received Bytes Received Bytes Transmitted Bytes Transmitted Errors Received Errors Received Errors Transmitted Errors Transmitted Drops Received Drops Received...
  • Page 66 BCD-RGD-804P-MT Interface items introduction: Interface items Introduction Port Port ID Qn Rx The number of queue received frame QnTr The number of queue transmit frame Click the port number, enter the corresponding port QoS status in the detailed statistics page, you can query detailed oper- ation of each port, including receiving the transmitted packets, broadcast packets, error packets, etc., to facilitate network...
  • Page 67 BCD-RGD-804P-MT Total of transmitting and receiving packets: Interface items introduction: Interface items Introduction Rx Packages Total Rx Packages Rx Octets Total Rx Octets Rx Unicast Total Rx Unicast Rx Multicast Total Rx Multicast Rx Broadcast Total Rx Broadcast Rx Pause...
  • Page 68 BCD-RGD-804P-MT Transmit / receive queue transmit / receive the frame number: Interface Item Description: Interface items Introduction Qn Rx Receiving frame number in queue Qn Rx Transmit frame number in queue Transmitting / receiving error count: Interface Item Description: Interface items...
  • Page 69 BCD-RGD-804P-MT Interface items introduction: Interface items Introduction User User name QCE# QoS list index Frame Type Identify the input frame type:Any/Ethernet/LLC/SNAP/IPV4/IPV6 Port The Qos controls apply to which ports Action Class To add QoS type value for" parameter configuration to match the input frame,"...
  • Page 70 BCD-RGD-804P-MT 5.2.3.5 Security A. Access Management Statistics Enter [Access Management Statistics] navigation column, display access management statistics on page. Use can select<Auto-refresh>button to refresh data in real time, Can also be manually Click <Refresh> button to see the new data, <Clear> button to clear the statistics function provides.
  • Page 71 BCD-RGD-804P-MT Interface items introduction: Interface items Description User Module Name The module name can request a port security services Abbr User name Single-letter abbreviations Port Switch physical port number Users User module abbreviations MAC Count The current number of learned MAC addresses Port state Enter [Port Security] →...
  • Page 72 BCD-RGD-804P-MT Interface items introduction: Interface items Introduction Port Switch physical port number, click to the details page Admin State adopt authentication mode Force Authorized: In this mode, when a client is connected to the port, the switch will auto- Force Unauthorized: In this mode, when a client is connected to the port, the switch will 802.1X:...
  • Page 73 BCD-RGD-804P-MT ACL Status Enter [ACL Status] navigation column, on statistics page, can view related security information, Use view all kinds network security information through select the drop-down navigation Combined, Static, IPMC, LOOP, conflict. User can select <Auto-refresh>button to refresh data in real time, Can also be manually Click <Refresh> button to see the new data.
  • Page 74 BCD-RGD-804P-MT C. AAAstatus Enter [AAA] → [RADIUS Overview] navigation column, If the network has been configured remote server radius, you can view the relevant certification packet statistics from this page. Interface items introduction: Interface items Introduction NAS service ID, click to detail...
  • Page 75 BCD-RGD-804P-MT Accept packet: interface items description: Interface items Description Access Accepts Receiving packet number from server Access Rejects Receiving packet number from server Access Challenges Receiving access password packets from server Malformed Access Responses Receiving packets number which non-compliant and unknown from server...
  • Page 76 BCD-RGD-804P-MT 5.2.3.6 LACP state A. LACP system status Enter [LACP] → [System Status] navigation column, on this status page, can see the operating status on the port agreement, the group number of automatic aggregation, local port, peer communication key member number and other information.
  • Page 77 BCD-RGD-804P-MT Interface items description: Interface items Description Port Switch physical port ID LACP LACP status【Yes: LACP on and connected port;No【LACP off and port disconnected Communication key Aggr ID Aggregation Examples ID Partner System ID Aggregation system ID C. LACP port statistics Enter [LACP] →...
  • Page 78 BCD-RGD-804P-MT 5.2.3.7 Loop Protection Enter [Loop Protection] navigation column, display loop protection status on page,User can select <Auto-refresh>button to refresh data in real time, Can also be manually Click <Refresh> button to see the new data. Interface items description: Interface items...
  • Page 79 BCD-RGD-804P-MT STP bridge status detail :Interface items description: Interface items Description Bridge Instance STP bridge instance type Bridge ID Bridge instance ID Root ID Current root ID Root Cost Root path cost Root Port Designated port for the root bridge...
  • Page 80 BCD-RGD-804P-MT CIST port and aggr status: Interface items description Interface items Description Port Switch STP valid port number Port ID Port ID to be used for STP Role The current use of STP port role State The current STP port status...
  • Page 81 BCD-RGD-804P-MT Interface items introduction: Interface items Description Port switch physical port no CIST Role current STP port role CIST State current STP port status Uptime The last uptime of bridge port C. Spanning Tree Port statistics Enter [Spanning Tree] → [Port Statistics] navigation column, this page shows the STP packet statistics, User can select<Auto-refresh>button to refresh data in real time, Can also be manually Click <Refresh>...
  • Page 82 BCD-RGD-804P-MT 5.2.3.9 IPMC status A. IGMP Snooping status Enter [IGMP Snooping] → [Status] navigation column, show IGMP Snooping on page, User can select<Auto-refresh> button to refresh data in real time, Can also be manually Click <Refresh> button to see the new data.
  • Page 83 BCD-RGD-804P-MT Router port: Interface items instruction: Interface items Description Port Switch port ID Status Indicator route port B. IGMP Groups Information Enter [IGMP Snooping] → [Groups Information] navigation column, show IGMP Snooping group information on page, User can select<Auto-refresh>button to refresh data in real time, Can also be manually Click <Refresh> button to see the new data.
  • Page 84 BCD-RGD-804P-MT 5.2.3.10 LLDP status A. LLDP neighbors Enter [LLDP] → [Neighbors] navigation column, after the device switched LLDP (Link Layer Discovery Protocol) function, you can view the neighbor information on this page, including the port, the system name and other information. User can select<Auto-refresh>button to refresh data in real time, Can also be manually Click <Refresh>...
  • Page 85 BCD-RGD-804P-MT B. LLDP Port status Enter [LLDP] → [port status] navigation column, page show LLDP counter, User can select <Auto-refresh> button to refresh data in real time, Can also be manually Click <Refresh> button to see the new data. Global Counter : Interface items instruction:...
  • Page 86 BCD-RGD-804P-MT Local Counter : Interface items instruction: Interface items Description Local Port Port of local received and transmitted frame Tx Frames The number of LLDP frames transmitted Rx Frames The number of LLDP frames received Rx Errors The number of wrong LLDP frames received...
  • Page 87 BCD-RGD-804P-MT Interface items instruction: Interface items Description Type MAC address type of Related MAC items,Static;Dynamic VLAN VLAN ID of Related MAC items MAC address MAC address of Related MAC items Port Members Corresponding port of Related MAC items 5.2.3.12 VLANs status A.
  • Page 88 BCD-RGD-804P-MT B. VLAN port Enter [VLANs] → [VLAN Port] navigation column, page show VLAN port status, Dropdown navigation options Static, NAS, MSTP, Combined. User can select<Auto-refresh>button to refresh data in real time, Can also be manually Click <Refresh> button to see the new data.

  • Page 89: Diagnostics

    BCD-RGD-804P-MT 5.2.4 Diagnostics Diagnostics navigation column, including: ping and VeriPHY function. 5.2.4.1 Ping Enter [Ping] navigation column, This can check the network connec- tivity, if the network is normal, ping detection will respond to ICMP echo packets. Enter the IP address, PING length, count, spacing pa- rameters click <Start>...
  • Page 90 BCD-RGD-804P-MT 5.2.4.2 VeriPHY Diagnostics Enter [VeriPHY diagnostics] navigation column, It can detect electrical cable ,communication under normal will show Ok Interface items instruction: Interface items Description Port Switch Ethernet port ID Pair A (B, C, D) Cable Differential pairs connected state...

  • Page 91: Maintenance

    BCD-RGD-804P-MT 5.2.5 Maintenance 5.2.5.1 Restart Device Enter [Restart Devic] Navigation Column, When restarted after set the system MAC address etc., it is recommended to restart the device to take effect. 5.2.5.2 Factory Defaults Enter [Factory Defaults] Navigation Column, When need to revert to the original system defaults can choose to restore the factory configuration functions.
  • Page 92 BCD-RGD-804P-MT B. Image Select Enter [Image Select],can activate the backup image. 5.2.5.4 Configuration Note: The device all changes need to be saved here, otherwise changes will not take effect; Enter [Configuration] → [Save startup-config] Navigation Column, Save the current configuration, if not save, restart device will not take effect on equipment configuration.

  • Page 93: Command Line Management

    BCD-RGD-804P-MT Enter [Configuration] → [Upload] Navigation Column, can upload the previous configure file to switch by upload function to achieve configuration updates. 2 Command Line Management Beside WEB management, Amber Series also support command line management Configure HyperTerminal 2.1.1 USB (115200-8-N-1) port connect with Device console port...
  • Page 94 BCD-RGD-804P-MT 1. There are many ways to access the serial management port of Switch. For example, Hyper Termi- nal, SecureCRT, Putty and so on. SecureCRT soft- ware will be used in the descrip- tion below. 2. Select the COM port to use, and click “OK.”...

  • Page 95: Login Equipment And Basic Command Query

    BCD-RGD-804P-MT 3. To powered the switch, you will see the following prompt message in serial terminal interface: Login equipment and basic command Query Note: The command can be entered only the first four characters, the other can be used as usual omitted;...

  • Page 96: Logout

    BCD-RGD-804P-MT 2.2.3 Logout Enter “/” Return to the root directory of the command prompt; then enter “Logout”, that is exit to the login screen; 2.2.4 Query / ModifyIP Command-line prompt to enter a user name and password, enter the appropriate commands into the relevant settings and queries.

  • Page 97: Technical Parameters

    BCD-RGD-804P-MT Technical Parameters Technical Ethernet standard 802.3 - 10Base-T, 802.3u - 100Base-TX, 100Base-FX, 802.3z - 1000Base-LX/SX, 802.3ab - 1000Base-TX, 802.3ad - Link Aggregation Control Protocol, 802.3x - Flow Control, 802.1D - Spanning Tree Protocol, 802.1p - Class of Service, 802.1Q - VLAN Tagging 802.1w - Rapid Spanning Tree Protocol,...
