UI Introduction

4.1 Home Screen

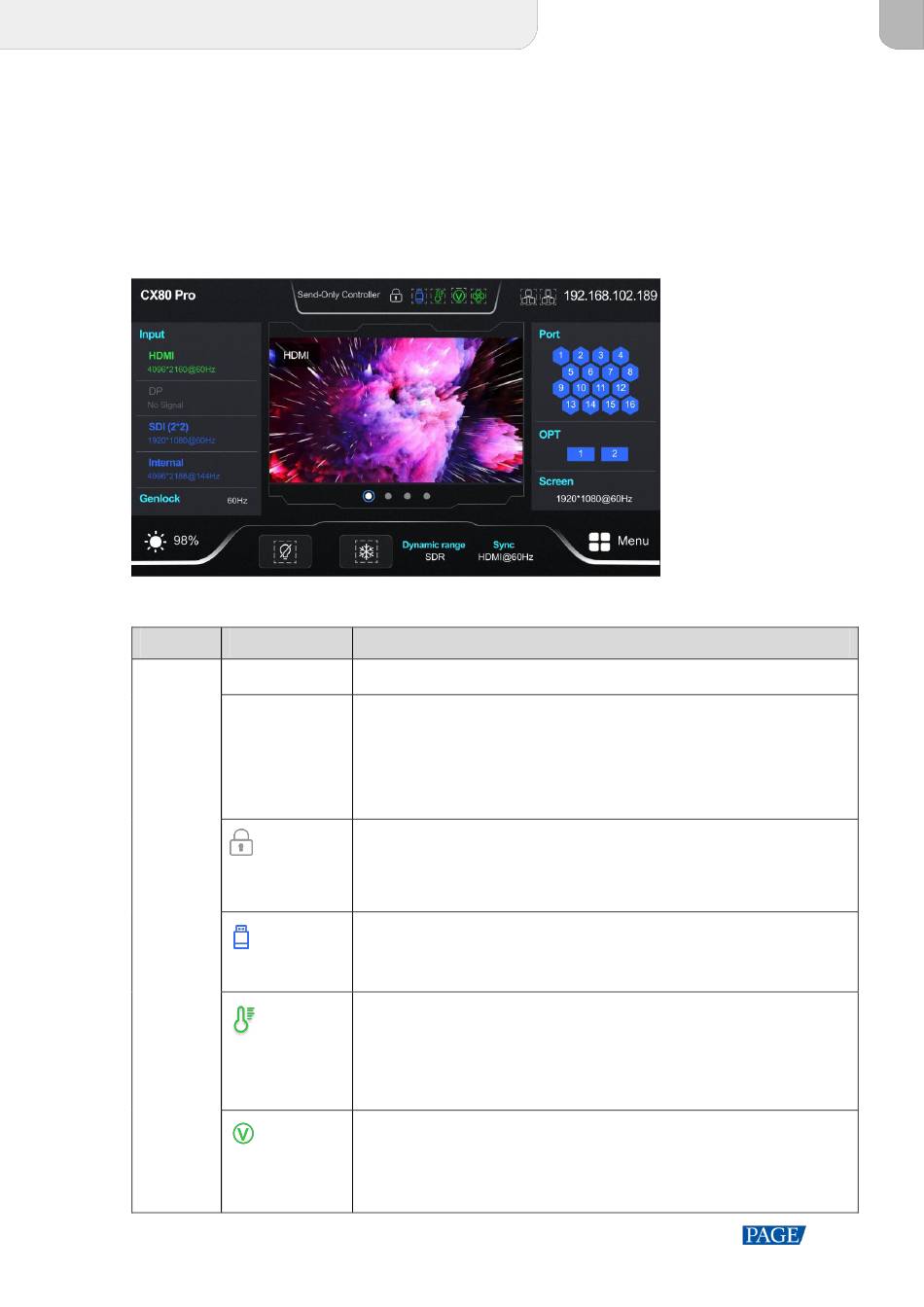

After the device is powered on, the home screen is displayed as follows, displaying device related information. The
CX80 Pro is equipped with a touch LCD on which users can tap related areas to directly enter the corresponding
settings page, making operating more convenient.
Figure 4-1 Home screen
Table 4-1 Home screen descriptions
Item Content
Top line CX80 Pro
Device working
mode
www.novastar.tech
Description
The device name
The current working mode of the device

All-In-One Controller: The video processing and sending functions are
available.

Send-Only Controller: Only the video sending function is available.
For related operations, please refer to
The device buttons and touch screen are locked. This icon is not displayed
when they are unlocked.
Hold down the knob and BACK button simultaneously for 5s or longer to lock
or unlock the touch screen and buttons.
The connection status of the USB drive

Blue: Connected

Not displayed: Not connected
The temperature inside the chassis

Green: The temperature is normal.

Yellow: Temperature alarm. The temperature exceeded the threshold range.

Red: Temperature alarm. The temperature exceeded the threshold range
significantly.
The supply voltage of the motherboard

Green: The voltage is normal.

Yellow: Voltage alarm. The voltage exceeded the threshold range.

Red: Voltage alarm. The voltage exceeded the threshold range significantly.
