Home Screen

After the MCTRL4K is powered on, its home screen appears, as shown in

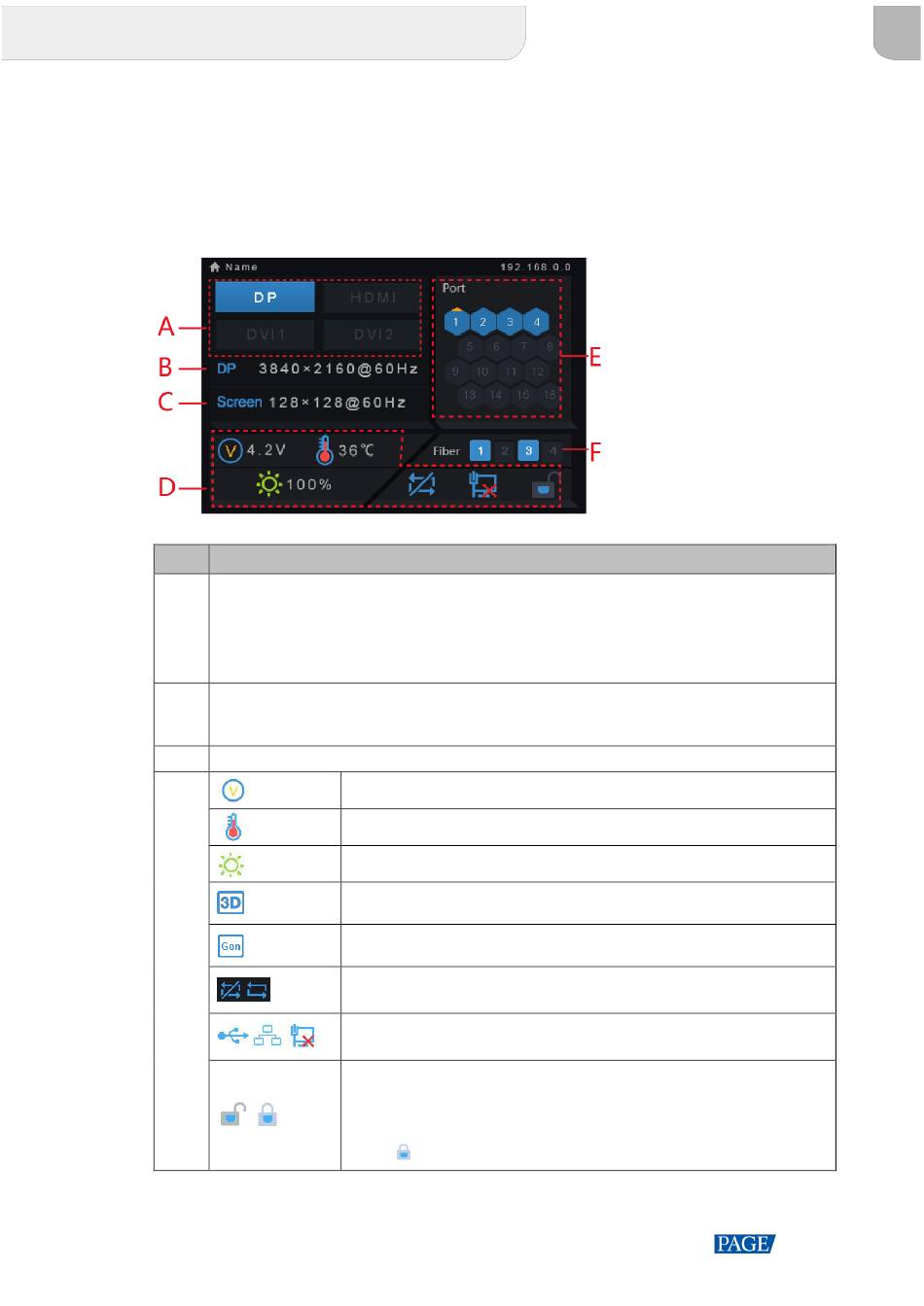

Figure 5-1 Home screen
Area Description:
The access status of inputs:

On: Input available
A

Off: Input unavailable
The interval between unplugging and plugging the DP input must be greater than 5s. Otherwise,
the DP input cannot be detected.
Display the current input information, including input type, resolution and frame rate.
B
In multi-card mode, both DVI1 and DVI2 have inputs. The information about the two DVI inputs will
be displayed alternately.
C Display the resolution and frame rate of the currently configured LED display.
D
/
/
www.novastar.tech
The supply voltage of the motherboard
The temperature inside the chassis
The LED display brightness
The 3D function is enabled (This icon is not displayed when the function is
disabled).
Genlock is connected (This icon is not displayed when Genlock is not
connected).
Current status of DVI1 and DVI2 inputs:
Not in sync/In sync
The connection status of control ports:
/
USB connected/Ethernet connected/Not connected
Front panel buttons unlocked/locked

Hold down the knob and BACK button simultaneously for 5s or longer to
lock or unlock the buttons.

After the buttons are locked, all the button operations will not take effect
and appears on the home screen.
MCTRL4K LED Display Controller User Manual
Figure 5-1.
