Home Screen

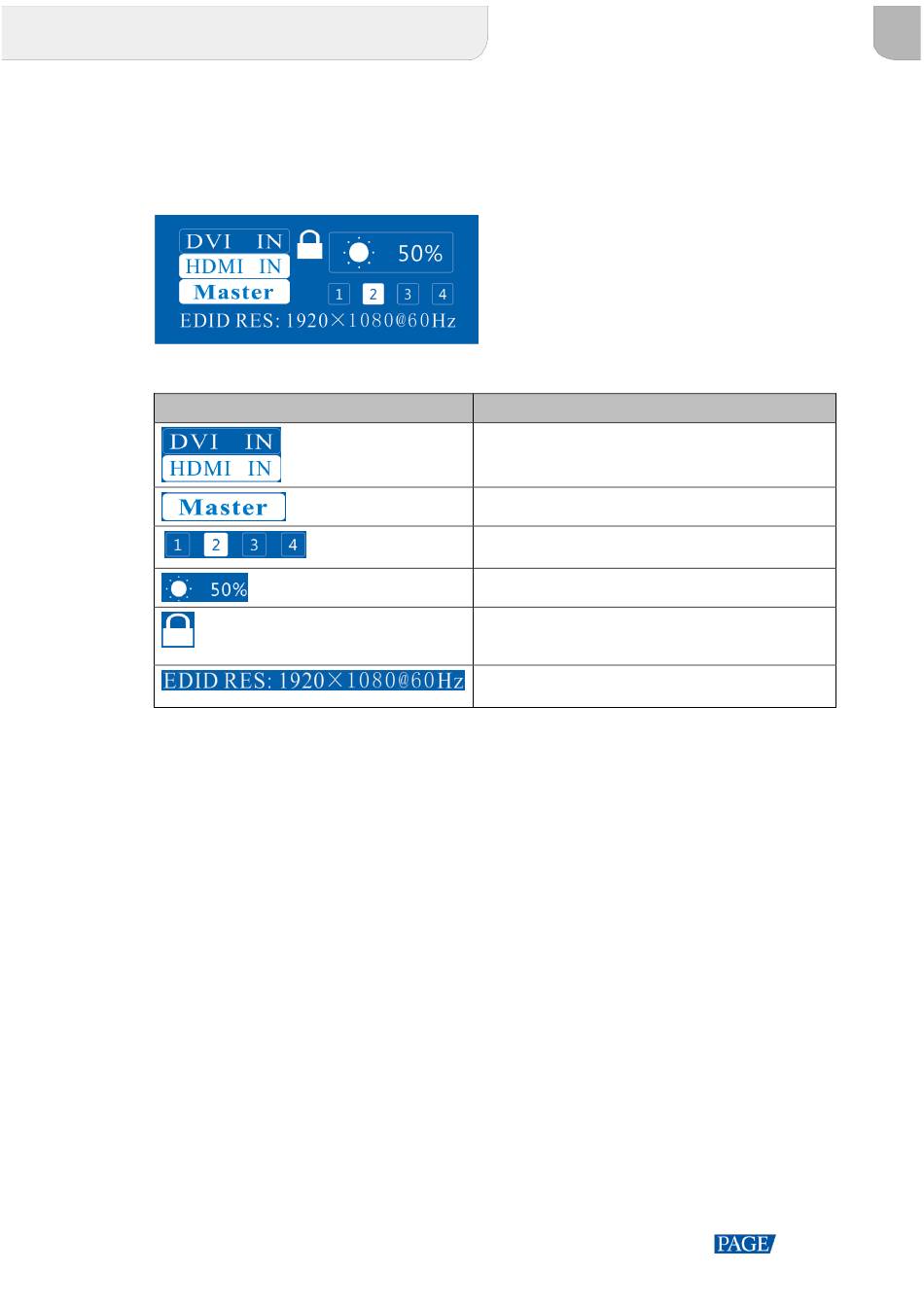

Figure 5-1 shows the home screen of the MCTRL660.
Figure 5-1 Home screen in the sending card mode
Figure 5-1 Home screen icon description
Icon
www.novastar.tech
MCTRL660 LED Display Controller User Manual
Description
Indicate that the HDMI connector has a video source
connected. It flashes when the video source has no
signal.
Indicate that the device is in the master mode.
These are the Ethernet output ports. Ethernet port 2 is
currently used for output.
The current screen brightness is 50%.
It is the button lock icon. When this icon appears, it
means that the knob and BACK buttons are currently
locked.
Indicate that the resolution is 1920×1080 pixels and the
frame frequency is 60 Hz.
