Home Screen

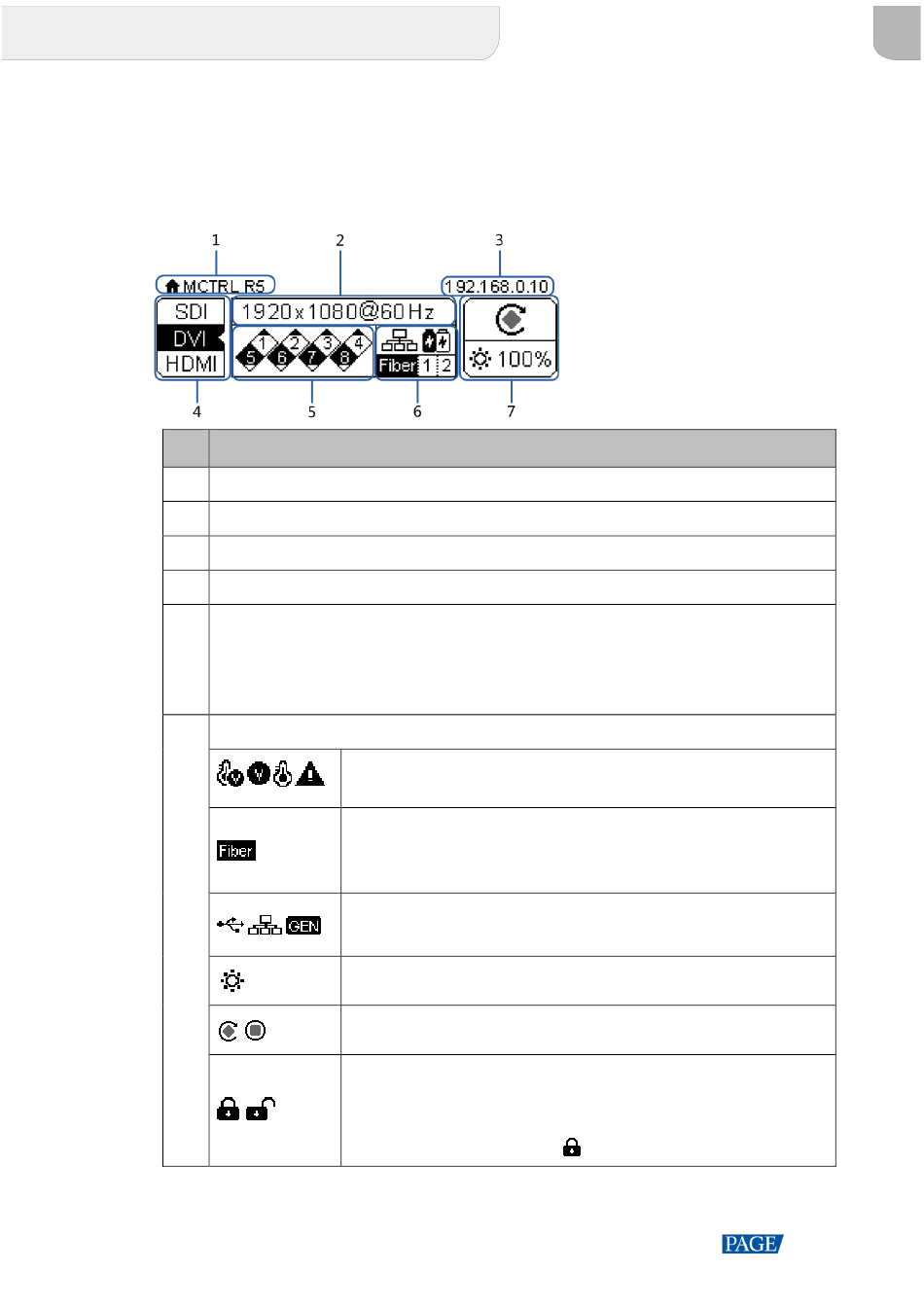

The figure below shows the home screen of the MCTRL R5.
No. Description
1 The device name
2 The resolution and refresh rate of the current input source
3 IP Address
4 Types of input sources supported and their connection statuses
5 The working status of the Gigabit Ethernet ports

Black: The Ethernet port connection works and the port serves as master.

White: The Ethernet port is not connected or the connection does not work.

A mark in top corner of icon: The Ethernet port connection works and is in redundancy mode.
6/7 Working status description:
/
1–2
/
/
/
www.novastar.tech
Normal voltage and temperature / voltage alarm / temperature alarm /
/ /
temperature and voltage alarm
Optical port working status:

Black: The optical port connection works and the port serves as master.

White: The optical port is not connected or the connection does not work.
Connection status of control ports:
/
USB connected / Ethernet connected / GENLOCK connected
Screen brightness
Image rotation enabled / disabled
Front panel buttons locked / unlocked
Hold down the knob and BACK button simultaneously for 3s to lock or unlock
all the front panel buttons. After the buttons are locked, all the button
operations will not take effect and
MCTRL R5 LED Display Controller User Manual
appears on the OLED screen.
