Enable Use Of Bit-Type Fan Speed Objects (For Control); Enable Use Of Bit-Type Fan Speed Objects (For Status) - IntesisBox IS-IR-KNX-1i User Manual

KNX – IR Universal AC
®
IntesisBox
The formula used to calculate the value to be set in the Control object is '100*(n+0,5)/N %', where n is the
current fan speed and N the maximum number of fan speeds.
On the other hand, the formula to calculate the status to be read according to the current value is '100*n/N',
where n is the current fan speed and N the maximum number of fan speeds.

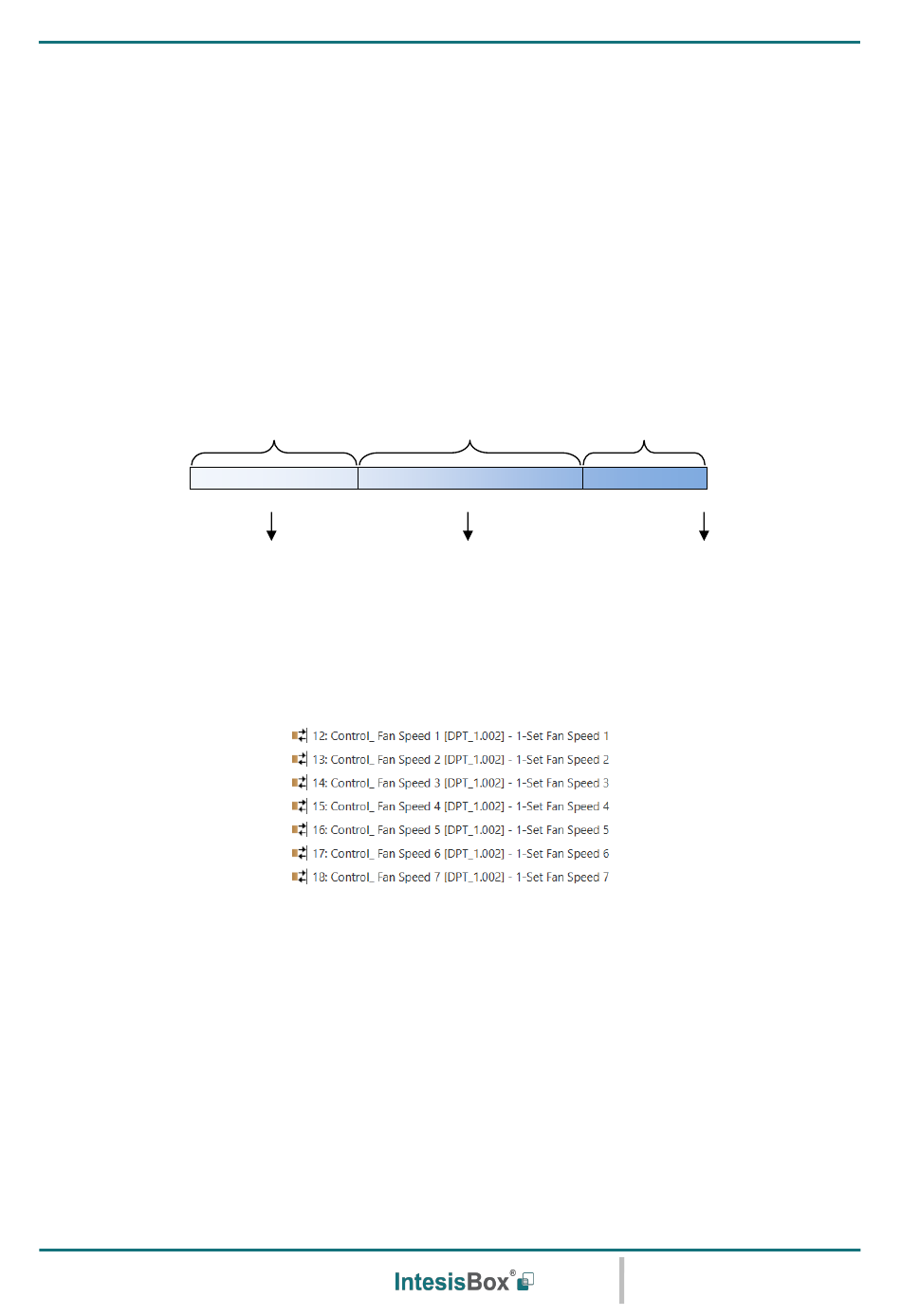

Check this example with 3 fan speeds:
When a value between 0% and 49% is sent to the Control_ object the first fan speed will be selected.
When a value between 50% and 83% is sent to the Control_ object, the second speed will be selected.
When a value between 84% and 100% is sent to the Control_ object, the third speed will be selected.
The Status_ object will return a 33% when the first speed is selected, a 67% for the second one and a 100%
for the third one.
0%

5.4.2 Enable use of bit-type Fan Speed objects (for Control)

This parameter shows/hides the bit-type Control_ Fan Speed objects.
If set to "no" the objects will not be shown.
o
If set to "yes" the Control_ Fan Speed objects for Speed 1, Speed 2 and Speed 3 (if available) will appear.
o
To activate a Fan Speed by using these objects a "1" value has to be sent.

5.4.3 Enable use of bit-type Fan Speed objects (for Status)

This parameter shows/hides the bit-type Status_ Fan Speed objects.
