Binary Input connection

IntesisBox IS-IR-KNX.1i interface is equipped with a Binary Input from factory. To use the built-in binary input
in all the IR WIFI Controllers, a standard 3,5mm stereo jack connector is required.

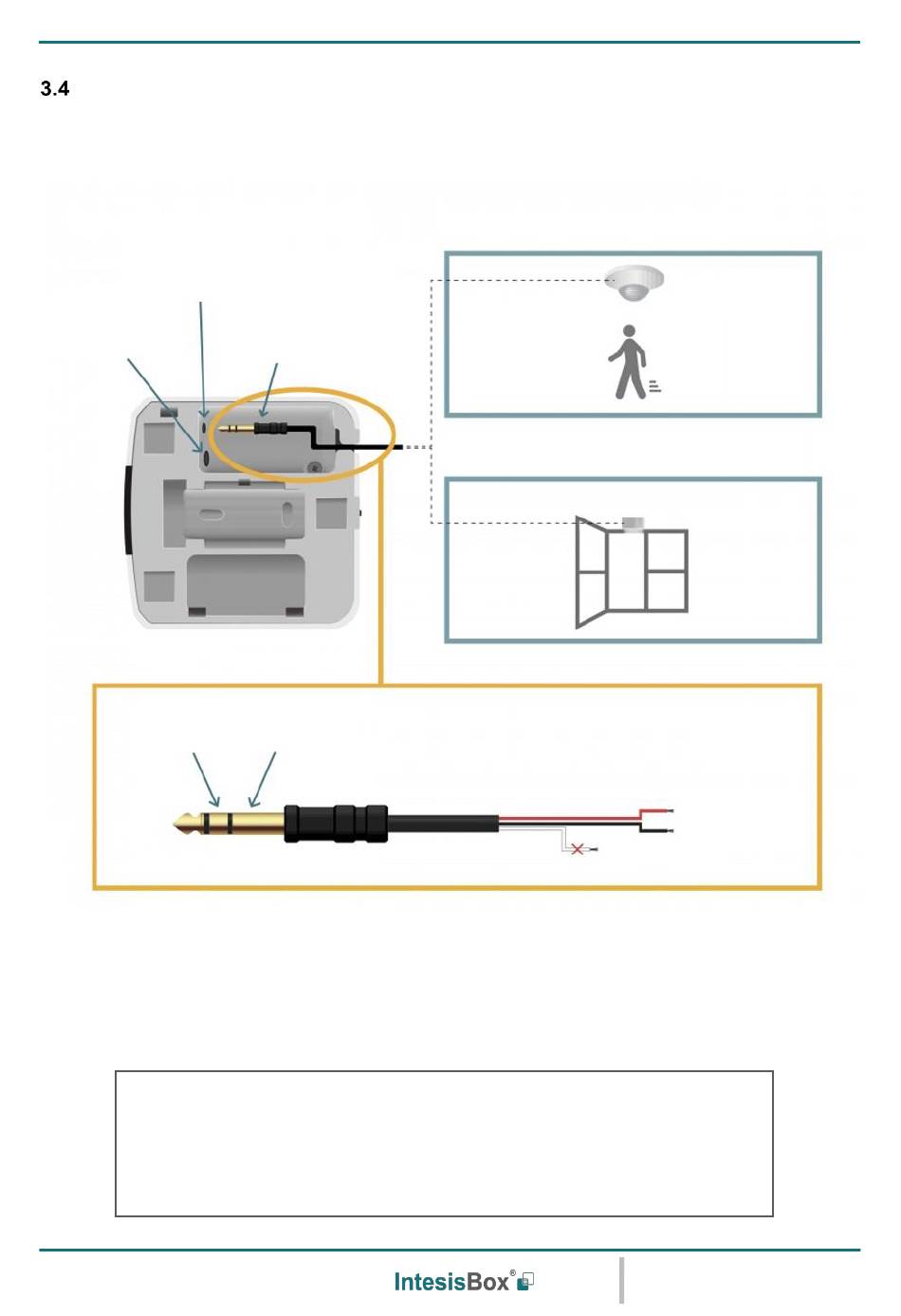

Connections will be as in the image below.
BINARY INPUT
CONNECTOR
KNX INPUT
CONNECTOR
RIGHT
CHANNEL COMMON
IMPORTANT NOTE: Please, note that you can only connect a presence sensor or a window contact
simultaneously. Both sensors cannot work together at same time.
Before proceeding, please check the technical specification of the binary input below:
Signal cable length: 5m unshielded, may be extended up to 20m with twisted
Compliant with the following standards:
IEC61000-4-2: level 4 – 15kV (air discharge) - 8kV (contact discharge)
MIL STD 883E-Method 3015-7: class 3B
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox ® is a registered trademark of Intesis Software SLU
STEREO JACK
(3,5 mm)
Binary Input connection
Figure 3.6
Potential free binary input
OPTION 1: PRESENCE DETECTOR
OPTION 2: WINDOW CONTACT
LEFT
URL
Email
tel
User's manual r1.0 eng
RIGHT
COMMON
(not used)
