Enable Use Of Bit-Type Vane U-D Objects (For Control); Enable Use Of Bit-Type Vane U-D Objects (For Status) - IntesisBox IS-IR-KNX-1i User Manual

KNX – IR Universal AC
®
IntesisBox

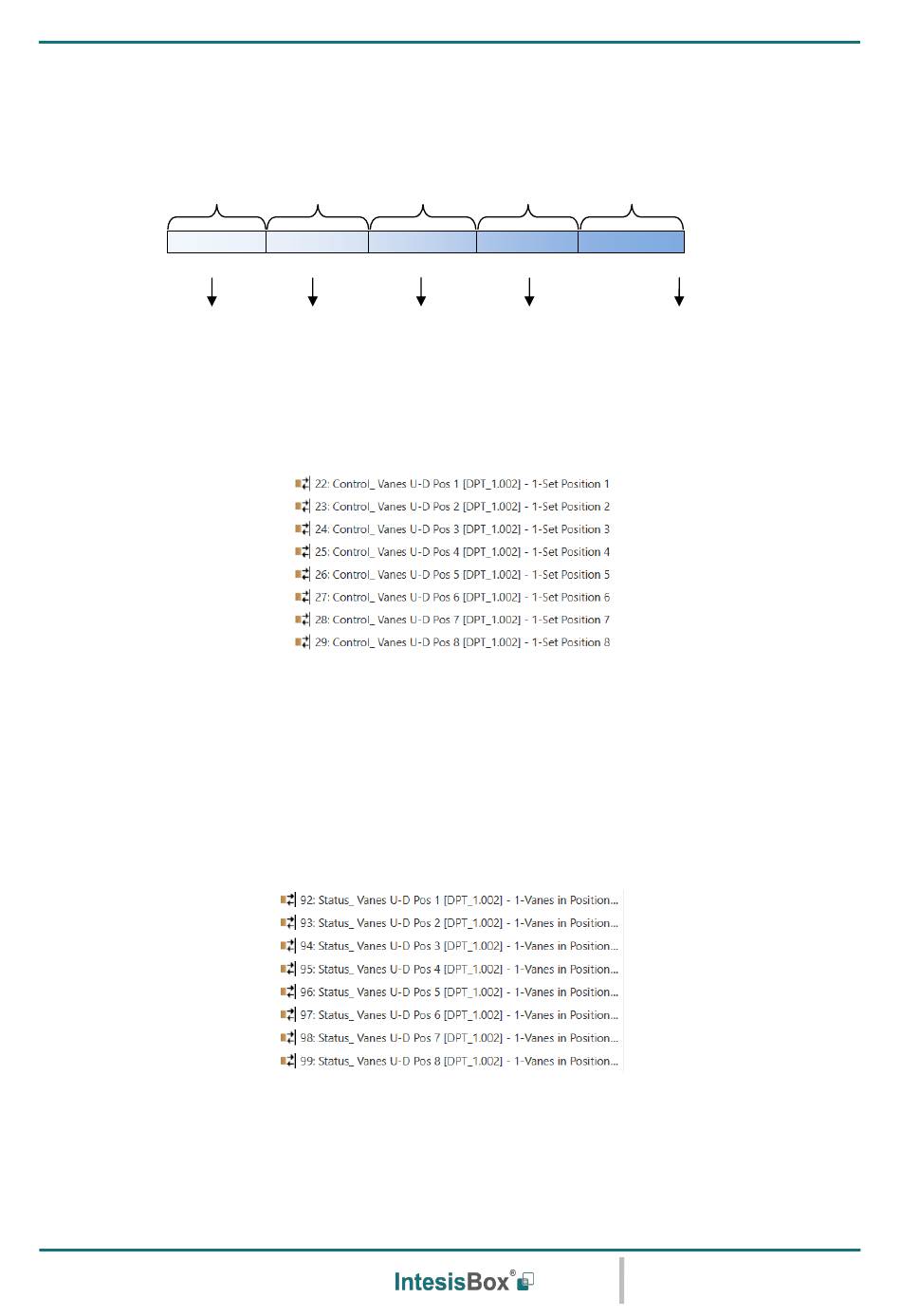

When a value between 90% and 100% is sent to the Control_ object, the fifth vane position will be selected.
The Status_ object will return a 20% for the first vane position, a 40% for the second one, a 60% for the
third one, an 80% for the fourth one and a 100% for the fifth and last one.
Control_
object
Pos. 1
0% 20%
Status_

5.5.2 Enable use of bit-type Vane U-D objects (for Control)

This parameter shows/hides the bit-type Control_ Vane Up-Down objects.
If set to "no" the objects will not be shown.
o
If set to "yes" the Control_ Vane Up-Down objects for each Position (1 to 5) will appear. To activate a Vane
o
Position by using these objects, a "1" value has to be sent.

5.5.3 Enable use of bit-type Vane U-D objects (for Status)

This parameter shows/hides the bit-type Status_ Vane Up-Down objects.
If set to "no" the objects will not be shown.
o
If set to "yes" the Status_ Vane Up-Down objects for each Position (1 to N) will appear. When a Vane
o
Position is enabled, a "1" value is returned through its bit-type object.
