KNX – IR Universal AC
®
IntesisBox

Scene Configuration dialog

All the parameters in this section are related with the Scene properties and communication objects. A scene
contains values of: On/Off, Mode, Fan speed, Vane position and Setpoint Temperature.

5.8.1 Enable use of scenes

This parameter shows/hides the scene configuration parameters and communication objects.
If set to "no" the scene parameters and communication objects will not be shown.
o
If set to "yes" the scene parameters and communication objects will be shown. To execute a scene through
o
the byte-type object, a value from "0" to "4" has to be sent, correponding each one to a different scene (i.e.
"0" = Scene 1;... "4" = Scene 5).

5.8.2 Scenes can be saved from KNX

This parameter shows/hides the Control_ Save/Exec Scene and all the Control_ Save Scene (if enabled)
communication objects.
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox ® is a registered trademark of Intesis Software SLU

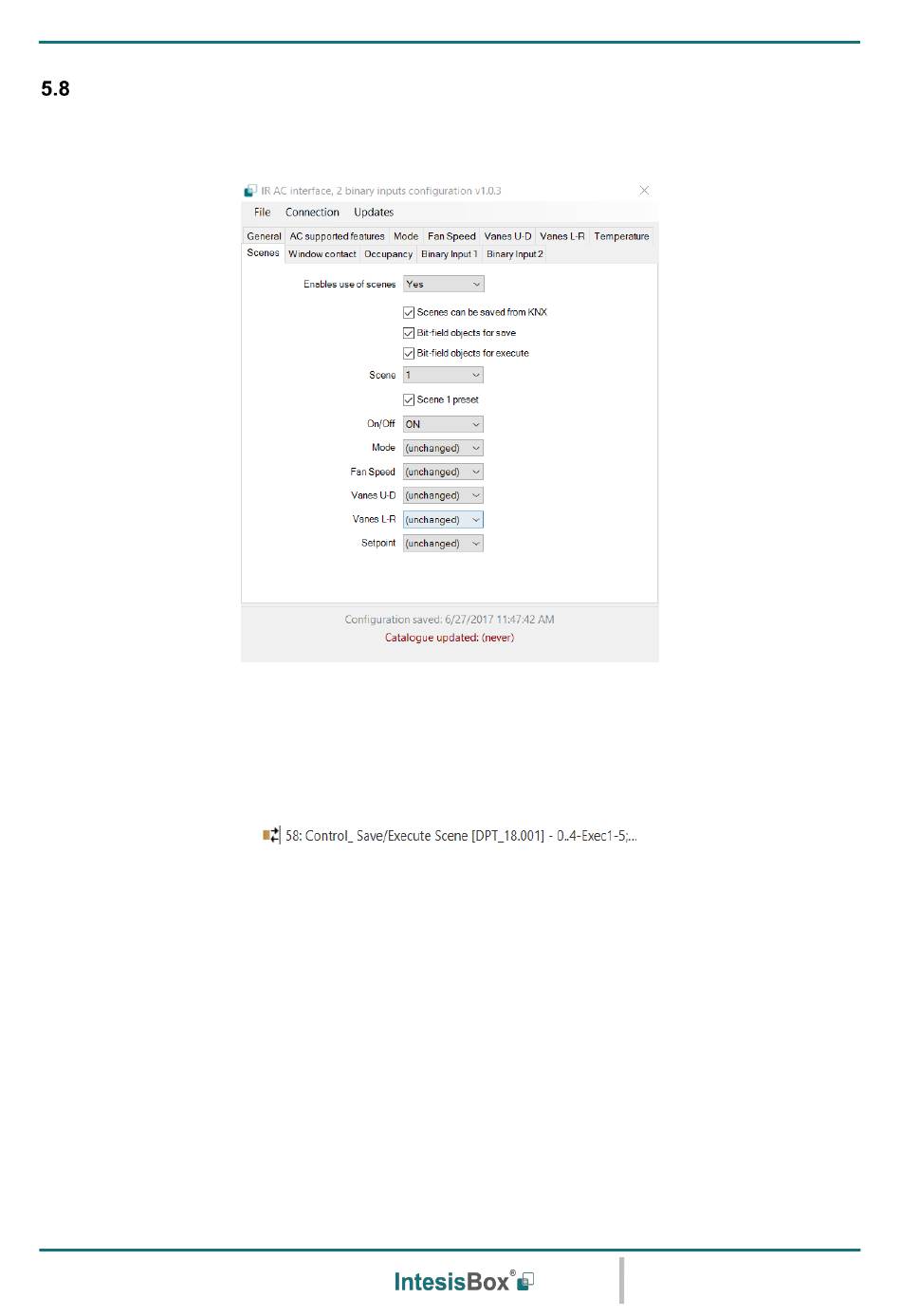

Figure 5.11
Scene configuration settings
