- Page 1 ® IntesisBox M-Bus Meters User Manual r1.0 EN Issue date: 06/2018...
- Page 2 All trademarks and trade names used in this document are acknowledged to be the copyright of their respective holders. email: info@intesisbox.com This information is subject to change without prior notice web: www.intesisbox.com 2/17 IntesisBox is a registered trademark of Intesis Software S.L.U. phone: +34 938047134...
- Page 3 IBKNXMEB0100000, 10 M-Bus devices IBKNXMEB0200000, 20 M-Bus devices IBKNXMEB0600000, 60 M-Bus devices IBKNXMEB1200000, 120 M-Bus devices email: info@intesisbox.com This information is subject to change without prior notice web: www.intesisbox.com 3/17 IntesisBox is a registered trademark of Intesis Software S.L.U. phone: +34 938047134...
-
Page 4: Table Of Contents
Connection to M-Bus ........................10 Connection to the configuration tool ....................10 4 Set-up process and troubleshooting ...................... 11 Pre-requisites ..........................11 IntesisBox MAPS. Configuration & monitoring tool for IntesisBox KNX series ......11 4.2.1 Introduction ..........................11 4.2.2 Connection ..........................11 4.2.3... -
Page 5: Description

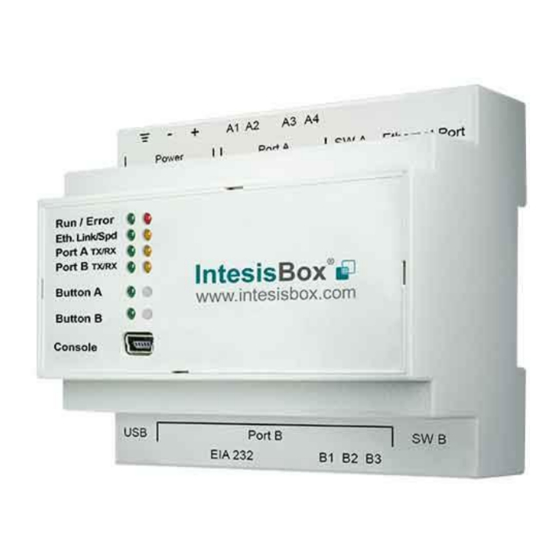

The aim of this integration is to make accessible M-Bus devices signals and resources from a KNX network, as if it was a part of the own KNX system and vice-versa. To do it so, IntesisBox performs as a one more KNX device, sending and receiving telegrams to group addresses in the KNX network. -
Page 6: Functionality
Intesisbox's memory and become updated in the KNX side. When a change in any point configured as write-enabled in IntesisBox is detected (this is written from the KNX side), the corresponding action in the M-Bus device will be performed. These actions can be: force a polling of a specific M-Bus device or force a polling of all M-Bus devices. -
Page 7: Gateway's Capacity
Number of M-Bus signals (readings in the 1500 3000 signals meters) that can be read from IntesisBox. email: info@intesisbox.com This information is subject to change without prior notice web: www.intesisbox.com 7/17 IntesisBox is a registered trademark of Intesis Software S.L.U. phone: +34 938047134... -
Page 8: Knx System
2 KNX System In this section, a common description for all IntesisBox KNX series gateways is given, from the point of view of KNX system which is called from now on internal system. Connection with the MBUS system is also called from now on external system. -
Page 9: Connections
Connect a USB storage device (not a HDD) if required. Check the user manual for more information. Ensure proper space for all connectors when mounted (see section 6). email: info@intesisbox.com This information is subject to change without prior notice web: www.intesisbox.com 9/17 IntesisBox is a registered trademark of Intesis Software S.L.U. phone: +34 938047134... -
Page 10: Powering The Device
Remember that the IntesisBox provides 36VDC M-Bus voltage to the bus, acting as a M-Bus level converter as well. In case there is no response from the M-Bus device(s) to the frames sent by IntesisBox, check that they are operative and reachable from the network connection used by IntesisBox. -
Page 11: Set-Up Process And Troubleshooting
4 Set-up process and troubleshooting Pre-requisites It is necessary to have a KNX network operative and well connected to the corresponding KNX port of IntesisBox and a M-BUS device (or network of M-BUS devices) connected at its corresponding port as well. -
Page 12: Configuration Tab
All available objects, KNX objects, its corresponding M-Bus register and other main parmaters are listed in the signals tab. More information on each parameter and how to configure it can be found in the IntesisBox MAPS user manual. Figure 4.3 IntesisBox MAPS Signals tab email: info@intesisbox.com... -
Page 13: Sending The Configuration To Intesisbox
1.- Save the project (Menu option Project->Save) on your hard disk (more information in IntesisBox MAPS User Manual). 2.- Go to tab ‘Receive / Send’ of MAPS, and in Send section, press Send button. IntesisBox will reboot automatically once the new configuration is loaded. - Page 14 More information about the Diagnostic section can be found in the Configuraion Tool manual. email: info@intesisbox.com This information is subject to change without prior notice web: www.intesisbox.com 14/17 IntesisBox is a registered trademark of Intesis Software S.L.U. phone: +34 938047134...
-
Page 15: Set-Up Procedure
1. Install IntesisBox MAPS on your laptop, use the setup program supplied for this and follow the instructions given by the Installation wizard. 2. Install IntesisBox in the desired installation site. Installation can be on DIN rail or on a stable not vibrating surface (DIN rail mounted inside a metallic industrial cabinet connected to ground is recommended). -
Page 16: Electrical & Mechanical Features
1 x DIP-Switch for PORT B configuration: Switch B 100 mm Reserved for future use (SWB) email: info@intesisbox.com This information is subject to change without prior notice web: www.intesisbox.com 16/17 IntesisBox is a registered trademark of Intesis Software S.L.U. phone: +34 938047134... -
Page 17: Dimensions
Recommended available space for its installation into a cabinet (wall or DIN rail mounting), with space enough for external connections 100 mm (h) 130 mm (d) 100 mm (w) email: info@intesisbox.com This information is subject to change without prior notice web: www.intesisbox.com 17/17 IntesisBox is a registered trademark of Intesis Software S.L.U. phone: +34 938047134...
