4 Configuration and setup

This is a fully compatible KNX device which must be configured and setup using standard KNX tool ETS.

Before starting with the configuration, please make sure that the binary inputs (if used) and the USB cable are

properly connected to the interface. Make sure as well, that the interface is connected to the KNX bus to allow

the proper download of the KNX programming.

In order to proceed with the configuration and set up, it is recommended to follow instructions next:

1. Download and install the latest version of the ETS data base (section 5).

2. Open the product's plugin and make sure that the catalog is in its last available version (section 5).

3. Select your AC brand and model (section 5.1).

4. Download the infrared configuration to the IntesisBox pushing on the "Download IR parameters".

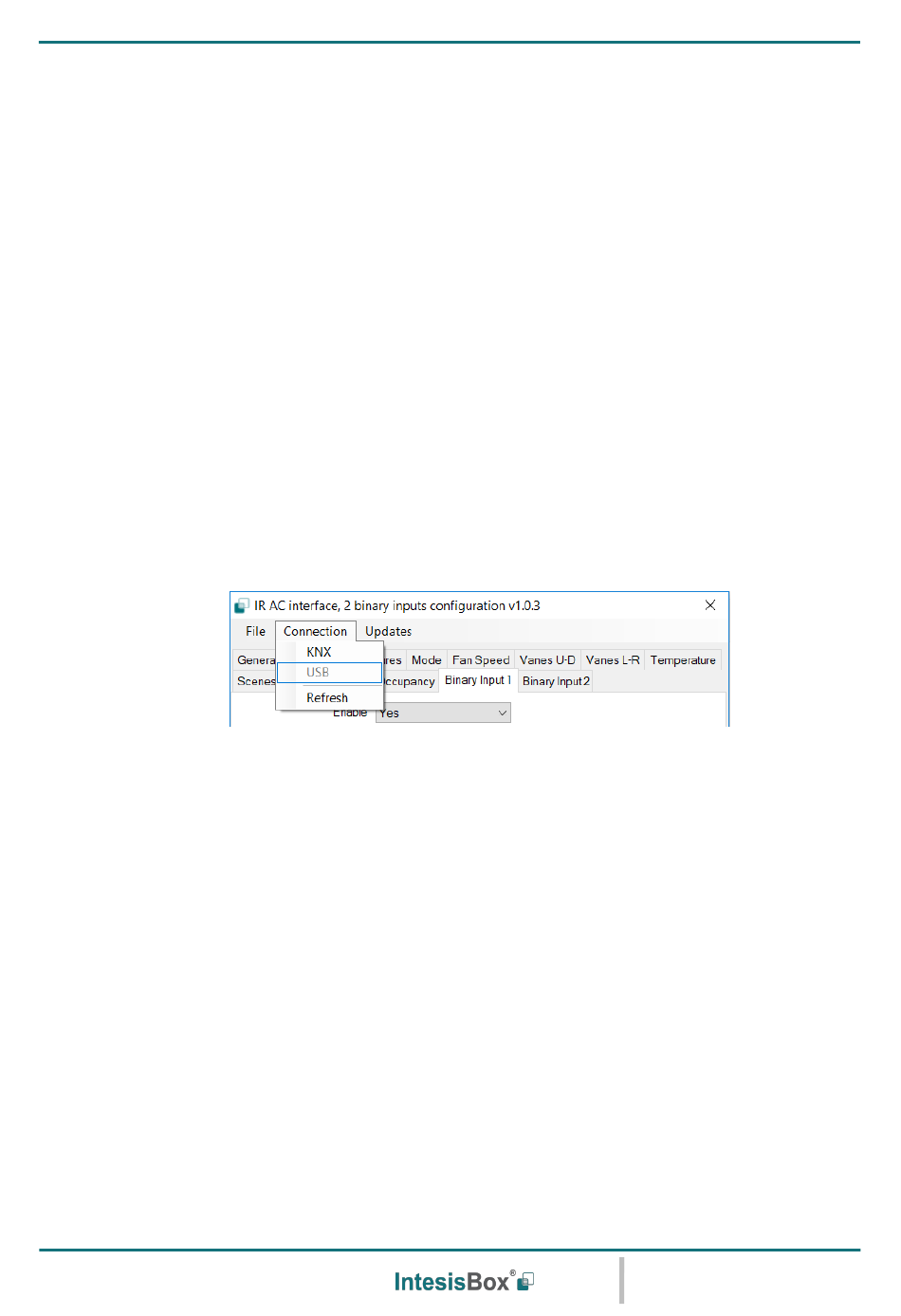

NOTE: Check the current connection to the IntesisBox. Notice that in order to send the Infrared

configuration, you can use the standard KNX connection (the same used to program the device) or a

USB connection.

USB connection is faster than KNX connection. Notice that this is only available for the infrared

configuration settings.

5. Proceed with the rest of AC unit settings and other parameters.

6. Proceed with the KNX programming.

7. Download the programming to the interface as any other KNX device.
