2 Quick setup

1. Check the interface location that best fits the installation (section 3.1)

2. Connect the interface to the KNX bus.

3. Download the ETS database for this product, import it and add it to the current ETS project.

4. Access the parameter section of the IntesisBox device. Notice that parameters for this interface are

configured through a specific plugin (section 5).

5. Select the communication objects to be used and other parameters. This step can be omitted if working

with the default objects and parameters.

6. Save the configuration file and download the application program.

7. Close the plugin and apply changes when asked.

8. Link the group address from the communication object of the KNX device with the communication object

inside the IntesisBox interface.

9. Download the ETS parameters as with any other standard KNX device.

This information is subject to change without notice

IntesisBox

is a registered trademark of Intesis Software SLU

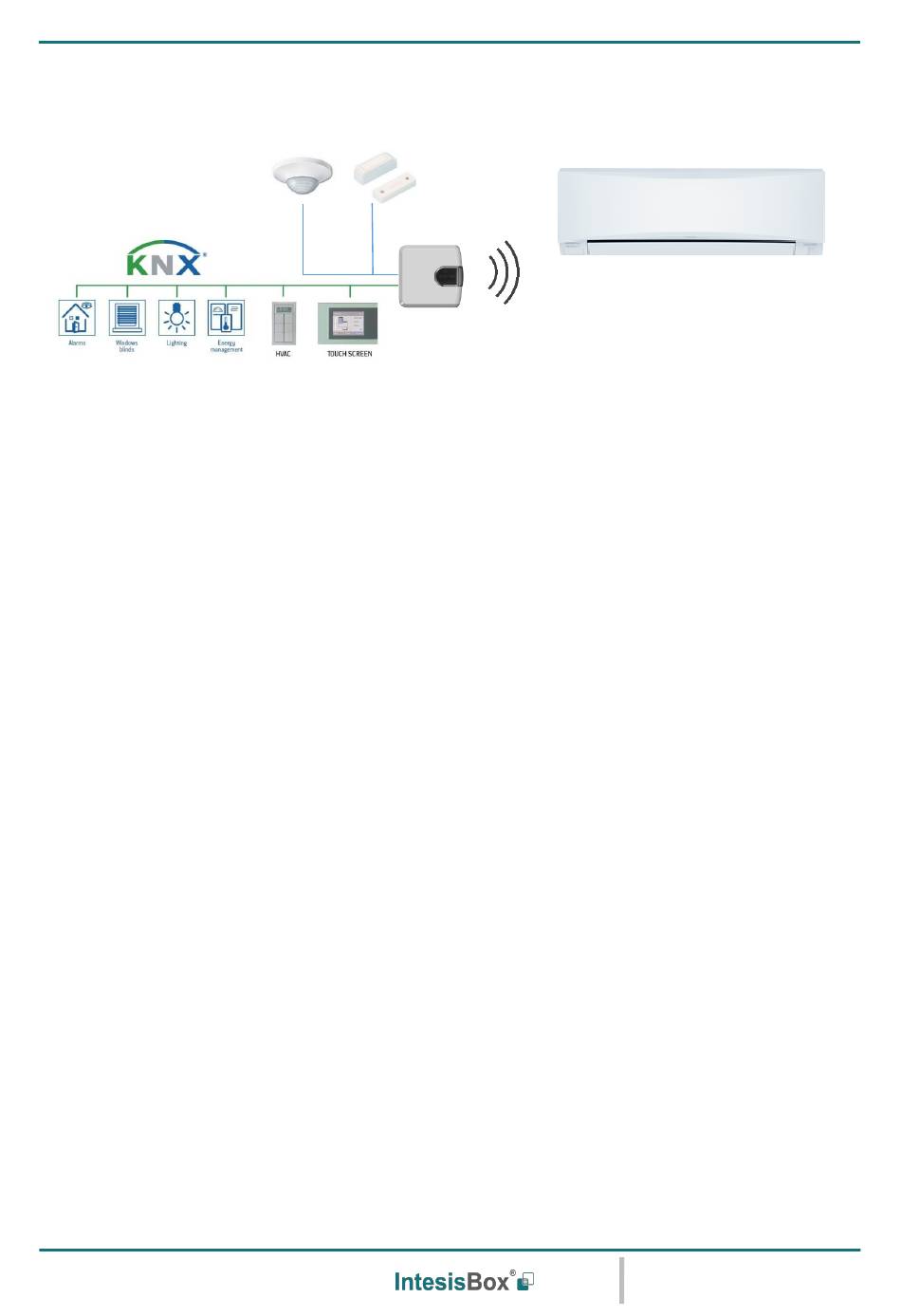

Figure 2.1 IS-IR-KNX-1i integration example
