Case B: Installed in front of the AC unit. In that case, the signal will travel from the IntesisBox device directly to
the AC unit.
Case C: Installed below the AC unit. In that case, the signal will travel from the IntesisBox device to the AC unit
tacking advantage of the rebounds on the wall in front of it or other furniture present in the room.
Case D: If you want to place the device on your desktop or any other horizontal surface, please consider the
sketch below. In this case, the signal will travel directly from the IntesisBox device to the AC unit.
In order not to produce marks or scratches on the surface and also to improve the device stability, you can use
the rubber dumpers included in the package. Please, check
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox ® is a registered trademark of Intesis Software SLU

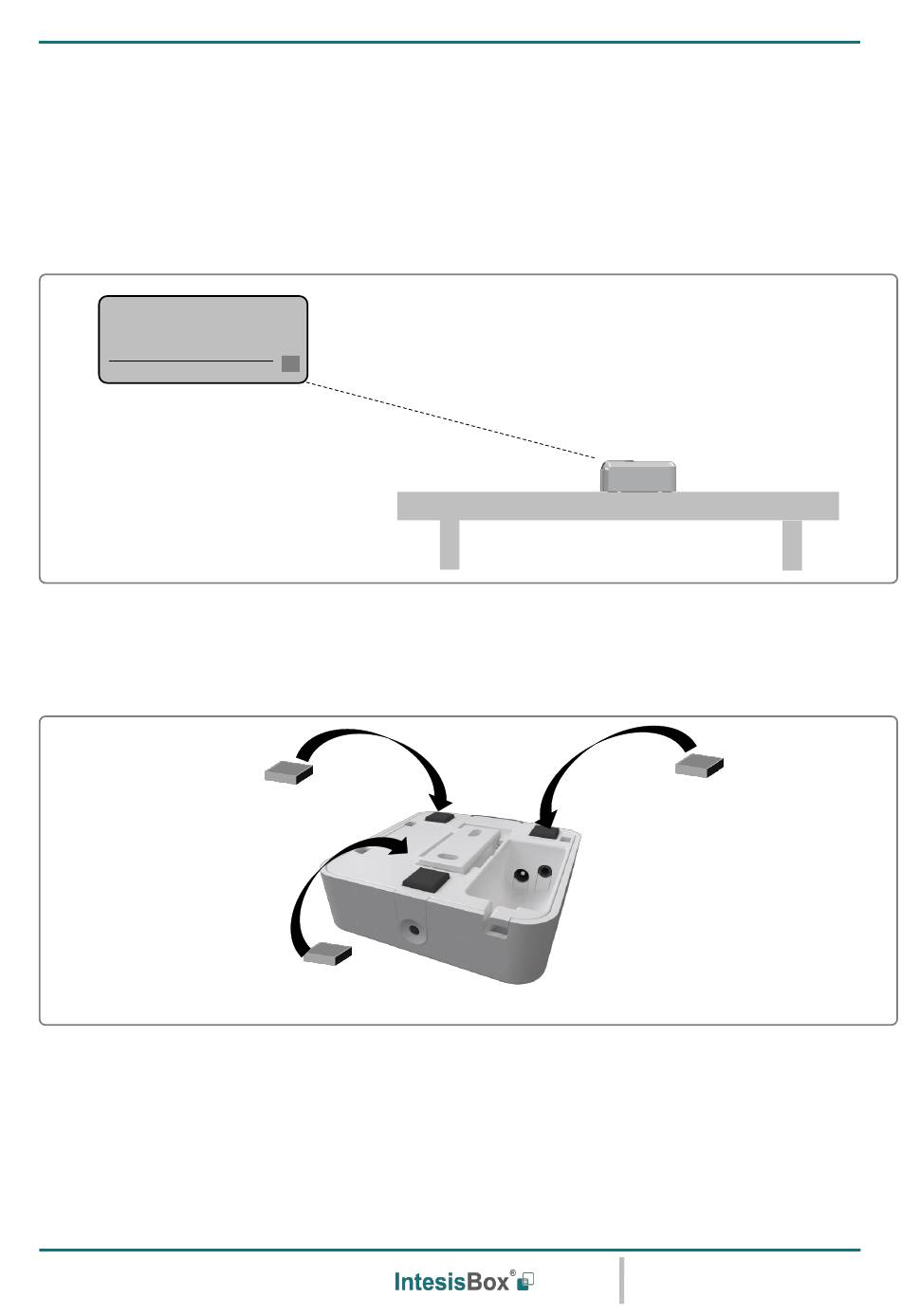

Figure 3.3 Desktop mounted position
