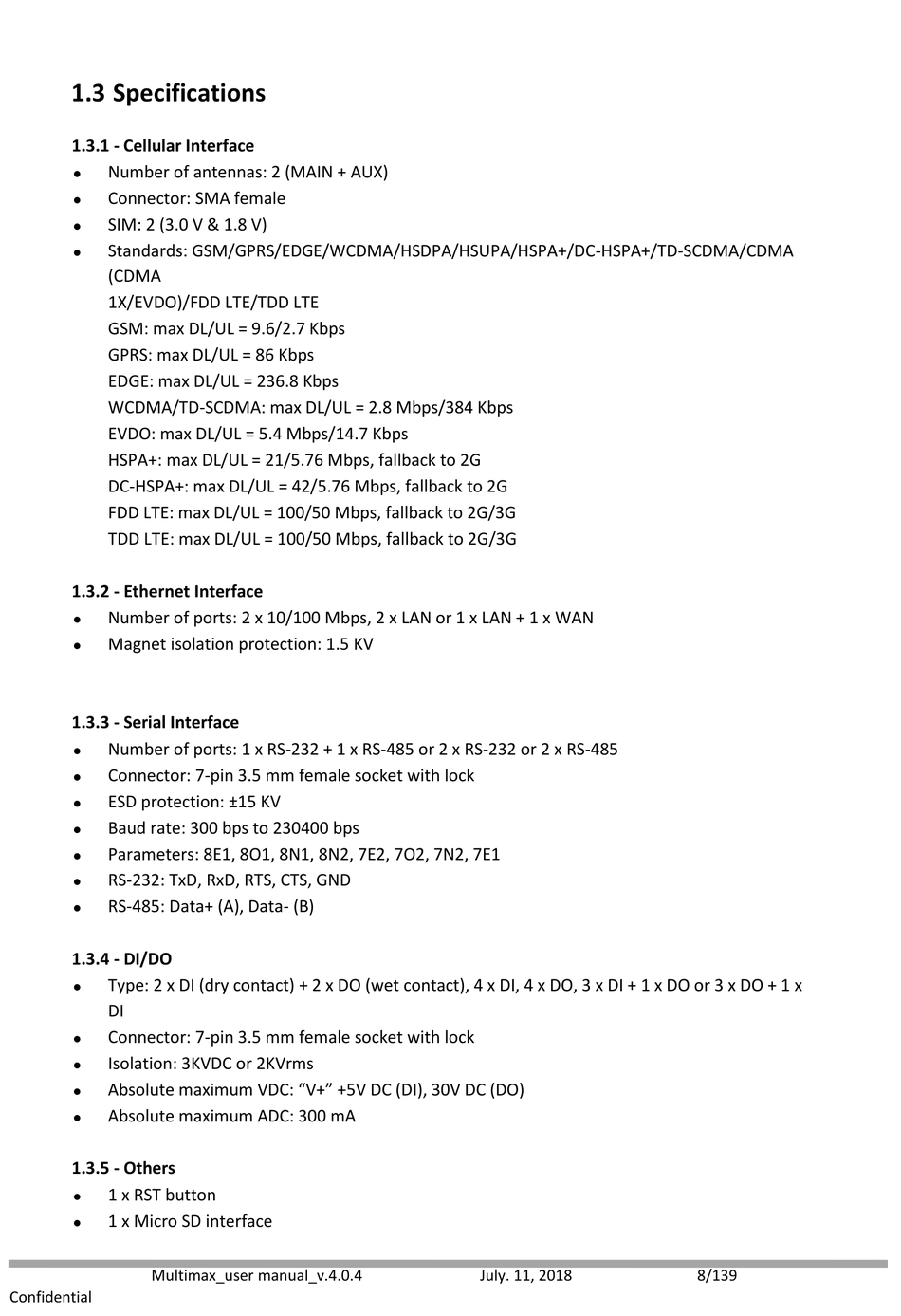

1.3 Specifications

1.3.1 - Cellular Interface
Number of antennas: 2 (MAIN + AUX)

Connector: SMA female

SIM: 2 (3.0 V & 1.8 V)

Standards: GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA

(CDMA
1X/EVDO)/FDD LTE/TDD LTE
GSM: max DL/UL = 9.6/2.7 Kbps
GPRS: max DL/UL = 86 Kbps
EDGE: max DL/UL = 236.8 Kbps
WCDMA/TD-SCDMA: max DL/UL = 2.8 Mbps/384 Kbps
EVDO: max DL/UL = 5.4 Mbps/14.7 Kbps
HSPA+: max DL/UL = 21/5.76 Mbps, fallback to 2G
DC-HSPA+: max DL/UL = 42/5.76 Mbps, fallback to 2G
FDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G
TDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G
1.3.2 - Ethernet Interface
Number of ports: 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN

Magnet isolation protection: 1.5 KV

1.3.3 - Serial Interface
Number of ports: 1 x RS-232 + 1 x RS-485 or 2 x RS-232 or 2 x RS-485

Connector: 7-pin 3.5 mm female socket with lock

ESD protection: ±15 KV

Baud rate: 300 bps to 230400 bps

Parameters: 8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1

RS-232: TxD, RxD, RTS, CTS, GND

RS-485: Data+ (A), Data- (B)

1.3.4 - DI/DO
Type: 2 x DI (dry contact) + 2 x DO (wet contact), 4 x DI, 4 x DO, 3 x DI + 1 x DO or 3 x DO + 1 x

DI
Connector: 7-pin 3.5 mm female socket with lock

Isolation: 3KVDC or 2KVrms

Absolute maximum VDC: "V+" +5V DC (DI), 30V DC (DO)

Absolute maximum ADC: 300 mA

1.3.5 - Others
1 x RST button

1 x Micro SD interface

