Maxon multimax+ User Manual page 59

Item
Application Mode
Protocol
Item
Server Address
Server Port
Local IP @ Transparent
Local Port @ Transparent
Local IP @ Modbus
Multimax_user manual_v.4.0.4
Confidential

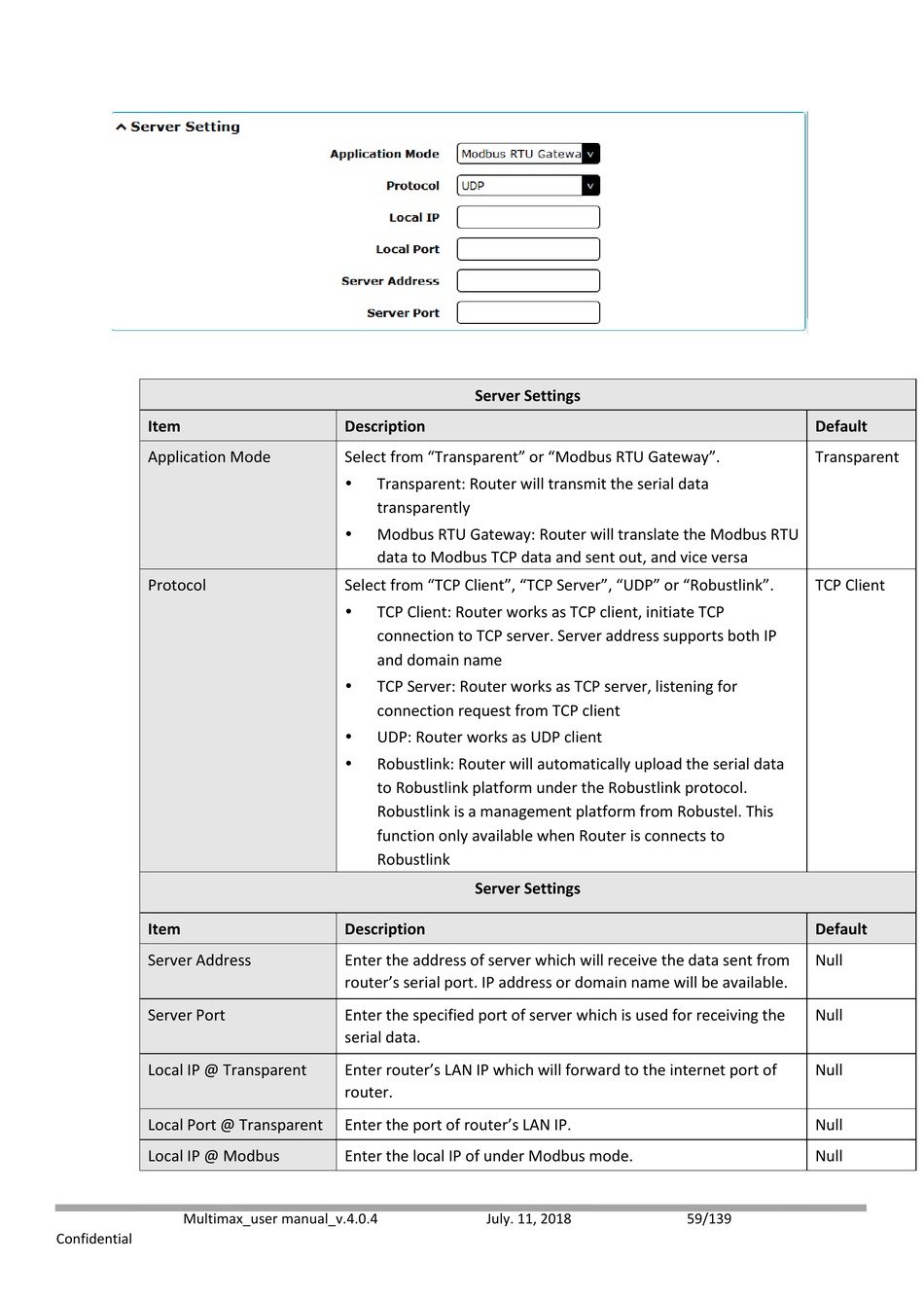

Server Settings
Description
Select from "Transparent" or "Modbus RTU Gateway".

Transparent: Router will transmit the serial data
transparently

Modbus RTU Gateway: Router will translate the Modbus RTU
data to Modbus TCP data and sent out, and vice versa
Select from "TCP Client", "TCP Server", "UDP" or "Robustlink".

TCP Client: Router works as TCP client, initiate TCP
connection to TCP server. Server address supports both IP
and domain name

TCP Server: Router works as TCP server, listening for
connection request from TCP client

UDP: Router works as UDP client

Robustlink: Router will automatically upload the serial data
to Robustlink platform under the Robustlink protocol.
Robustlink is a management platform from Robustel. This
function only available when Router is connects to
Robustlink
Server Settings
Description
Enter the address of server which will receive the data sent from
router's serial port. IP address or domain name will be available.
Enter the specified port of server which is used for receiving the
serial data.
Enter router's LAN IP which will forward to the internet port of
router.
Enter the port of router's LAN IP.
Enter the local IP of under Modbus mode.
July. 11, 2018
Default
Transparent
TCP Client
Default
Null
Null
Null
Null
Null
59/139
