2.7 Attach External Antenna (SMA Type)

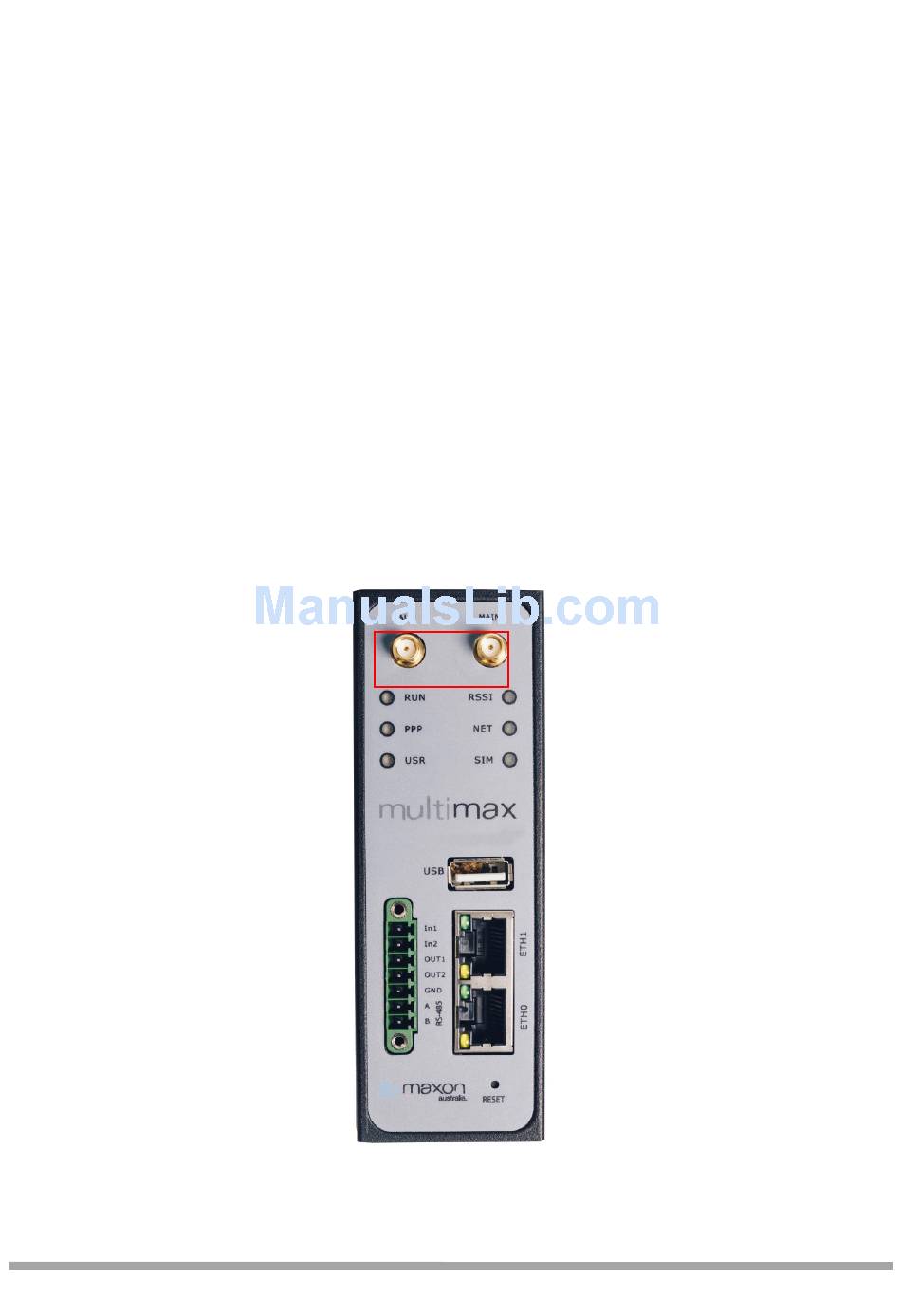

Attach an external SMA antenna to the router's antenna connector and tighten. Make sure the
antenna is within the correct frequency range provided by the ISP and with 50 Ohm impedance.
Note: Recommended torque for tightening is 0.35 N.m.
The "MAIN" connection is REQUIRED, while the "AUX" is optional – modem behaviour may be more
stable in margin areas and in mobile applications when using the AUX connector.
