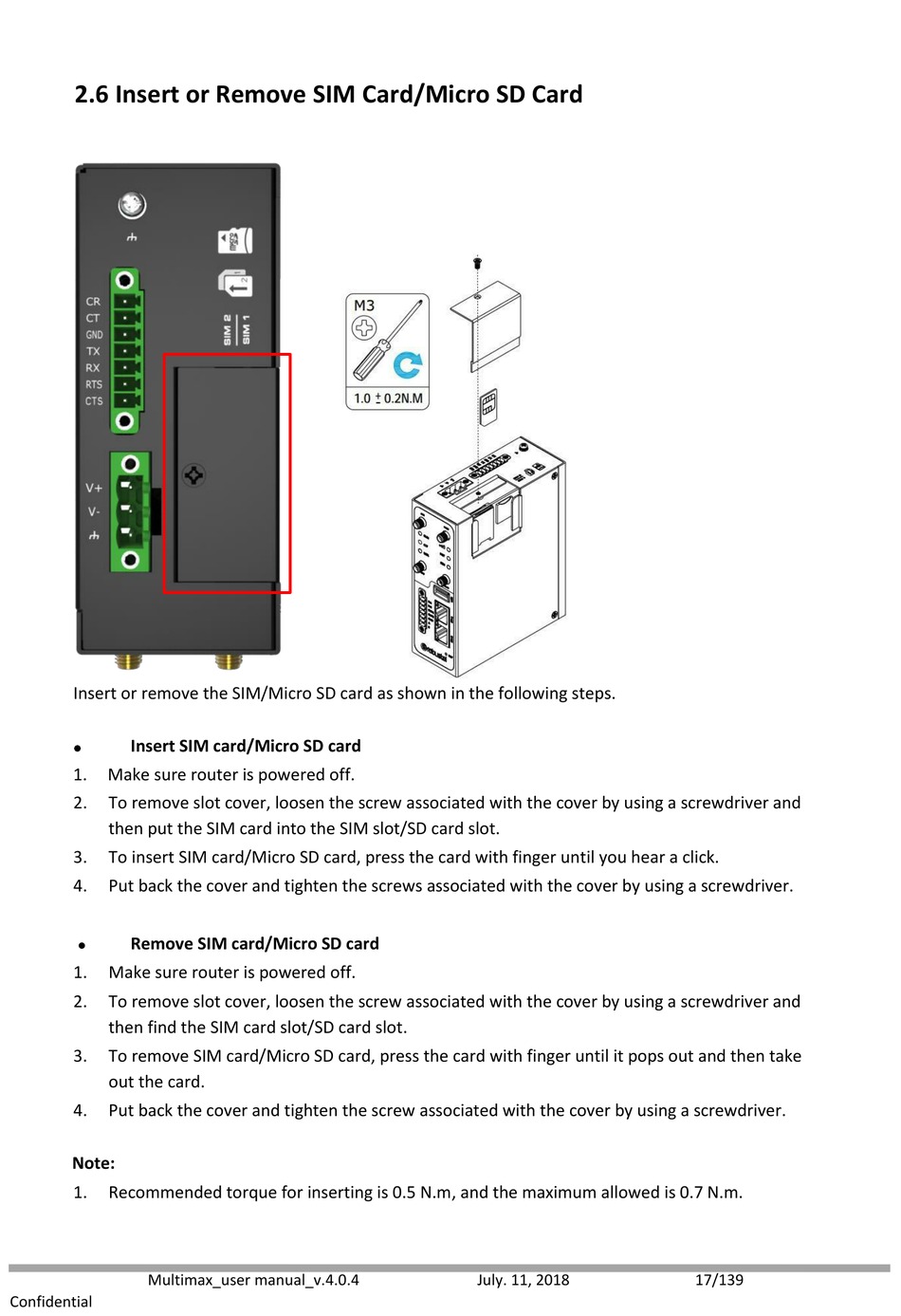

2.6 Insert or Remove SIM Card/Micro SD Card

Insert or remove the SIM/Micro SD card as shown in the following steps.
Insert SIM card/Micro SD card

1. Make sure router is powered off.
2. To remove slot cover, loosen the screw associated with the cover by using a screwdriver and
then put the SIM card into the SIM slot/SD card slot.
3. To insert SIM card/Micro SD card, press the card with finger until you hear a click.
4. Put back the cover and tighten the screws associated with the cover by using a screwdriver.
Remove SIM card/Micro SD card

1. Make sure router is powered off.
2. To remove slot cover, loosen the screw associated with the cover by using a screwdriver and
then find the SIM card slot/SD card slot.
3. To remove SIM card/Micro SD card, press the card with finger until it pops out and then take
out the card.
4. Put back the cover and tighten the screw associated with the cover by using a screwdriver.
Note:
1. Recommended torque for inserting is 0.5 N.m, and the maximum allowed is 0.7 N.m.
