Item
Negotiation Mode
Authentication
Algorithm
Encrypt Algorithm
IKE DH Group
Authentication Type
PSK Secret
Multimax_user manual_v.4.0.4
Confidential
Description
Select from "Main" and "Aggressive" for the IKE negotiation mode in phase 1.
If the IP address of one end of an IPsec tunnel is obtained dynamically, the IKE
negotiation mode must be aggressive. In this case, SAs can be established as
long as the username and password are correct.
Select from "MD5", "SHA1", "SHA2 256" or "SHA2 512" to be used in IKE
negotiation.
Select from "3DES", "AES128" and "AES256"to be used in IKE negotiation.

3DES: Use 168-bit 3DES encryption algorithm in CBC mode

AES128: Use 128-bit AES encryption algorithm in CBC mode

AES256: Use 256-bit AES encryption algorithm in CBC mode
Select from "DHgroup2", "DHgroup5", "DHgroup14", "DHgroup15",
"DHgroup16", "DHgroup17" or "DHgroup18" to be used in key negotiation
phase 1.
Select from "PSK", "CA", "xAuth PSK" and "xAuth CA" to be used in IKE
negotiation.

PSK: Pre-shared Key

CA: Certification Authority

xAuth: Extended Authentication to AAA server
Enter the pre-shared key.

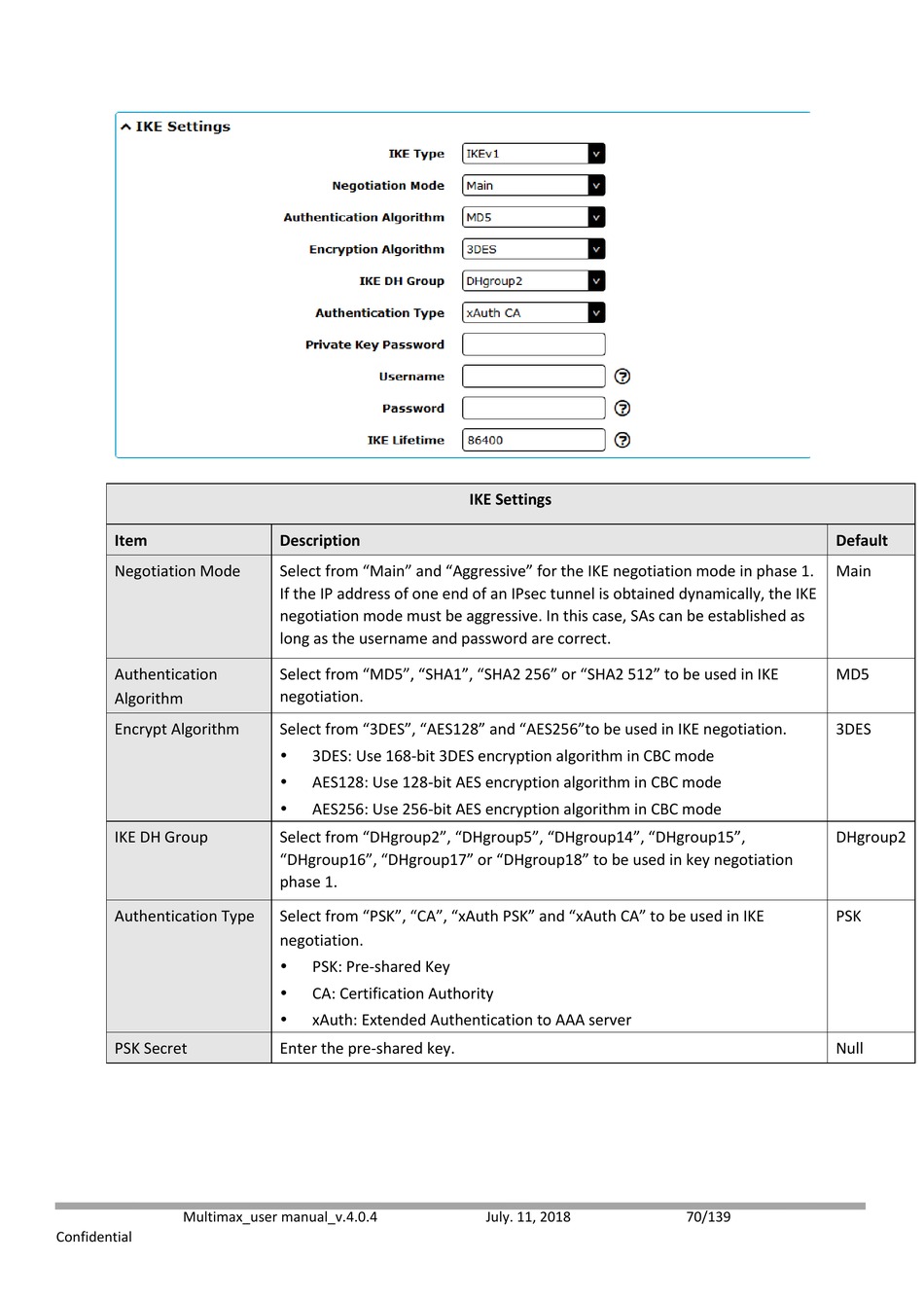

IKE Settings
July. 11, 2018
Default
Main
MD5
3DES
DHgroup2
PSK
Null
