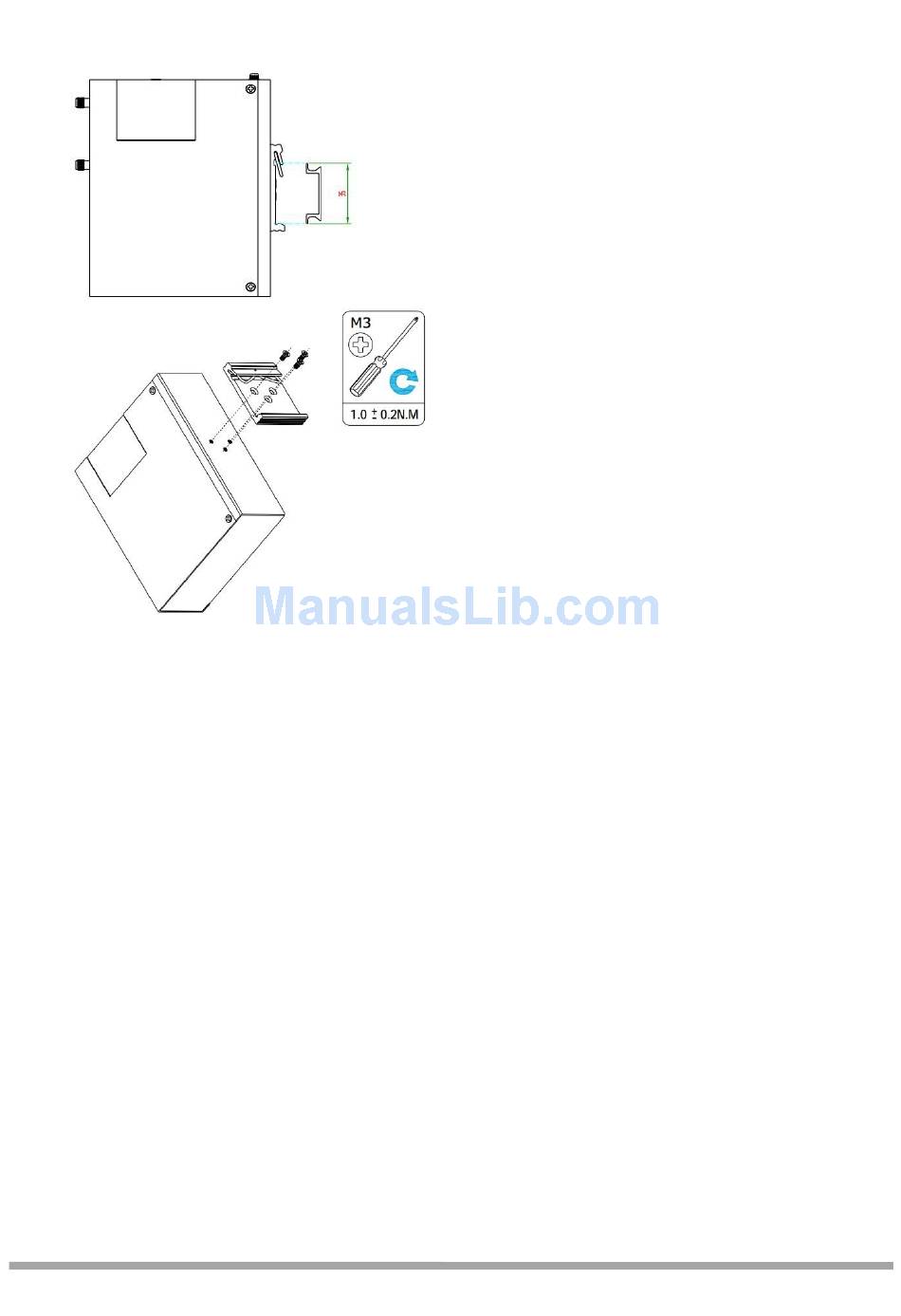

Use 3 pcs of M3*6 flat head Phillips screws to fix the DIN rail to the router, and then hang the
DIN rail on the mounting bracket. It is necessary to choose a standard bracket.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
Multimax_user manual_v.4.0.4
July. 11, 2018
21/139
Confidential
