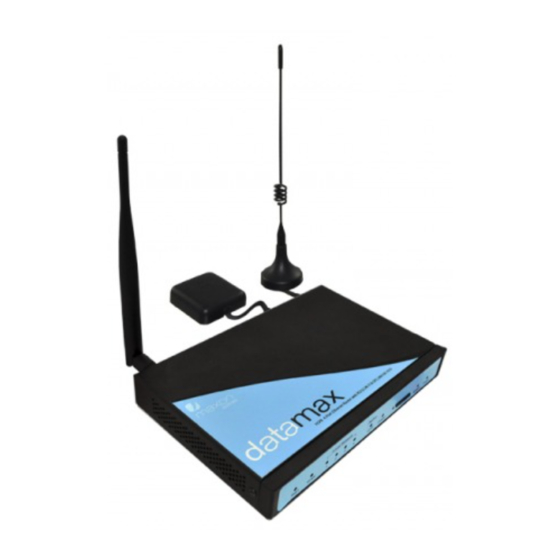

Summary of Contents for Maxon DataMax MA100-1010

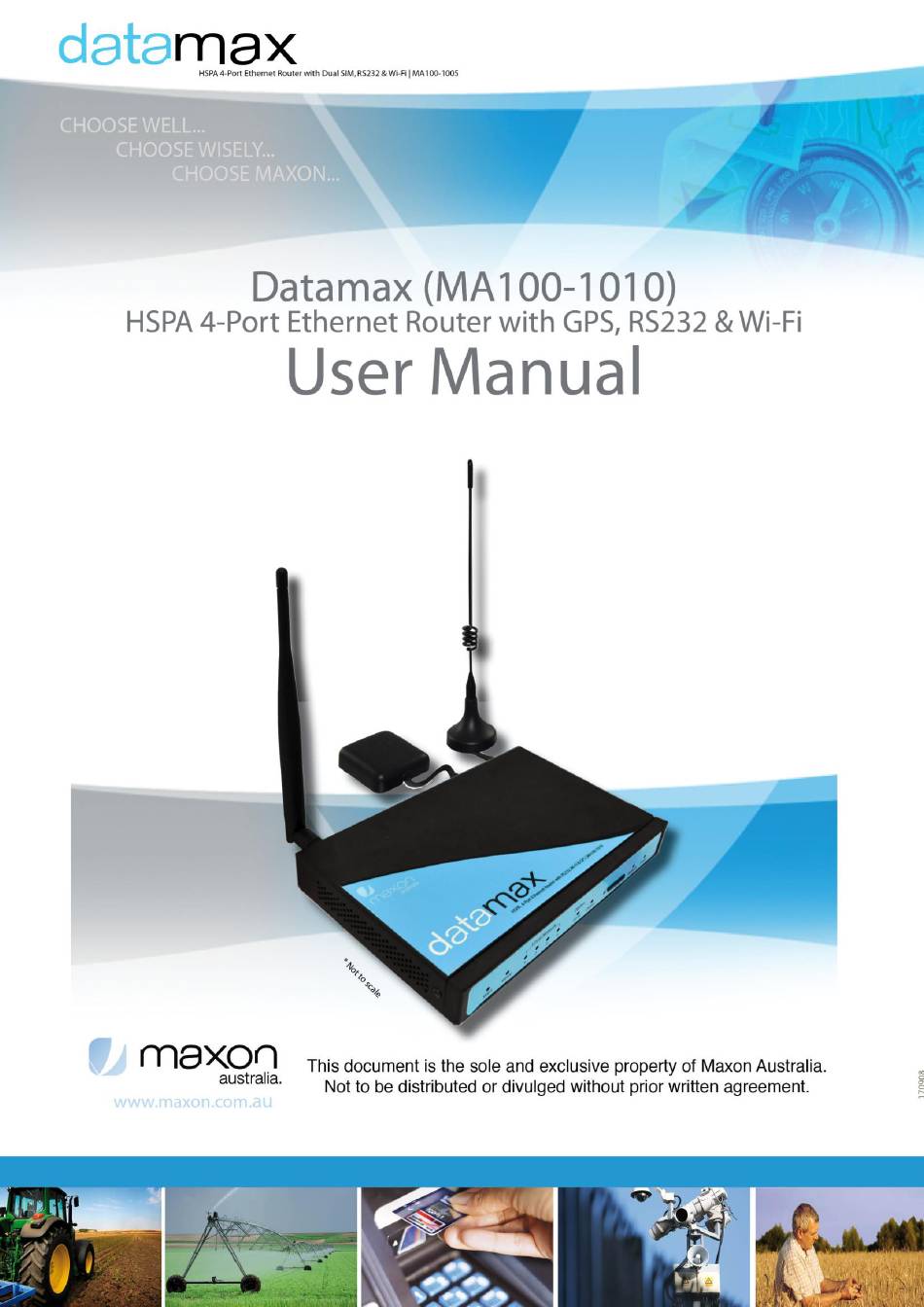

- Page 1 Page - 1 -...
-
Page 2: Table Of Contents
Page - 2 - TABLE OF CONTENTS CONTACT INFORMATION ............ - 4 - RF EXPOSURE COMPLIANCE ..........- 5 - Caution ................. - 5 - REVISION HISTORY ............- 7 - Introduction ............... - 8 - Specifications ..............- 11 - Cellular Specification .......... - Page 3 Page - 3 - Load Default ............... - 31 - Router Upgrade ............- 31 - Set Password .............. - 32 - Logs ................- 32 - Misc ................- 35 - VPN Setup ..............- 35 - PPTP Client ..............- 35 - L2TP Client ..............
-
Page 4: Contact Information
* Public holidays excluded www.maxon.com.au WEBSITE: Maxon has also added for the benefit of developers and integrators, a forum on our website that can be accessed to discuss this product and/or technical matters in relation to your applications. All questions raised within this portal will be answered. -
Page 5: Rf Exposure Compliance
(excluding hands, wrists, feet, and ankles) to ensure RF exposure compliance. Caution Change or modification without the express consent of Maxon Electronics Australia Pty. Ltd. voids the user’s authority to use the equipment. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. - Page 6 Page - 6 - Potentially Unsafe Areas Posted Facilities: Turn off this device in any facility or area when posted notices require you to do so. Blasting Areas: Turn off your device where blasting is in progress. Observe restrictions and follow any regulations or rules. Potentially Explosive Atmospheres: Turn off your device when you are in any area with a potentially explosive atmosphere.
-
Page 7: Revision History
Page - 7 - R E V I S I O N H I S T O R Y Product Datamax HSPA Ethernet Router with RS232 & wifi. Model MA100-1010 Document Type Current Version Number Status of the Document Public Release Revision Date July 2013 Total Number of Pages... -
Page 8: Introduction
Page - 8 - I n t r o d u c t i o n MA100-1010 is a HSUPA Ethernet router providing data communications via the public cellular network. The MA100-1010 utilises an industrial 32-bit CPU embedded with a real time operating system. - Page 9 Page - 9 - Power port 2.5mm Barrel connector: reverse-voltage and overvoltage protection Antenna port SMA Female Supports IP Stack Auto mode IP / web based user interface for remote management, maintenance and configuration. Standard and Convenience ...
- Page 10 Page - 10 - Embedded processing Cellular DATA Interface `system Module User interface RS232 10/100M 4 ports Power WIFI Indicator switch lights...
-
Page 11: Specifications
Page - 11 - S p e c i f i c a t i o n s Cellular Specification Standard and Band Bandwidth power sensitivity MA100-1010 GPS+WCDMA ROUTER UMTS/WCDMA/HSDPA/ HSUPA: 5.76Mbps <24dBm <-109dBm HSUPA (Upload speed) 850/1900/2100MHz, HSDPA: 7.2Mbps 850/900/1900/2100MHz (Download speed) GSM850/900/1800/1900... -
Page 12: Power Input
Page - 12 - Antenna Cellular: 2 x Standard SMA female interface, 50 ohm, WIFI: Standard SMA female interface, 50 ohm, 2 x Standard 3V/1.8V user card interface with 15KV ESD protection Power Standard 3-PIN power jack, reverse-voltage and overvoltage protection, 2.5mm barrel connector Reset Restores the router to its original factory default settings... -
Page 13: Dimension: (Unit: Mm)
Page - 13 - Dimension: (unit: mm) -
Page 14: Installation Introduction
Page - 14 - I n s t a l l a t i o n I n t r o d u c t i o n Accessories List Name Quantity Router Cellular Antenna GPS Antenna WIFI Antenna Network cable Serial cable Power Lead Stator... -
Page 15: Power
Power The input supply voltage range is 5~35VDC. We recommend using the standard DC 12VDC/1.5A power adaptor available from Maxon. Indicator Lights The router has five indicator lights and operates as follows: Indicator State Status Description... -
Page 16: Reset Button
Page - 16 - Online-1 The main link has logged onto the network The main link hasn’t logged onto the network GPS is active GPS is not active Local The corresponding interface is not Network connected ON / The corresponding interface is BLINK connected /Communicating The WAN interface is not connected... -
Page 17: Configuration And Management
Page - 17 - C o n f i g u r a t i o n a n d M a n a g e m e n t Datamax is configured via a web interface. In order to access the Datamax web interface you will need a computer with a spare Ethernet LAN port. -
Page 18: Wan Settings
Page - 18 - 3. In your web browser type 192.168.1.1 in the Address (URL) field (The Default IP Address of the Ethernet port is 192.168.1.1). The router will prompt you for login credentials the default username and password are both “admin”. WAN Settings This page is used to configure the Internet access parameters User Name... -
Page 19: Internet Ip Address
Page - 19 - Internet IP Address By default, the Internet IP Address of the router is allocated by the ISP automatically. Should your connection require a static IP address you can set the address if the ISP supports this feature. Domain Name Server (DNS) Address Normally, the Domain Name Server (DNS) Address of the router is allocated by the ISP automatically. - Page 20 Page - 20 - server, if it fails it will try the secondary detection server, if the router does not receive ICMP response it will try to reconnect to the network. Route Using the route method, the router will use a trace route method for detecting the connection status by trying to reach the primary and secondary detection servers.
-
Page 21: Wifi Settings
Page - 21 - WIFI Settings WIFI Enable Enables or disables the WIFI Service Set Identifier which is also known as the Name (SSID) wireless network name, A value of up to 32 alphanumeric characters. Hide SSID SSID undetectable if enabled This item determines where the router is used, Region please choose the correct region... - Page 22 Page - 22 - Configure WEP Wireless Security The WEP configure page is as follows: Authentication Type: Open System, Shared Key or Automatic Security Encryption (WEP) Key: WEP encryption key, It should be 5 or 13 characters. Configure WPA-PSK Wireless Security The WPA-PSK configure page is as follows:...
-
Page 23: Lan Settings
Page - 23 - Encryption Method: TKIP, AES or AUTO. Passphrase: A word or group of 8-63 printable characters WPA2-PSK, WPA/WPA2-PSK configurations are the same as WPA-PSK. LAN Settings Under LAN settings, you can configure the router IP settings, enable or disable DHCP services on the router. -
Page 24: Firewall
Page - 24 - Firewall NAT (Network Address Translation or Network Address Translator) is the translation of an Internet Protocol address (IP address) used within one network to a different IP address known within another network. One network is designated as the inside network and the other, as the outside network. -
Page 25: Dmz
Page - 25 - Configure an item as follows Once you click Add Item, the NAT rule will appear in the Custom NAT items table. Based upon the above rule the router will process packets coming on port 5001 to port 5003 directing the packets to 192.168.1.249 Deleting a NAT item To delete a NAT item, you should select the item and press the “Delete Item”... - Page 26 Page - 26 - Packet Filter This feature allows restricting/allowing packets from going in or out of your LAN interface, this can be filtered at the IP or port level. Enable Packet Enable or disable “packet filter” function Filter Policy You can select between Deny or Allow Direction Input: packet from WAN to LAN...
-
Page 27: Mac Filtering
Page - 27 - Change image and interface on the router The entry below is the configured firewall/filter representing the above configuration MAC Filtering With Mac filtering you can allow or deny router and internet access based on their MAC address, MAC address (A Media Access Control address) is a unique identifier assigned to the network interfaces for communications on the physical network segment. -
Page 28: Static Routes
Page - 28 - Static Routes Static routes allows you to add an entry to the router routing table. This can be used if you would like to configure a VPN tunnel or forward packets to a particulate IP address on your LAN. Press “Add”... -
Page 29: Router Status
Page - 29 - Router Status This page displays the router’s status information. As per the below image... -
Page 30: Backup Settings
Page - 30 - System Firmware Version Software version information Module The Wireless module used to connect to the internet Signal Packet protocol type TCP, UDP or TCP/UDP Network Packet’s source port Internet Port Status WAN connection Online/ Offline IP Address WAN IP Address Gateway WAN Gateway Address... -
Page 31: Load Default
Page - 31 - To restore the router configuration from a file, click the “Browse” button and select the configuration file you would like to restore. Click the “Restore” button to initiate the restore process. Load Default Load defaults will reset the modem settings to the default factory settings. -
Page 32: Set Password
Page - 32 - Note: When uploading software to the Router, it is important not to interrupt the Web browser by closing the window, clicking a link, or loading a new page. If the browser is interrupted, it may corrupt the Router. It should not shutdown the power supply when uploading. - Page 33 Page - 33 - Web Option The log message is displayed on this web page. With the Web option, you can save the output to a local file by clicking the “Save log” button. Console: The log message is sent to the console port. To use this function, you should connect the router’s console port and your PC’s serial port with the supplied serial cable.
- Page 34 Page - 34 - You can capture the log message into a file: From the menu, choose “Transfer” ”capture text” Input the log file name and press “start” button, the output message are now stored in the log file. When the messages are captured, you can stop capturing: From the menu, choose “Transfer””capture text””stop”...
-
Page 35: Misc
Page - 35 - With this option enabled the log data will be sent to an external server. You can use an external program similar to tftpd32, to capture the modem log data. Misc The default Datamax web interface listens on port 80. To change the default port, configure the “web config port”... -
Page 36: L2Tp Client
Page - 36 - L2TP Client Enable L2TP Client Enable or disable L2TP Client function L2TP Server IP (LNS) The L2TP server’s IP Address Local Tunnel IP The local tunnel IP Address. “Auto” allocates the local tunnel IP address from the PPTP Server dynamically. -
Page 37: Dynamic Dns
Page - 37 - Dynamic DNS Dynamic DNS is a method/protocol/network service that provides the capability for a networked device, such as a router or computer system using the Internet Protocol Suite, to notify a Domain Name System (DNS) name server to change, in real time, the active DNS configuration of its configured hostnames, addresses or other information... - Page 38 Page - 38 - To use this feature your carrier must provide you with a public dynamic IP address. You will also need to sign up with a DynamicDNS service provider. Every time the router connects to the network, it will update its Dynamic DNS host configuration as per the supplied settings.
-
Page 39: Serial Settings
Page - 39 - Serial Settings The console port on the Datamax is normally used for router debugging. The console port can also be used as a standard serial port. The data sent via the serial port is encapsulated by a TCP/IP protocol stack prior to being sent to the destination server. -
Page 40: Gps Settings
Page - 40 - Heartbeat The time interval to send heart beat packet. Valid only Interval when you choose UDP(DTU) or TCP(DTU) protocol . GPS Settings Enable GPS Enable or disable GPS function GPS Output You can send GPS data to the Network or the serial Interface interface GPS Center... - Page 41 Page - 41 -...
