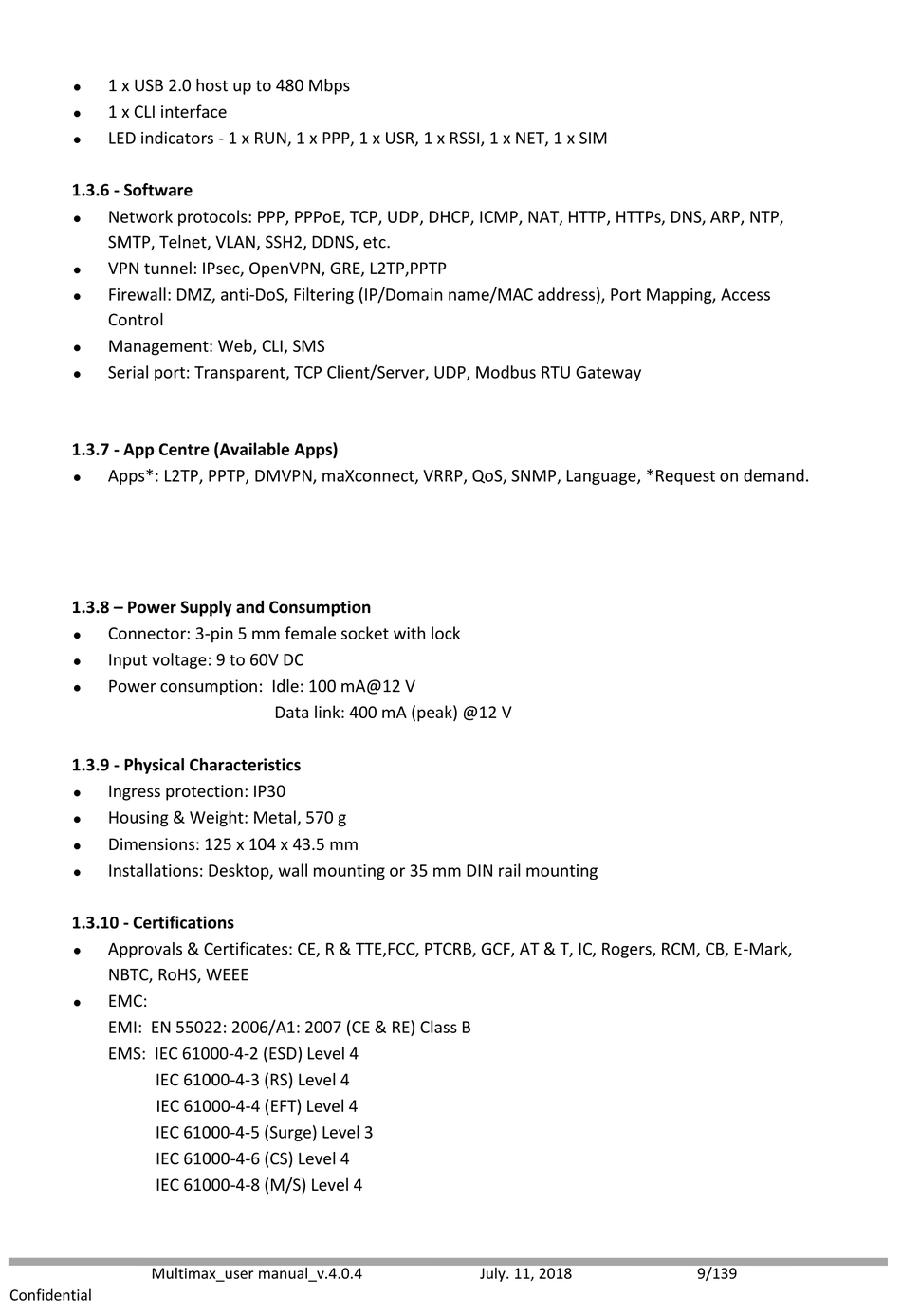

Maxon multimax+ User Manual page 9

1 x USB 2.0 host up to 480 Mbps

1 x CLI interface

LED indicators - 1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET, 1 x SIM

1.3.6 - Software
Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP,

SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnel: IPsec, OpenVPN, GRE, L2TP,PPTP

Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access

Control
Management: Web, CLI, SMS

Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway

1.3.7 - App Centre (Available Apps)
Apps*: L2TP, PPTP, DMVPN, maXconnect, VRRP, QoS, SNMP, Language, *Request on demand.

1.3.8 – Power Supply and Consumption
Connector: 3-pin 5 mm female socket with lock

Input voltage: 9 to 60V DC

Power consumption: Idle: 100 mA@12 V

1.3.9 - Physical Characteristics
Ingress protection: IP30

Housing & Weight: Metal, 570 g

Dimensions: 125 x 104 x 43.5 mm

Installations: Desktop, wall mounting or 35 mm DIN rail mounting

1.3.10 - Certifications
Approvals & Certificates: CE, R & TTE,FCC, PTCRB, GCF, AT & T, IC, Rogers, RCM, CB, E-Mark,

NBTC, RoHS, WEEE
EMC:

EMI: EN 55022: 2006/A1: 2007 (CE & RE) Class B
EMS: IEC 61000-4-2 (ESD) Level 4
IEC 61000-4-3 (RS) Level 4
IEC 61000-4-4 (EFT) Level 4
IEC 61000-4-5 (Surge) Level 3
IEC 61000-4-6 (CS) Level 4
IEC 61000-4-8 (M/S) Level 4
Multimax_user manual_v.4.0.4
Confidential
Data link: 400 mA (peak) @12 V
