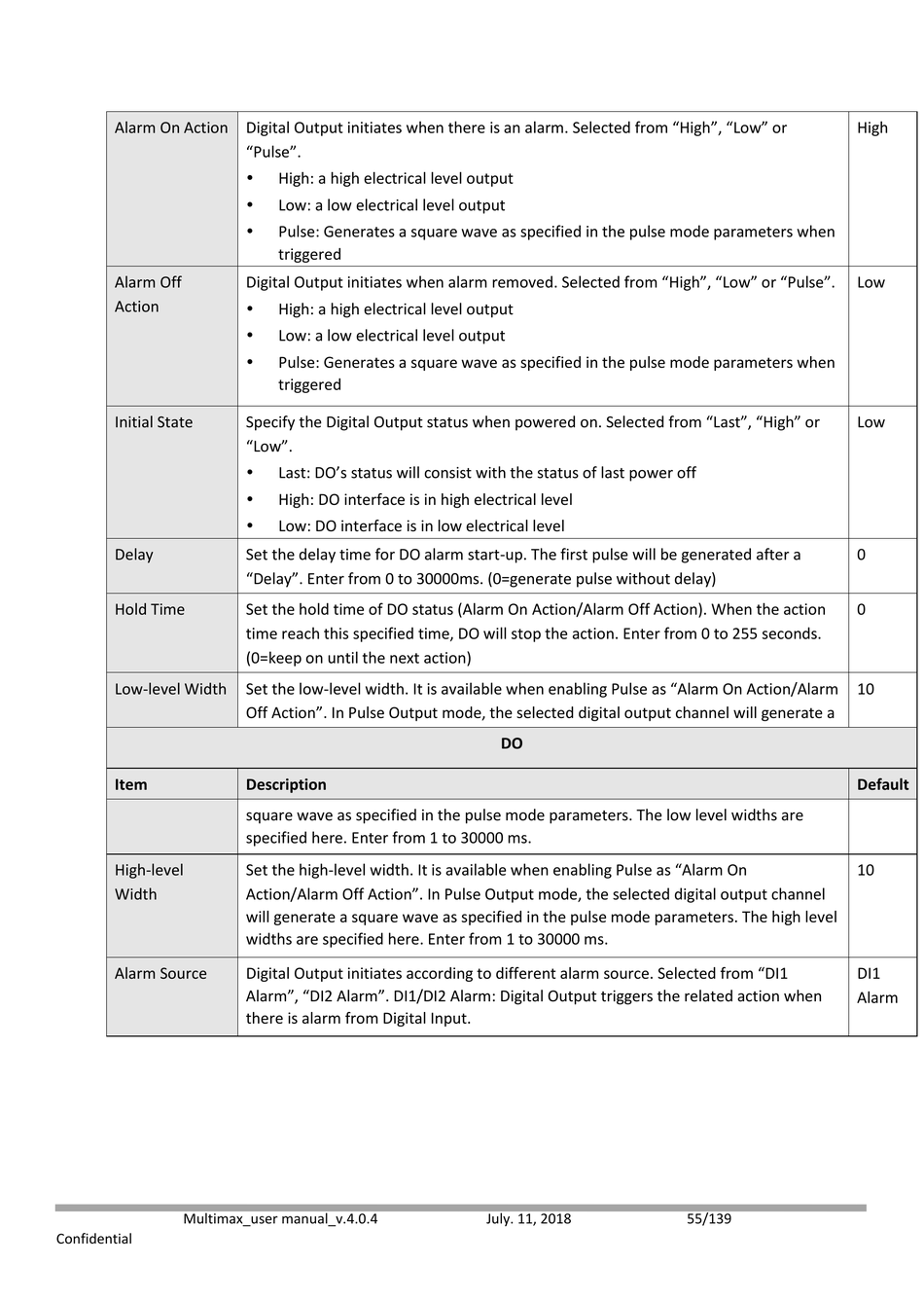

Maxon multimax+ User Manual page 55

Alarm On Action Digital Output initiates when there is an alarm. Selected from "High", "Low" or
Alarm Off
Action
Initial State
Delay
Hold Time
Low-level Width
Item
High-level
Width
Alarm Source
Multimax_user manual_v.4.0.4
Confidential
"Pulse".

High: a high electrical level output

Low: a low electrical level output

Pulse: Generates a square wave as specified in the pulse mode parameters when
triggered
Digital Output initiates when alarm removed. Selected from "High", "Low" or "Pulse".

High: a high electrical level output

Low: a low electrical level output

Pulse: Generates a square wave as specified in the pulse mode parameters when
triggered
Specify the Digital Output status when powered on. Selected from "Last", "High" or
"Low".

Last: DO's status will consist with the status of last power off

High: DO interface is in high electrical level

Low: DO interface is in low electrical level
Set the delay time for DO alarm start-up. The first pulse will be generated after a
"Delay". Enter from 0 to 30000ms. (0=generate pulse without delay)
Set the hold time of DO status (Alarm On Action/Alarm Off Action). When the action
time reach this specified time, DO will stop the action. Enter from 0 to 255 seconds.
(0=keep on until the next action)
Set the low-level width. It is available when enabling Pulse as "Alarm On Action/Alarm
Off Action". In Pulse Output mode, the selected digital output channel will generate a
Description
square wave as specified in the pulse mode parameters. The low level widths are
specified here. Enter from 1 to 30000 ms.
Set the high-level width. It is available when enabling Pulse as "Alarm On
Action/Alarm Off Action". In Pulse Output mode, the selected digital output channel
will generate a square wave as specified in the pulse mode parameters. The high level
widths are specified here. Enter from 1 to 30000 ms.
Digital Output initiates according to different alarm source. Selected from "DI1
Alarm", "DI2 Alarm". DI1/DI2 Alarm: Digital Output triggers the related action when
there is alarm from Digital Input.
DO
July. 11, 2018
High
Low
Low
0
0
10
Default
10
DI1
Alarm
